Kuumakse al. 2-kanaliga mini helivõimendi
Suurus: 90 * 35 * 108 mm
Kanaleid: 2
Features

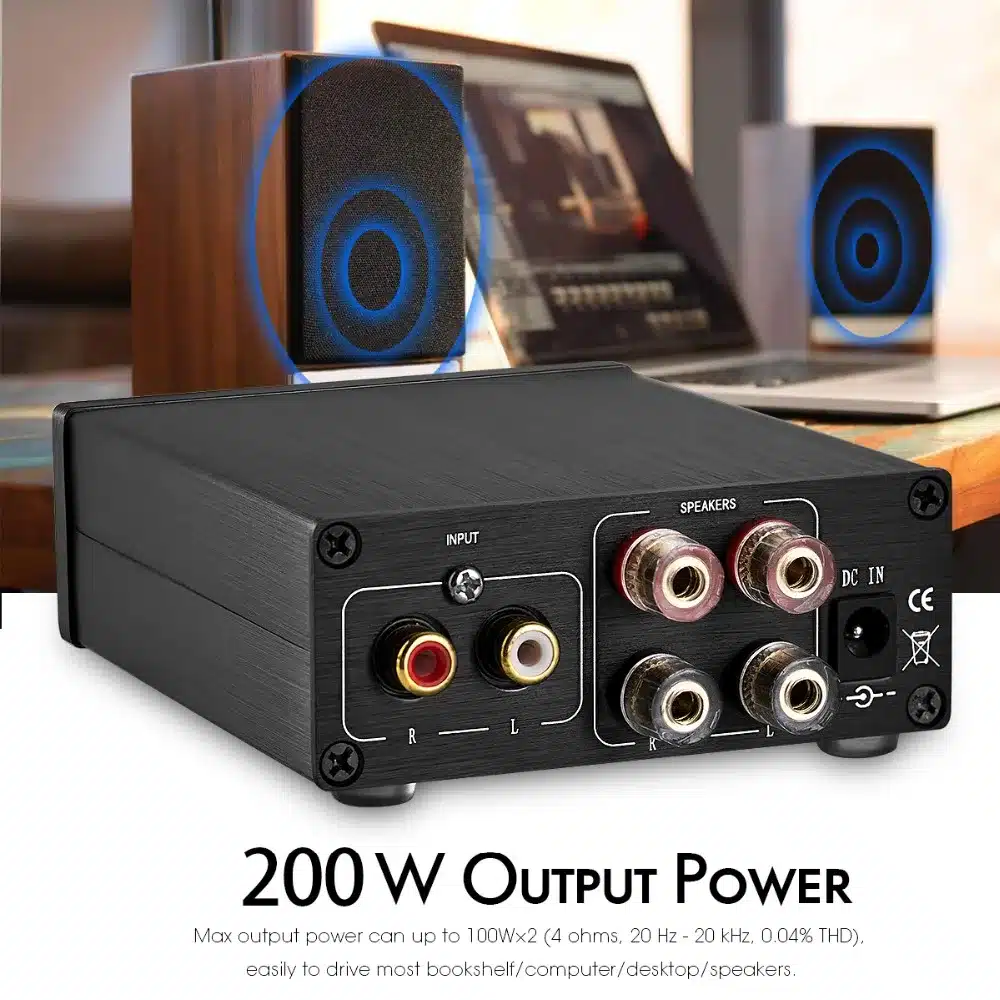

- Adopting dual TPA3116D2 chip and NE5532 op amp, perfect circuit layout and components. Its max output power can up to 100W×2 (4 ohms, 20 Hz – 20 kHz, 0.04% THD), easily to drive most bookshelf/computer/desktop speakers.

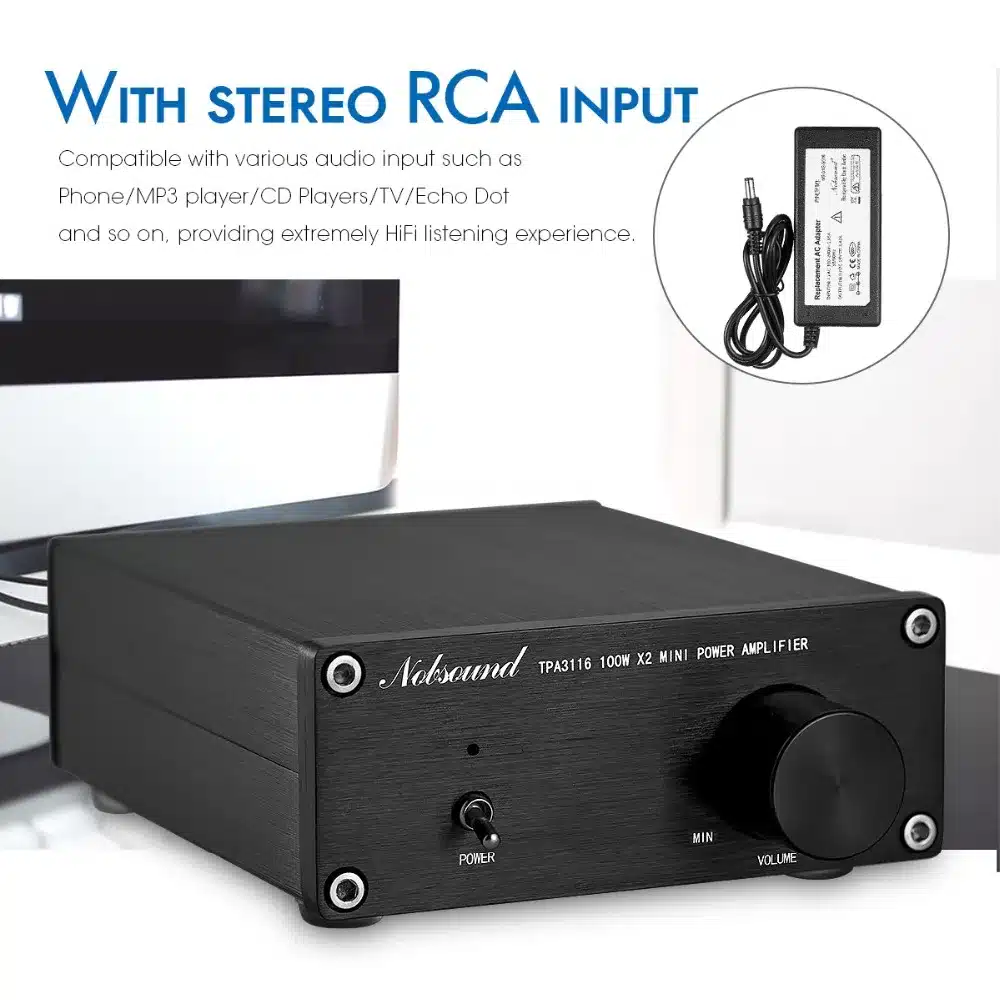

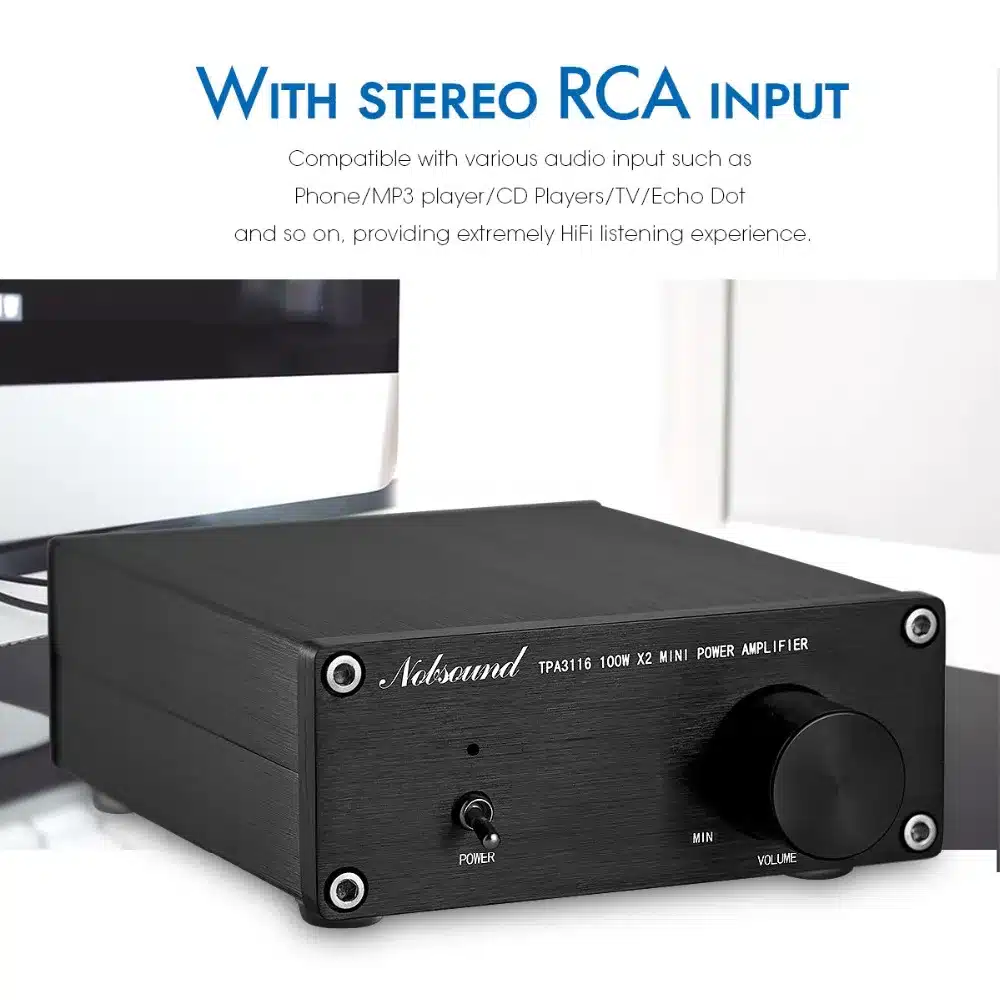

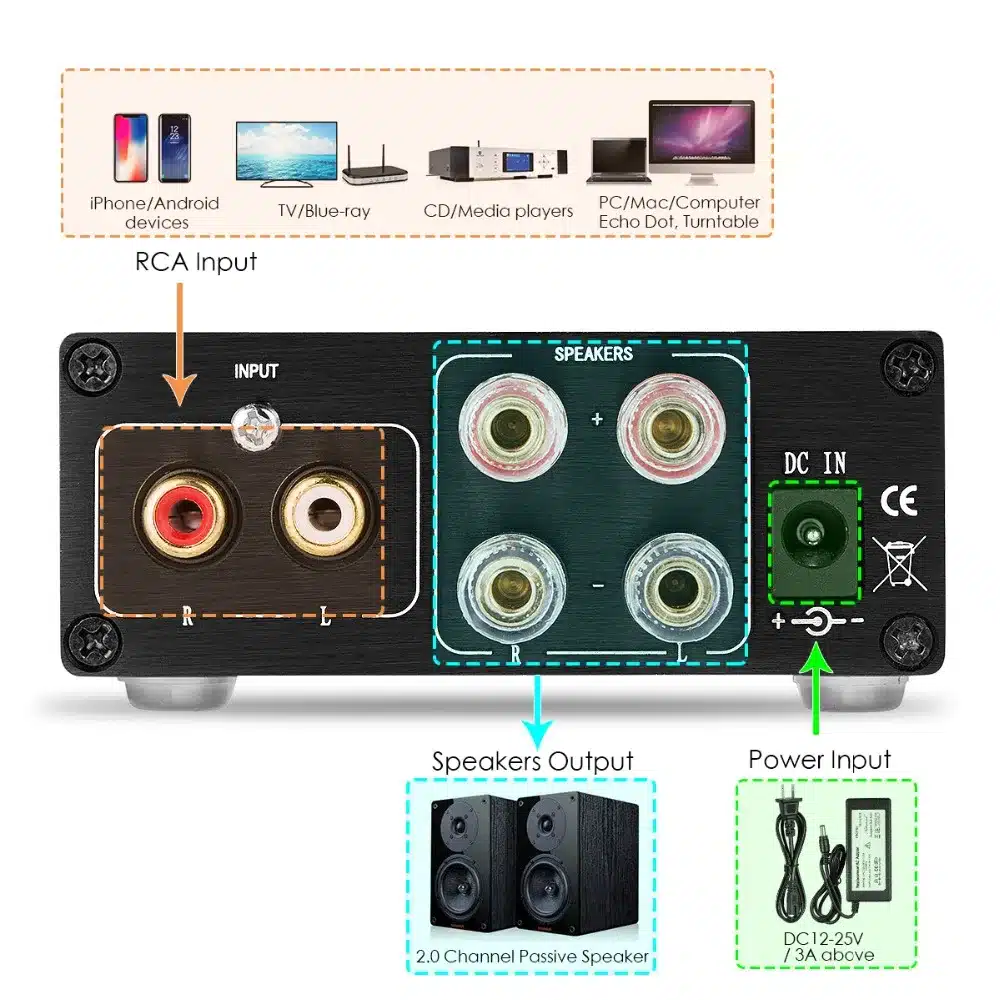

- With stereo RCA input, compatible with various audio input such as Phone/MP3/CD player/TV/Echo Dot, providing extremely HiFi listening experience.

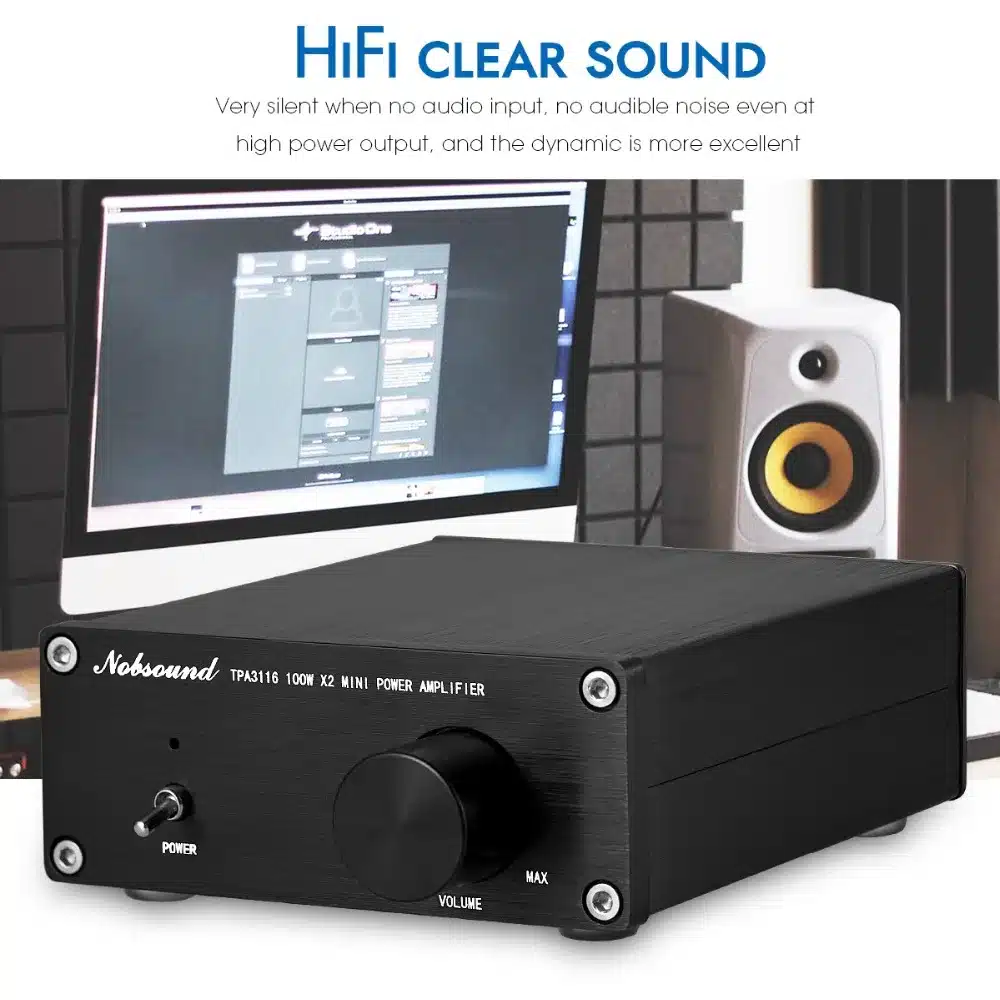

- HiFi clear sound, very silent when no audio input, no audible noise even at high power output, and the dynamic is more excellent.

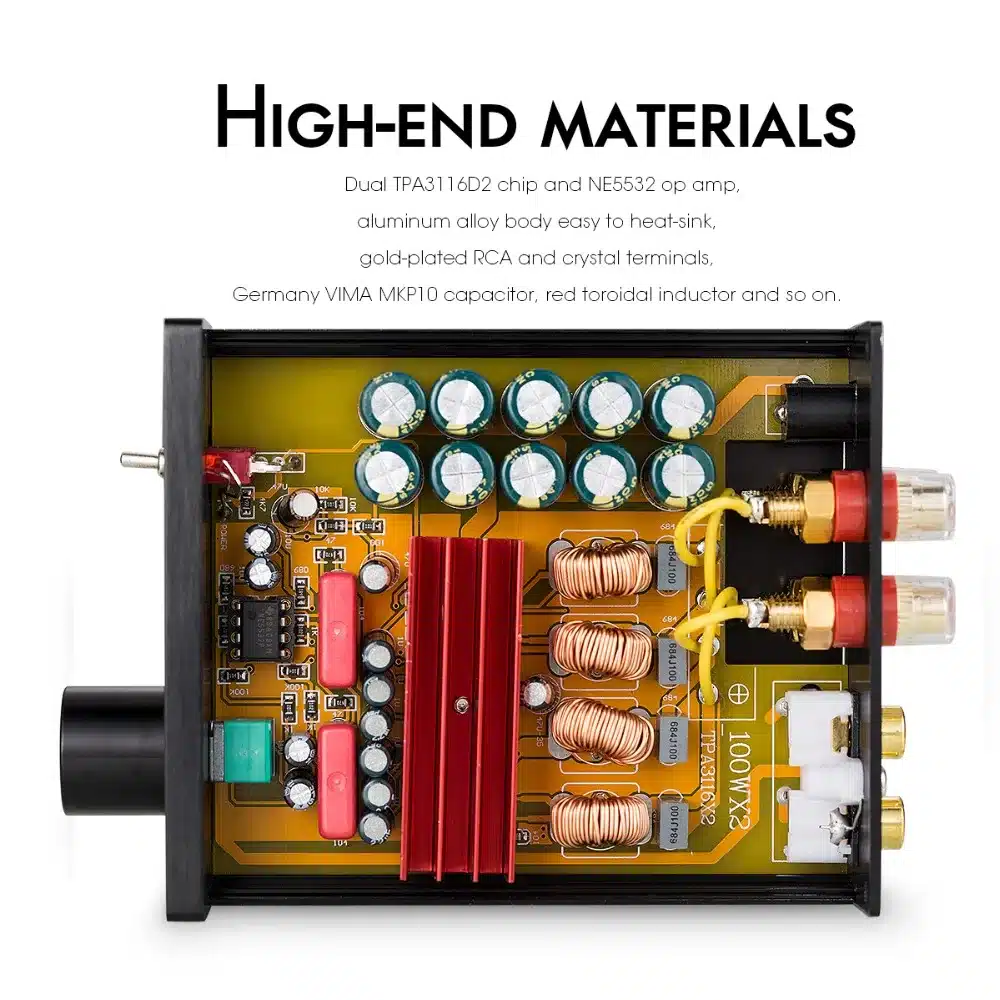

- High-quality materials, such as aluminum alloy chassis, gold-plated RCA and crystal terminal, Germany VIMA MKP10 capacitor, red toroidal inductor and so on.
- Mini size with exquisite appearance, simple compact but practical and powerful, very suitable for home and desktop audio system use.
Parameters
- Brand: Nobsound
- Color: Black
- Chip: TPA3116D2 ×2
- OP-amp: NE5532P
- Max. output power: 100W+100W
- Channel: 2.0
- THD: ≤ 0.5%
- Frequency Range: 20Hz – 20kHz (±1 dB)
- SNR: ≥ 98dB
- Input sensitivity: ≤ 280mV
- Terminating impedance: 2ohm – 8ohm

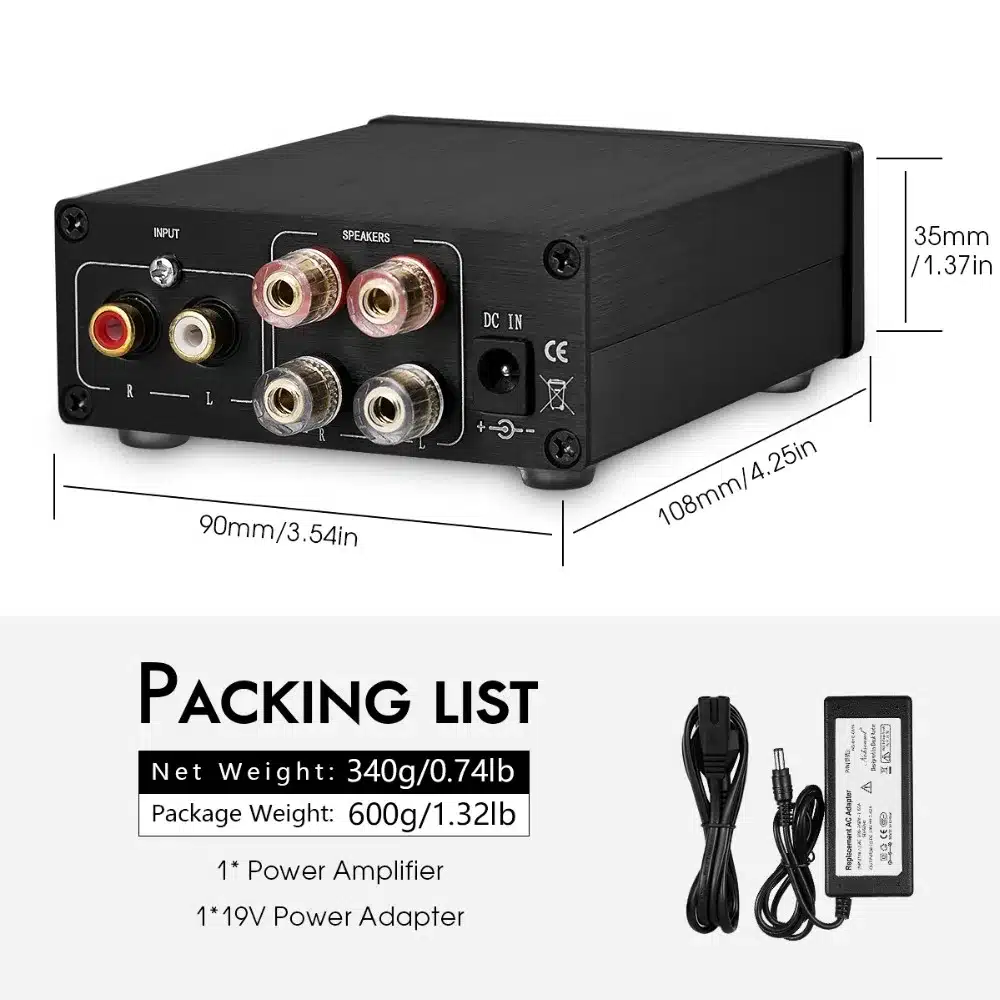

- Chassis size: (W) 90 * (H) 35 * (L) 108 mm
- Net weight: 0.34Kg
- Working voltage: DC 12V-25V
Packing List
- 1× Power Amplifier
- 19V power adapter( Optional )
