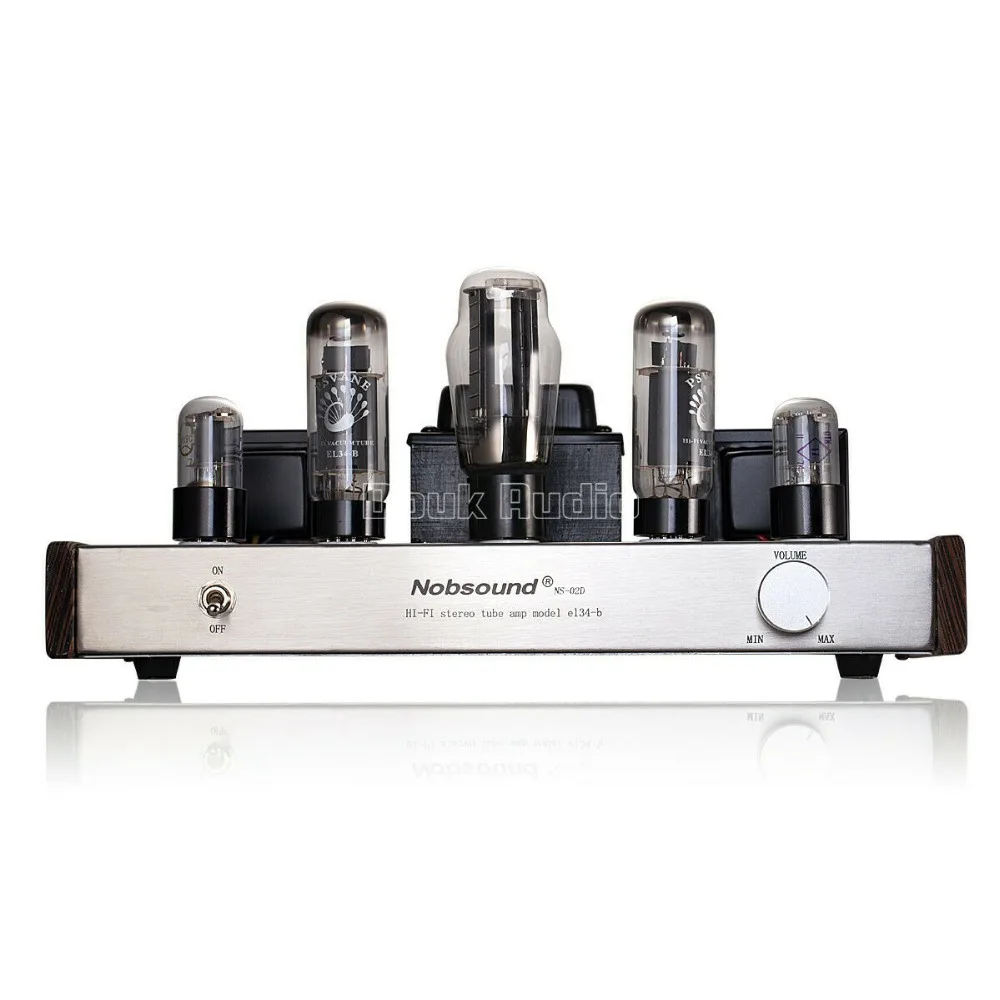

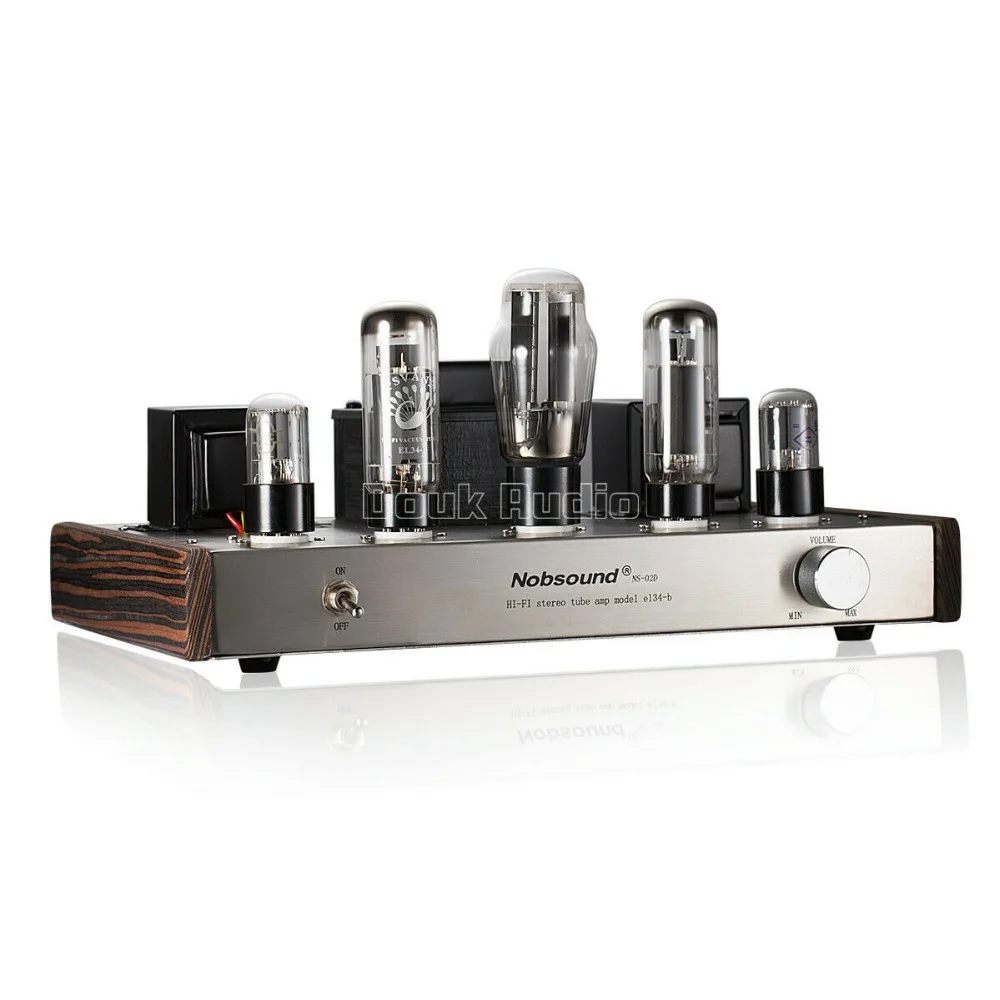

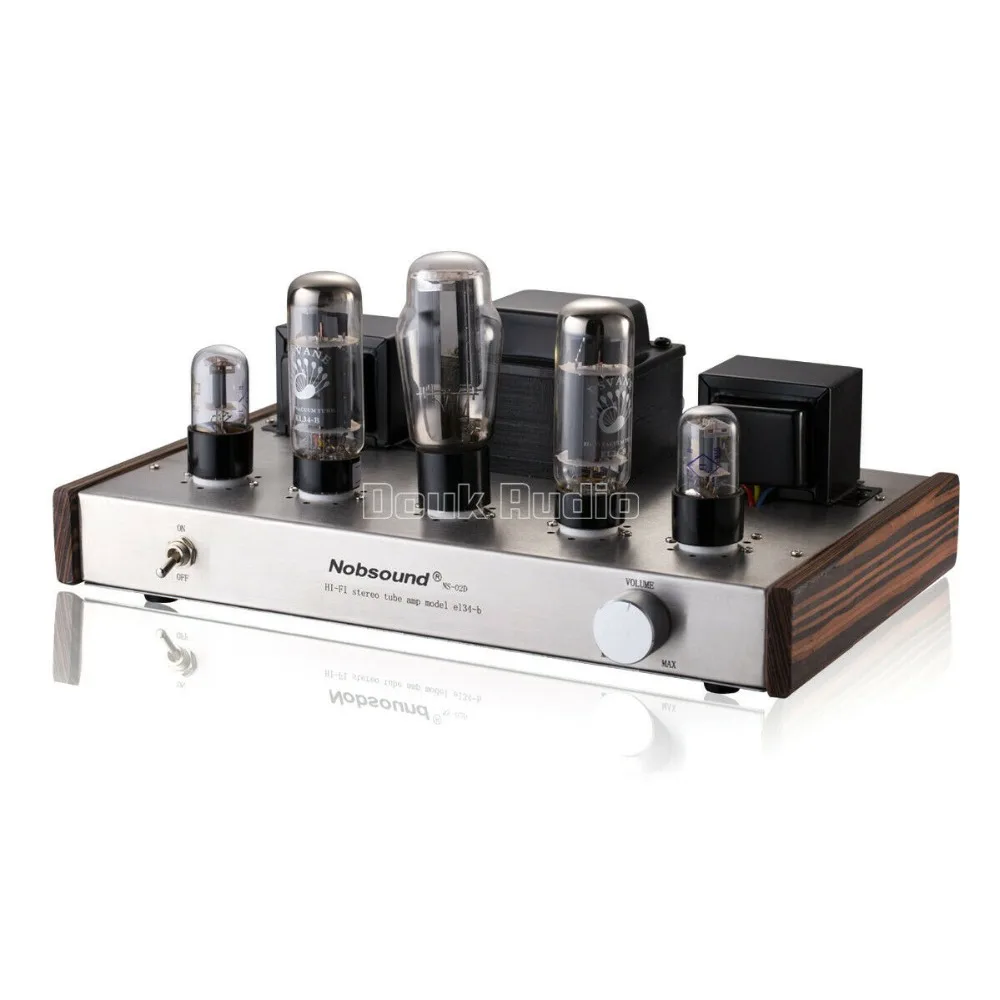

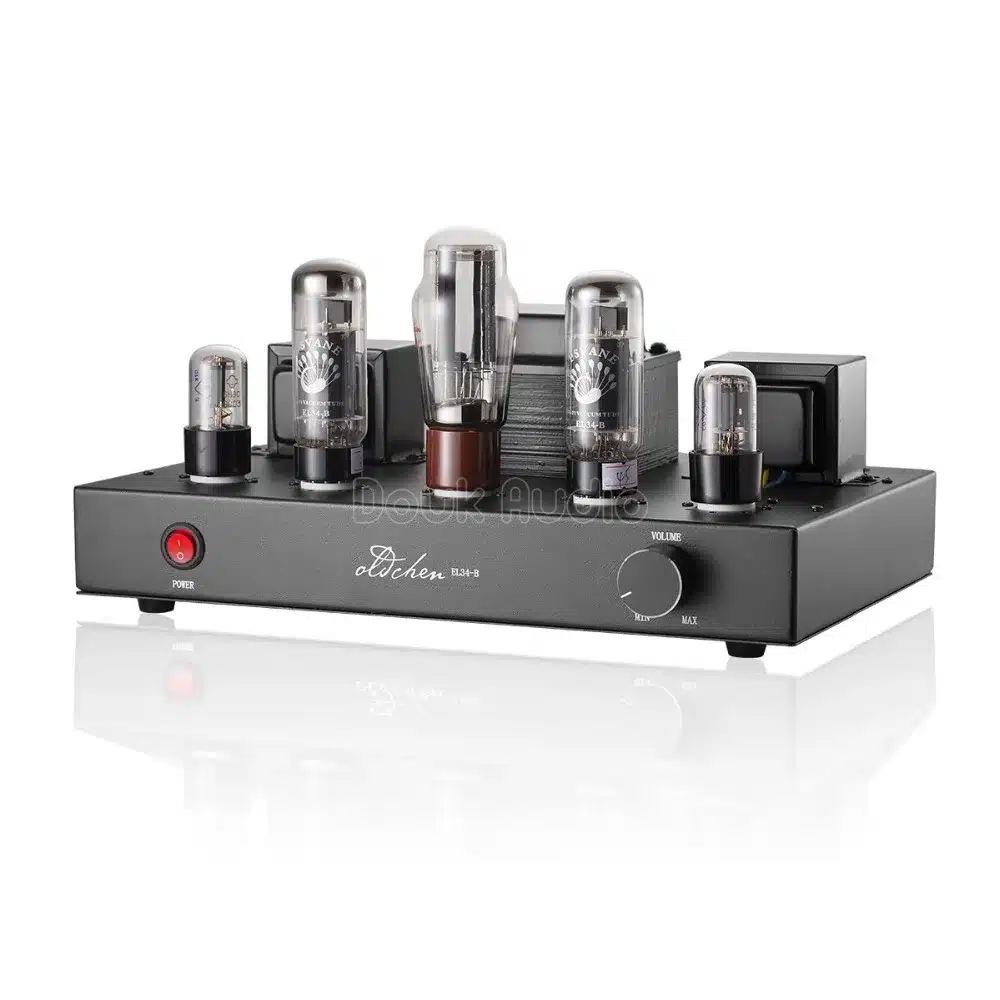

A-klassi stereoheli HI-FI võimendi

Võimsus: 115

Suurus: 38 x 16 x 23 cm

Basic technical parameters:

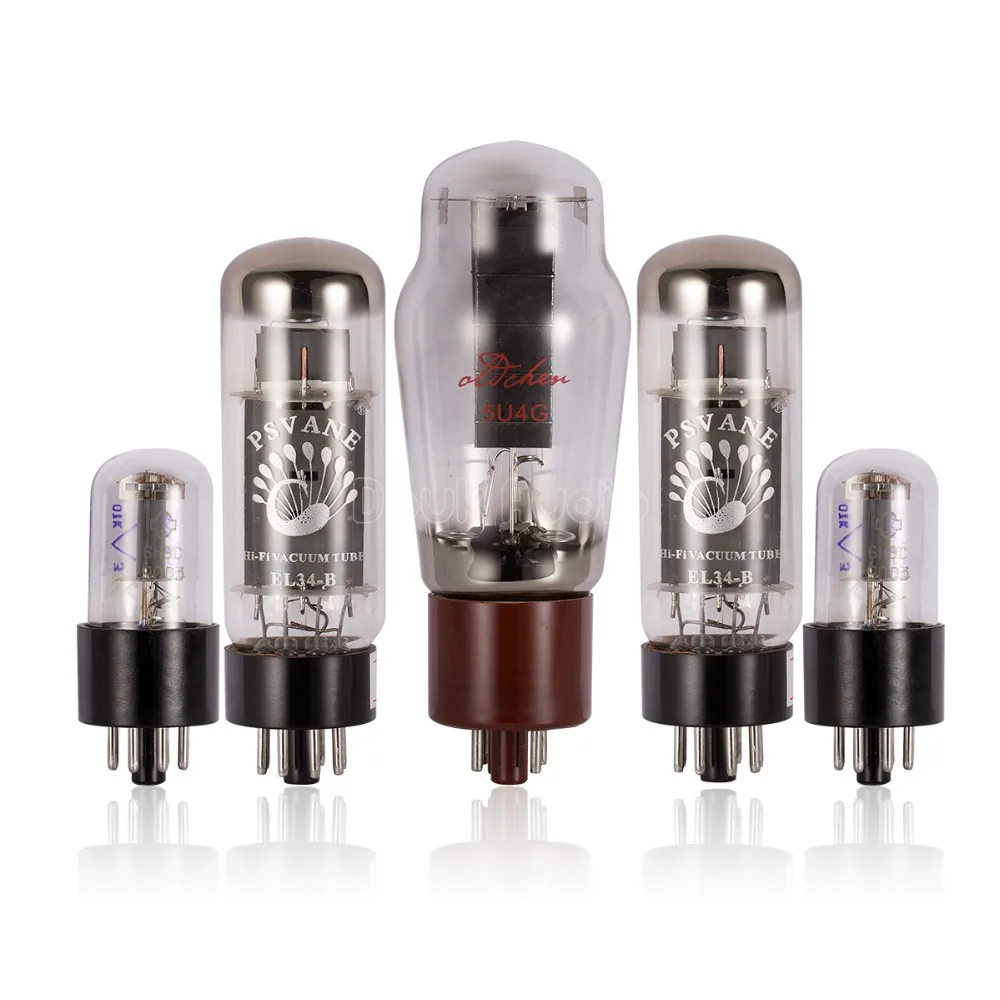

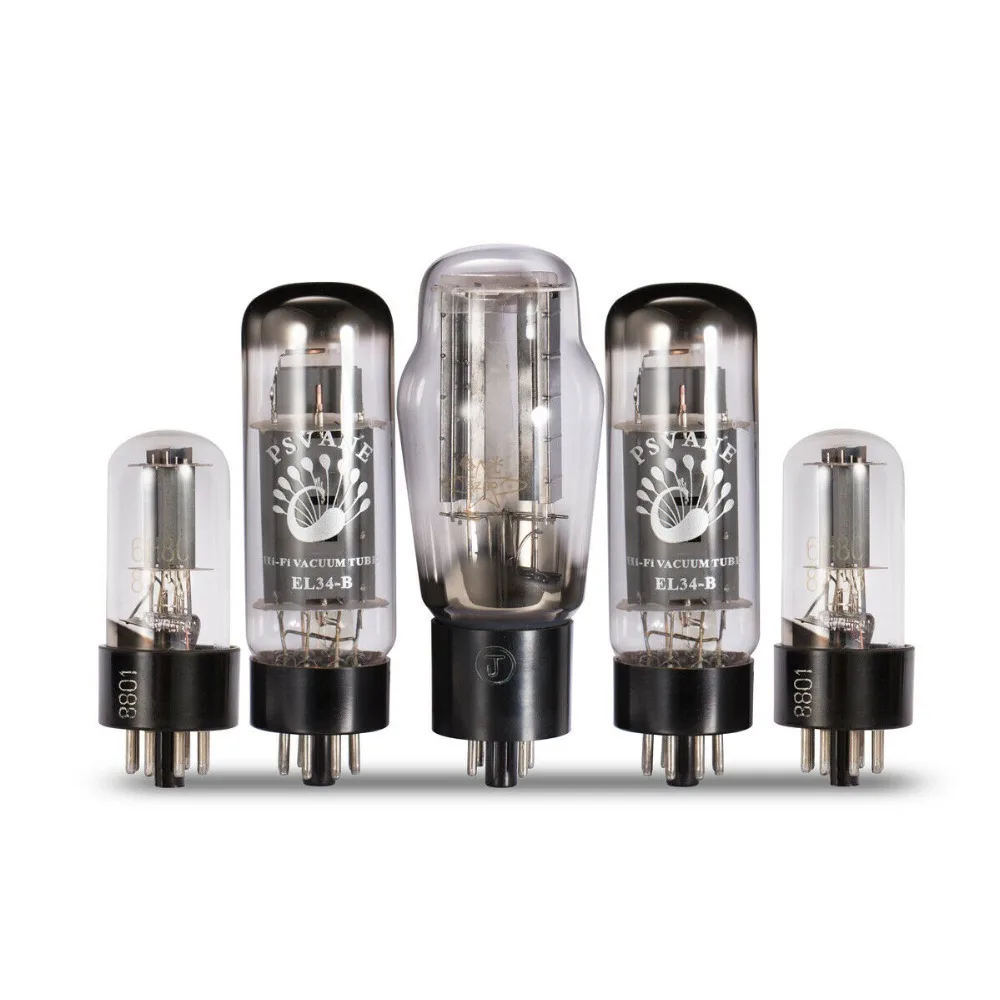

Rectifier : 5Z3P (Class J military level tube)
preamp tubes : 6H8C ×2 (Class J military level tube)
Power tubes : EL34B × 2
Rated output power: triode connected 8Wx2(default), standard connection 12Wx2
Frequency response : 20Hz – 25KHz
Total power consumption: 115W
Output transformer: import Japanese Z11 0.35mm(22×45/50), very important to Provide sufficient power
Total Harmonic Distortion : 1% (1kHz)
Input Sensitivity : 500mV – 2000mV
Input impedance : 100KΩ

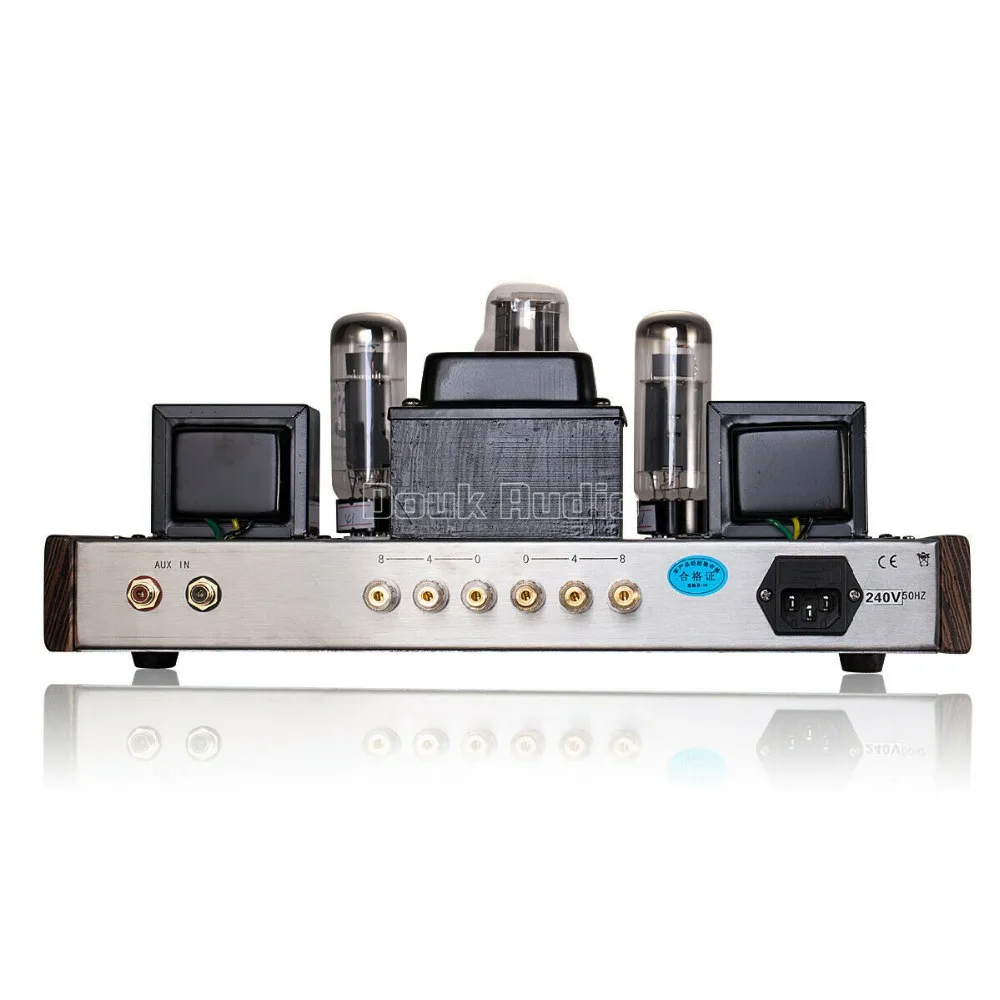

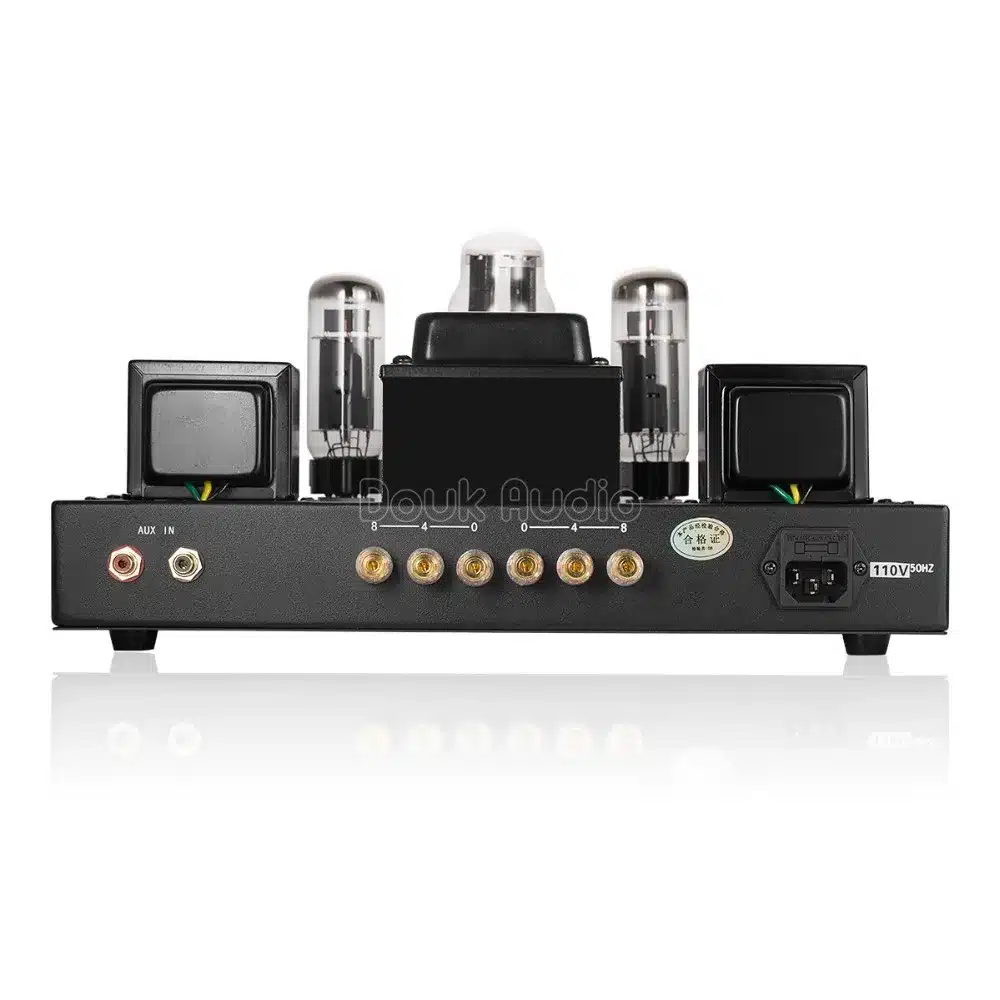

Output Impedance : 4Ω, 8Ω, suit for about 10-100w 88db(>=) speakers
SNR : 88dB
Dimensions (W × H × D ): 380 × 160 × 230mm
Weight: about 9Kg
Input Voltage:110-120V、220V-240V/ 50-60Hz (pls mail us for the voltage you want!)

Product technology and materials

All tubes is military level new tube
Rectifier and voltage tube are Seventies Class J military level tube

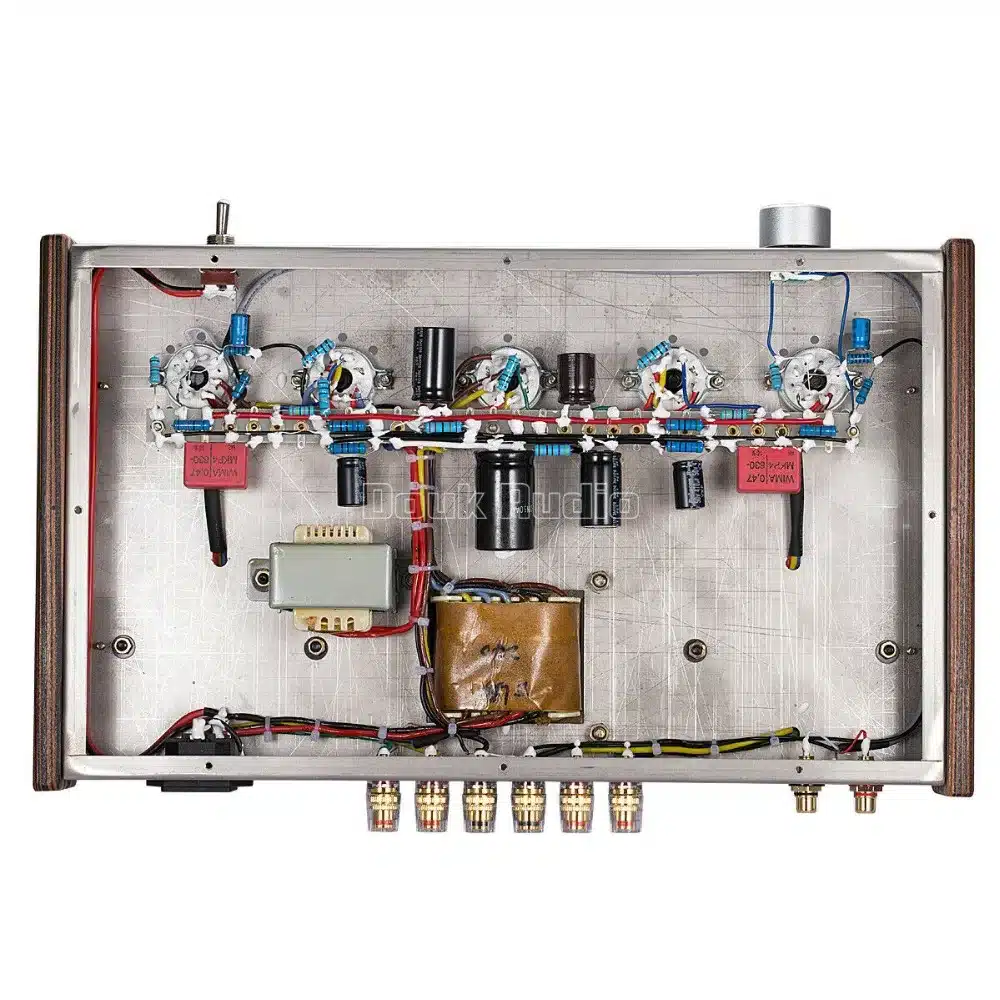

Special HIFI levels capacitors:
German WIMA red grade fever no electrodes capacitance
Cathode capacitance: Philips audio-specific,

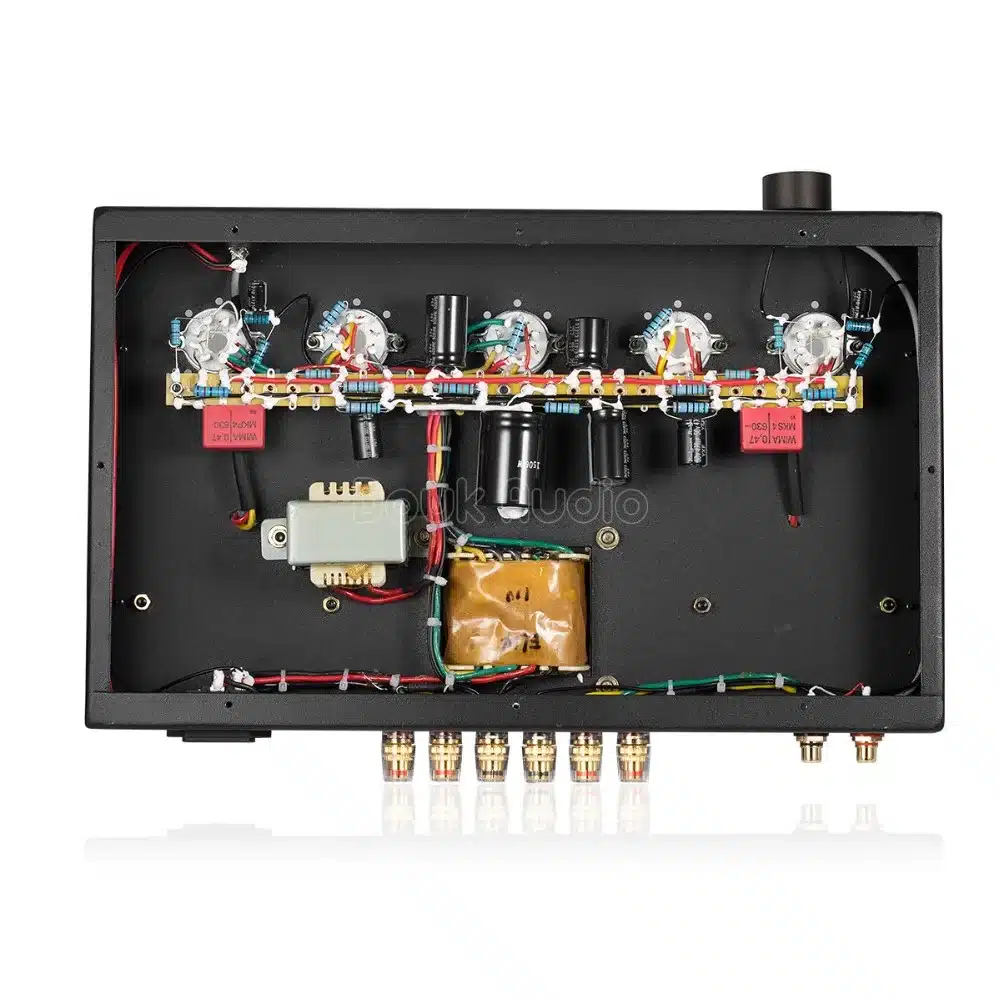

All high-precision metal film resistors rings
CLC filter inductor
Power output transformer is Handmade
Optimized routing and Extremely low noise

Package：

1PC tube amplifier

1PC power cord

She is made by the most famous Chinese brand AIQIN, and it’s the China ‘s best-selling hifi tube amplifier!

Since 2006, it has been sold more than 10,000 copies!

AIQIN is well-known brand in china, this EL34 series is already sold more 10 milles copies, it‘s the most popular tube amps, it’s used for 100w around HIFI Speakers to all music type and special for vocal chords music.

This amps’s development and marketing time has more than 10 years, it has been very mature, has received a lot of suggestions for improvement by hifi buyers, many buyers have been praised .

Real sense of hearing:

Bass is surging strong.

Middle frequency is soft and mellow voice,

High frequency is crisp and clear.

Even used to listen to the POP or dance music can be shocking endless,

Bounce efforts andclear resolution makes the sound never tired.

Thousands of people are full of praise for this amplifier in manufacturer’s site

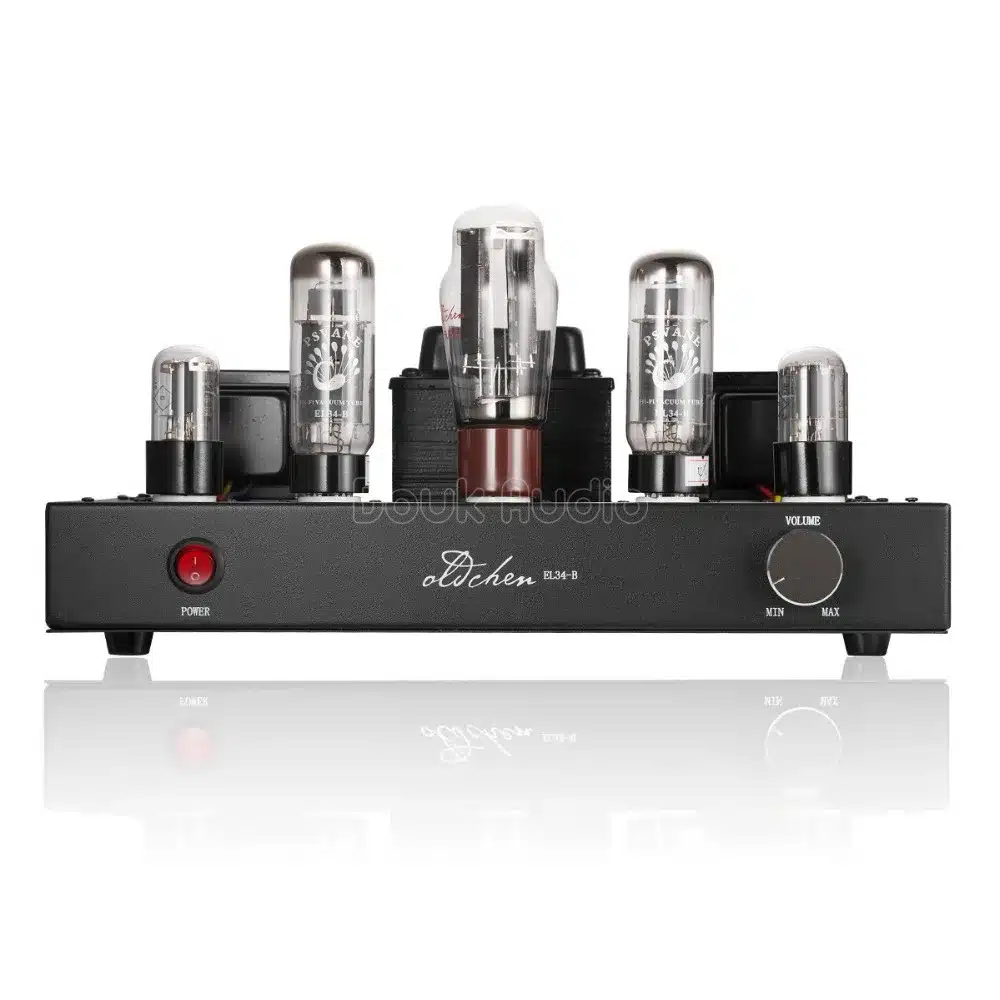

Luxury version use more high level’s HIFI components like:
