D Klassi Võimendi

D klassi võimendi

Tootekood: 32998630000 Kategooria: Audio & video

Turvaline Maksmine

Tasuta Tarne
Soodne Hind

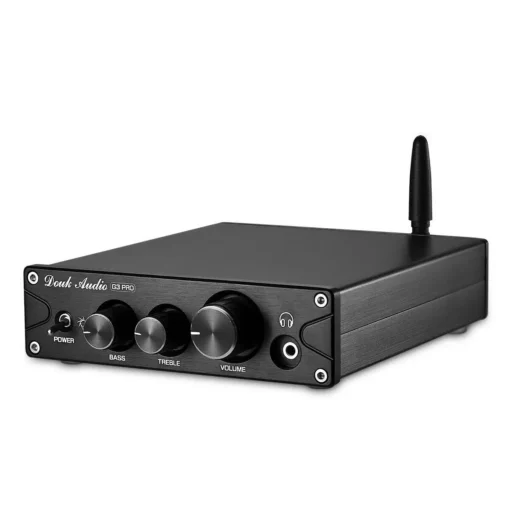

D klassi võimendi

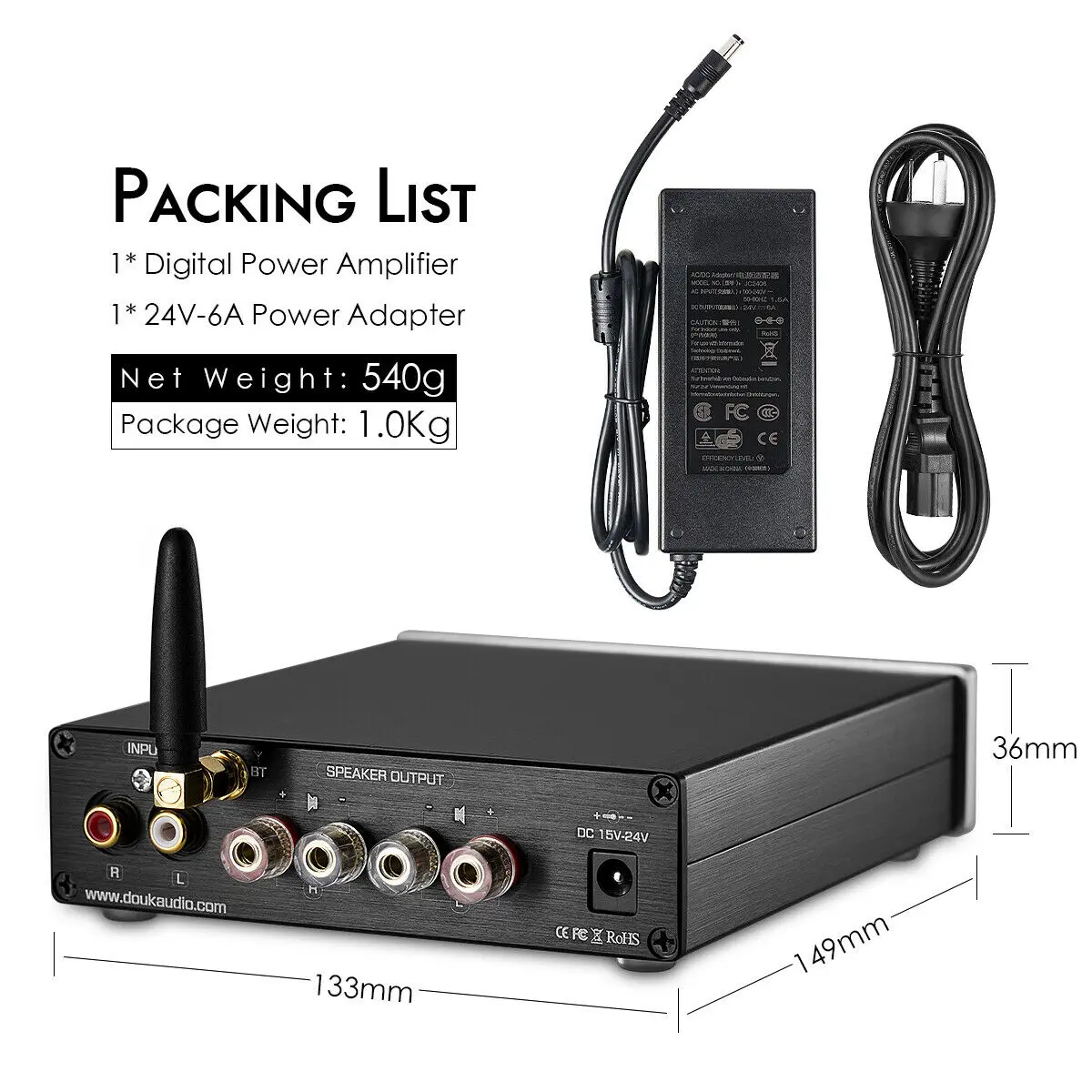

Suurus: 133mm x 36mm x 149mm

Bluetooth: 5.0

Notice: default equipped with 24V@6A power supply, if you want output power more than 144W, please prepare a larger power supply by yourself.

Features

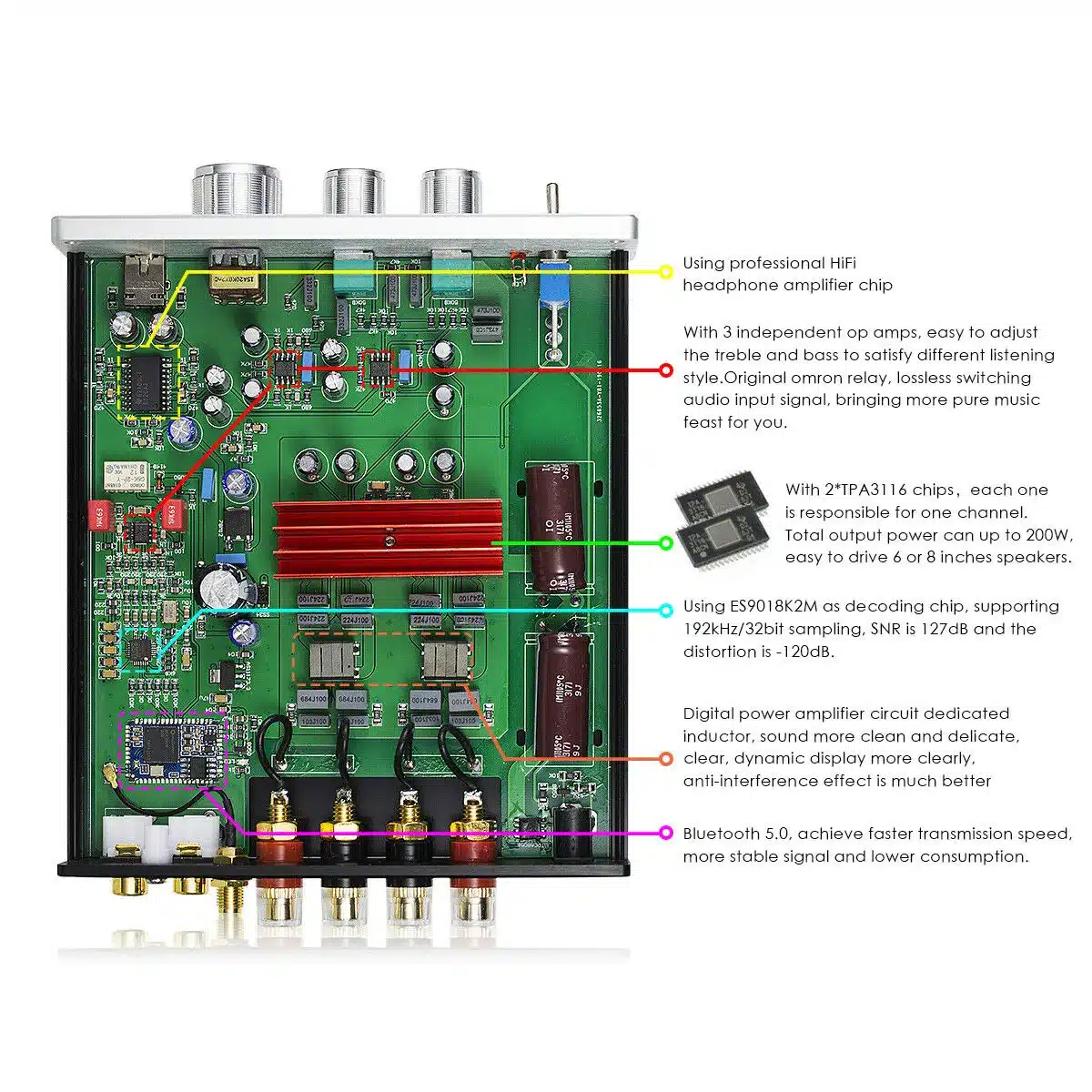

The HI-FI digitizer DAC chip ES9018K2M is used, and supporting 192kHz/32bit sampling, the signal-to-noise ratio is as high as 127dB, and the distortion is lower than -120dB.

Adopting QCC3008 chip, support A2DP, AVRCP, HFP, TWS, AAC, 12S, APTX, APTX-LL, etc., adopt 16M SPI FLASH memory chip.

Equipped with Bluetooth 5.0, achieve faster transmission speed, more stable signal and lower consumption, which has an effective distance of 10 meters and compatible with 99% of mobile phones, computers, tablets and other devices with Bluetooth.

High-end components for audiophile:

With 2*TPA3116 chip, each one responsible for one channel. Total output power can up to 200W, easily to drive 6 or 8 inches speakers.

Digital power amplifier circuit dedicated inductor, sound more clean and delicate, clear, dynamic display more clearly, anti-interference effect is better

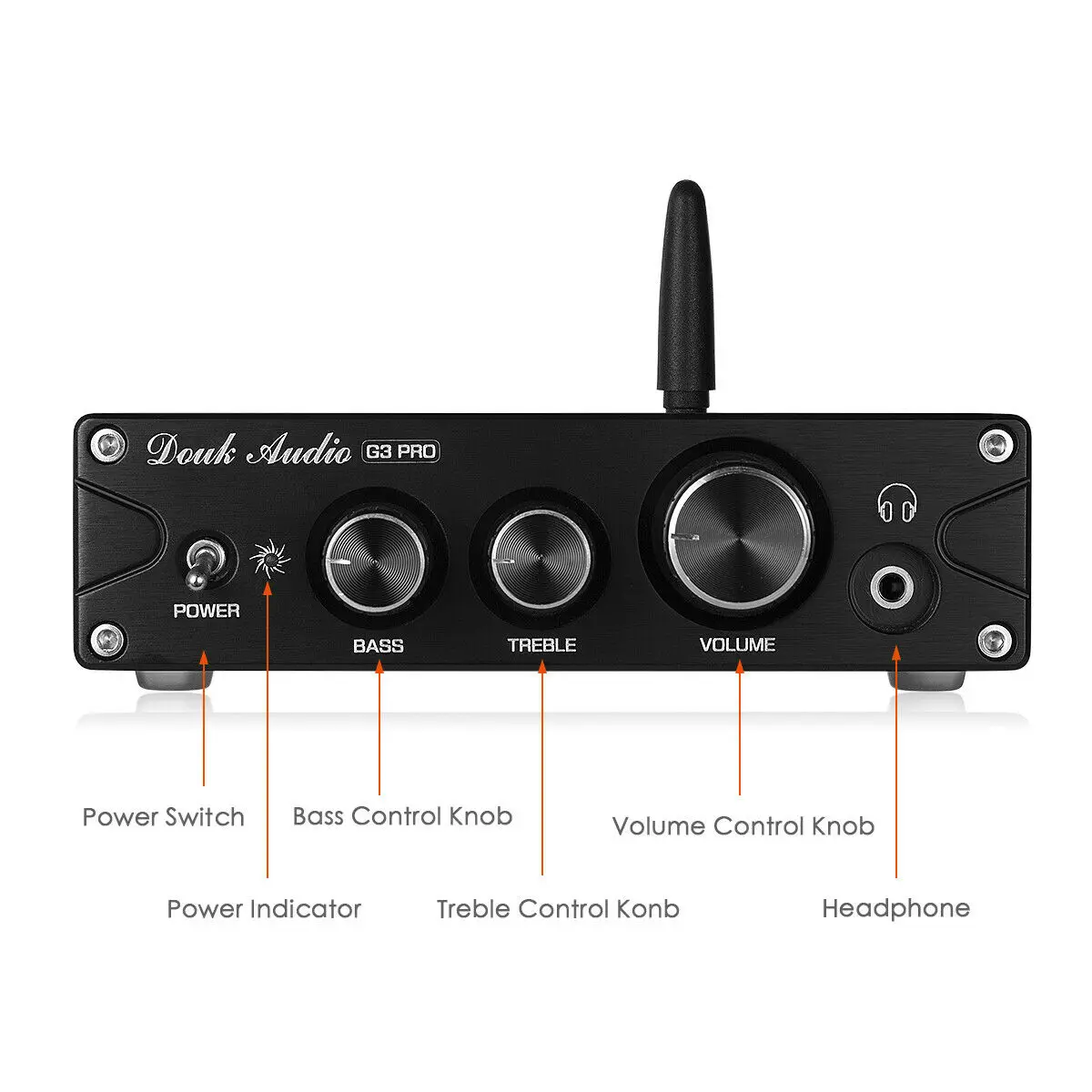

With 3 independent op amps, easy to adjust the treble and bass to satisfy different listening style.

Original Omron relay, lossless switching audio input signal, bringing more pure music feast for you.

Using professional HiFi headphone amplifier chip, bringing you pure clear music without disturbing others.

Safe, reliable and unique design:

Soft start power switch: protect speaker without impact and anti-interference when turn on or off.

High-frequency loop-resistance constant-voltage power supply management system: insert DC power supply without arc sparks, more safe and reliable

Release the residual current when shutting down to protect speakers from impact damage because of power-off or voltage loss.

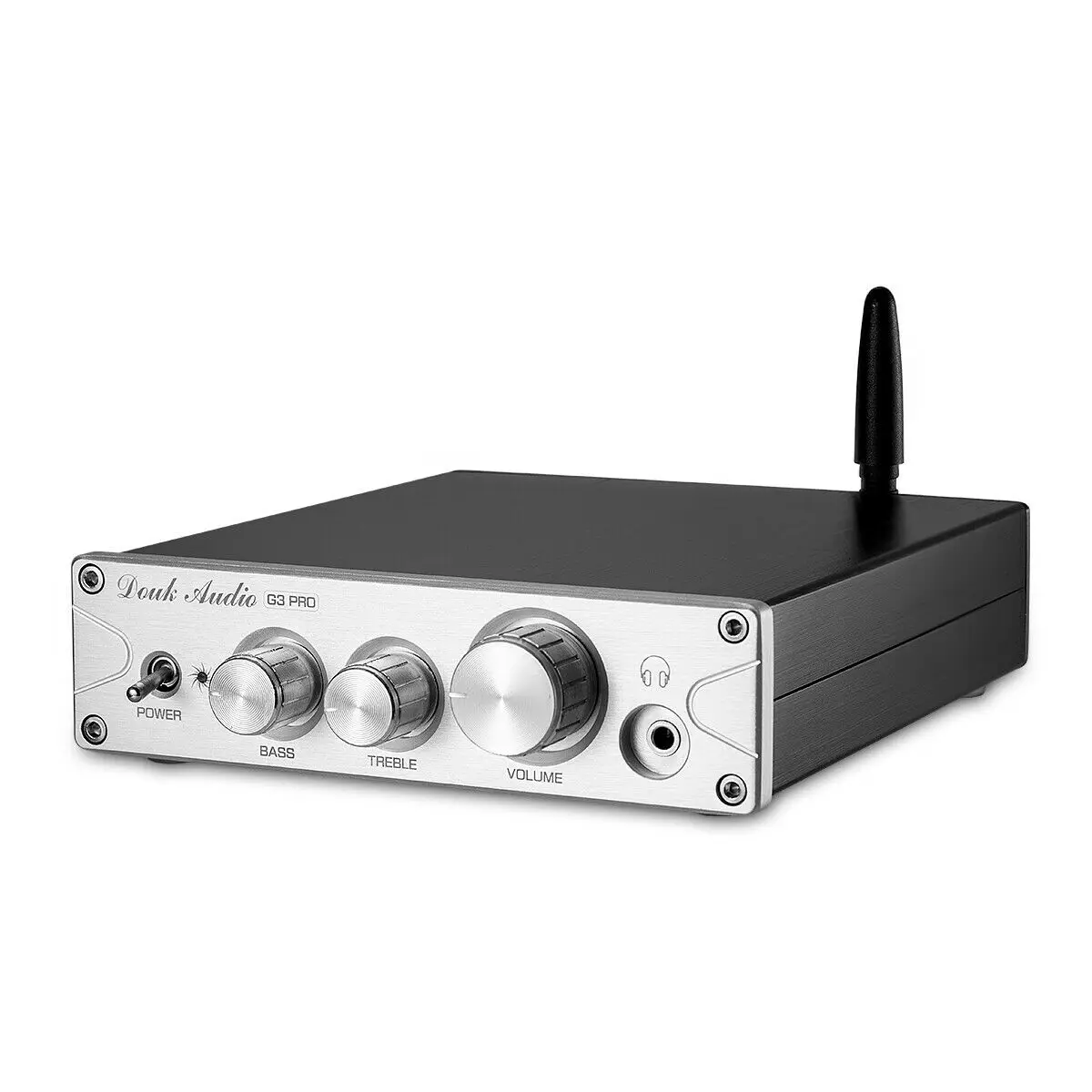

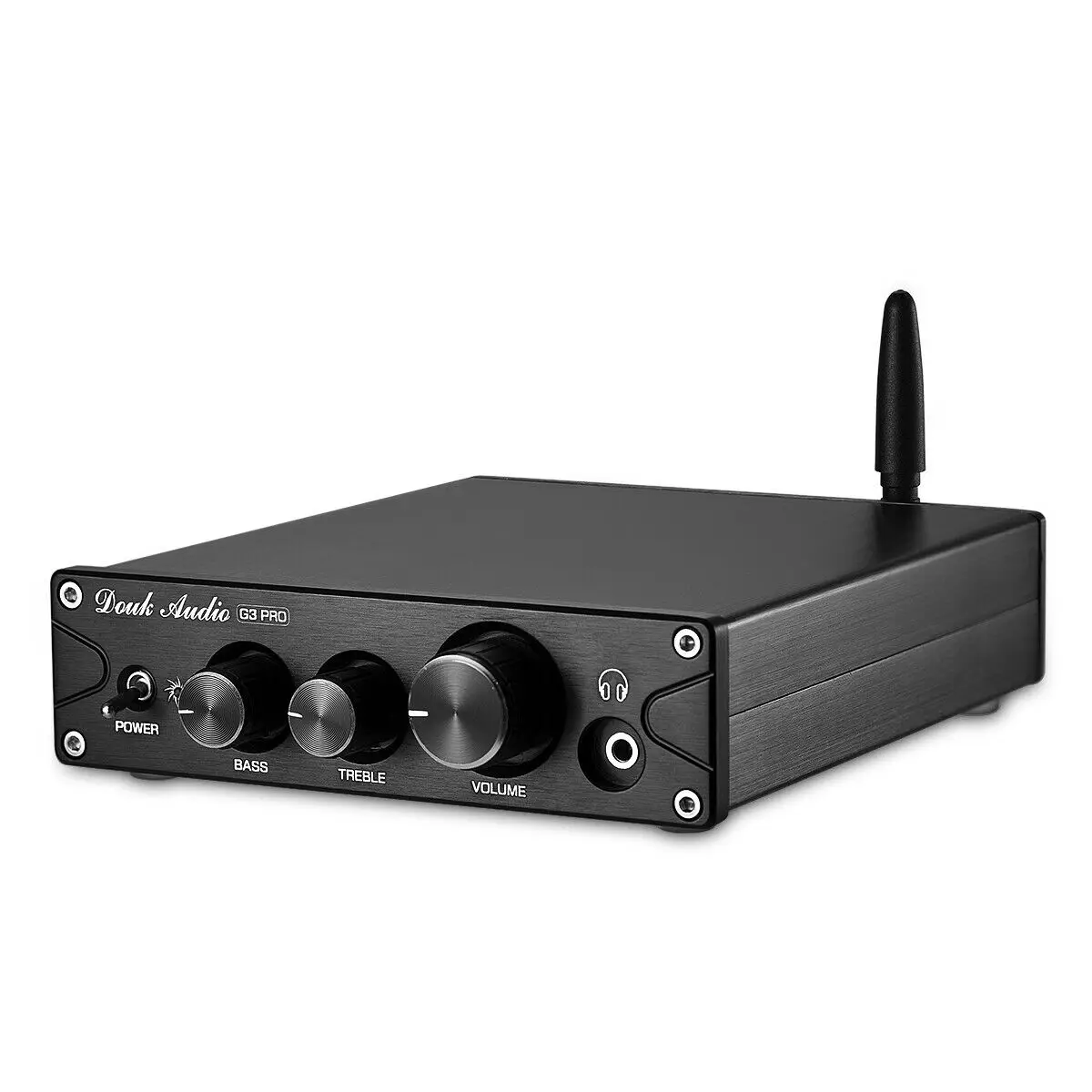

Proper size suits very well for home and desktop use, with elegant appearance, Aluminum shell and simple compact design make it more fashionable, practical and powerful.

Parameters
