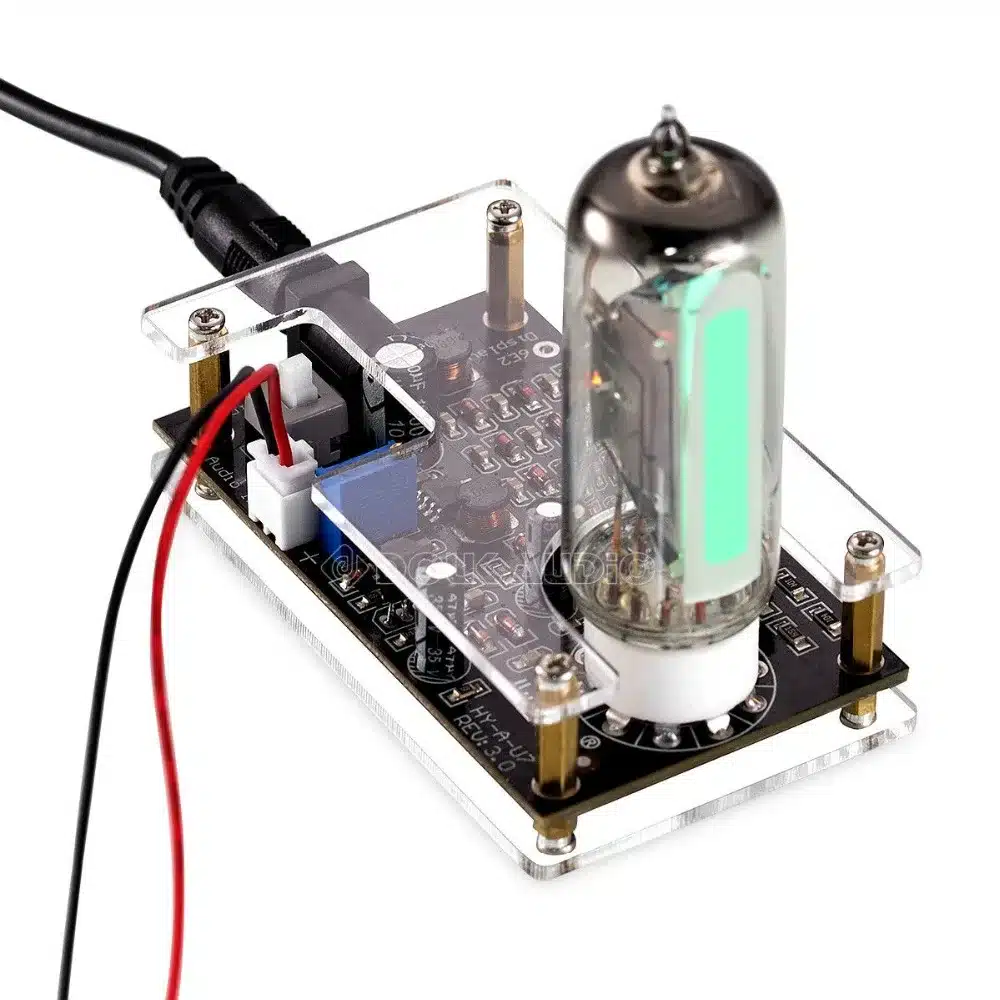

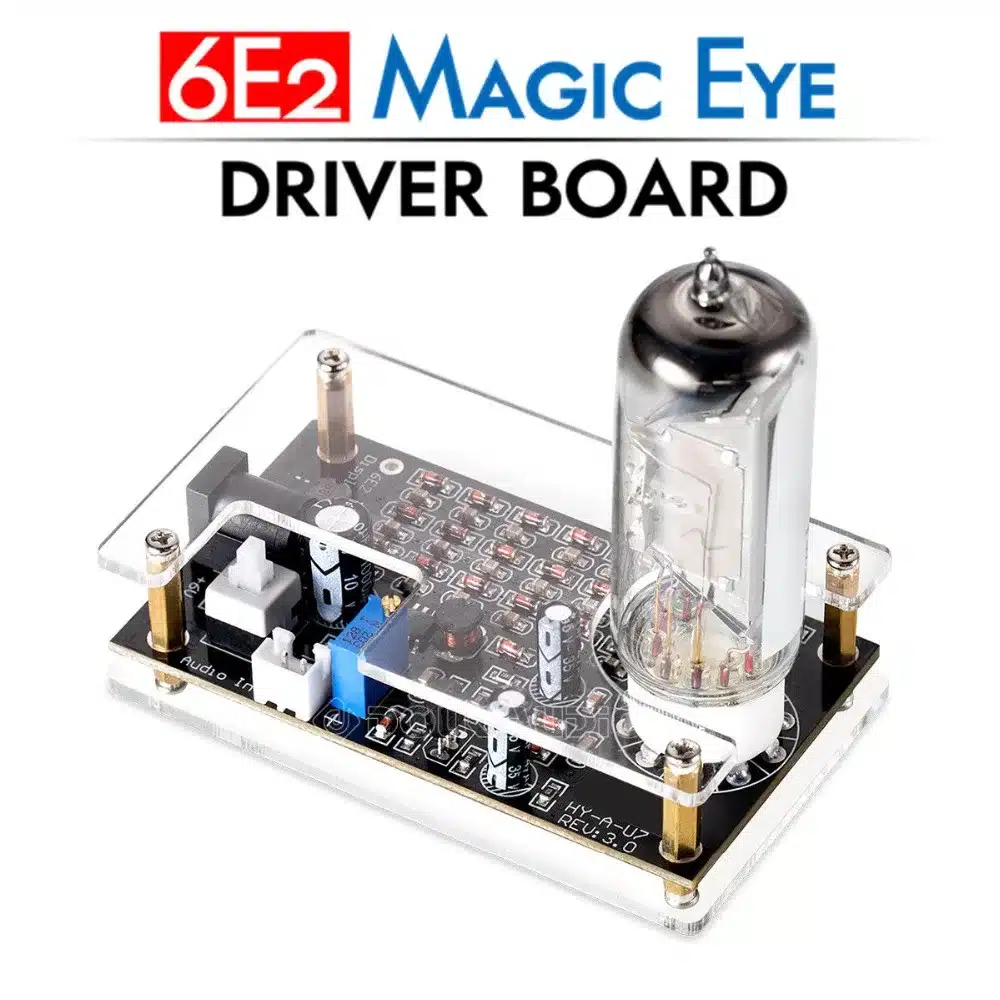

Elvoolutoru helitaseme indikaator
Kanaleid: 2
Suurus: 81mm * 47mm
Features
1. Adopting universal DC power supply mode DC (5V-7V), and can also be directly powered by standard USB 5V, such as mobile phone charger or computer USB interface. Can be regardes as the lowest power consumption among the same kinds of products.
2. Reasonable optimization of PCB size, reduce the chassis space occupied, the wiring is simple and clear.

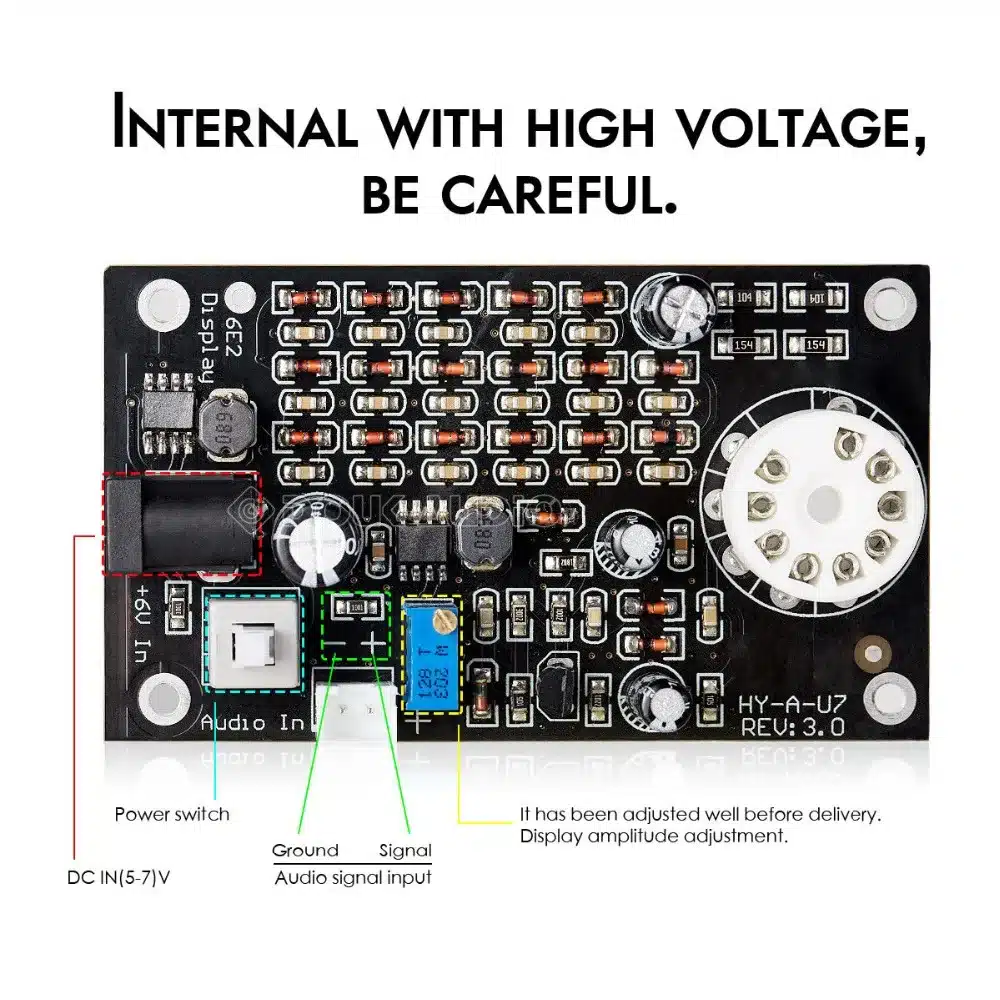

3. The potentiometer is provided with a level display range adjustment, more convenient to adjust it.
4. Built-in secondary signal amplification, higher sensitivity, and adjustable level display.
5. Built-in electronic boost circuit, not use the 250V transformer required for traditional driver board, saving more money and space.
Parameters

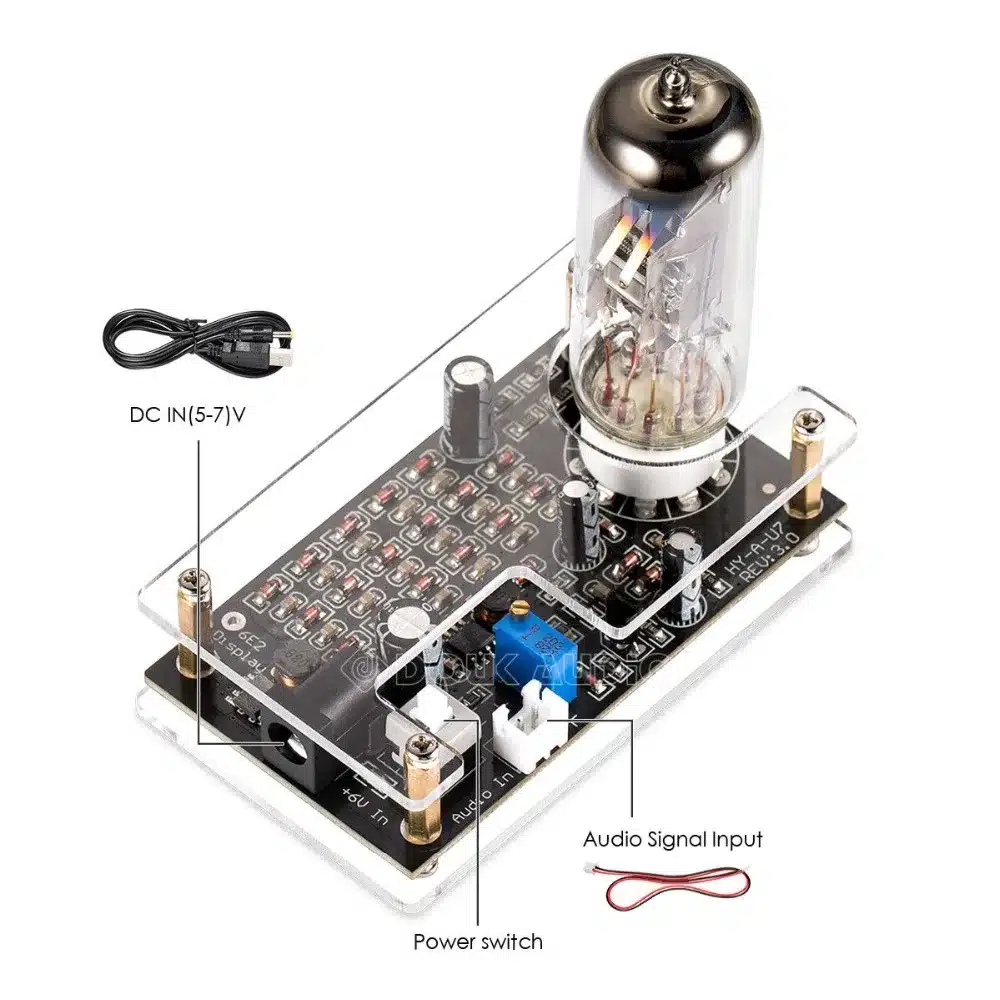

- Operating voltage: DC 5-7V or USB 5V
- Power consumption: ≤3.15W (DC7V) / ≤2.25W (DC5V)
- Size: (L) 81mm * (W) 47mm

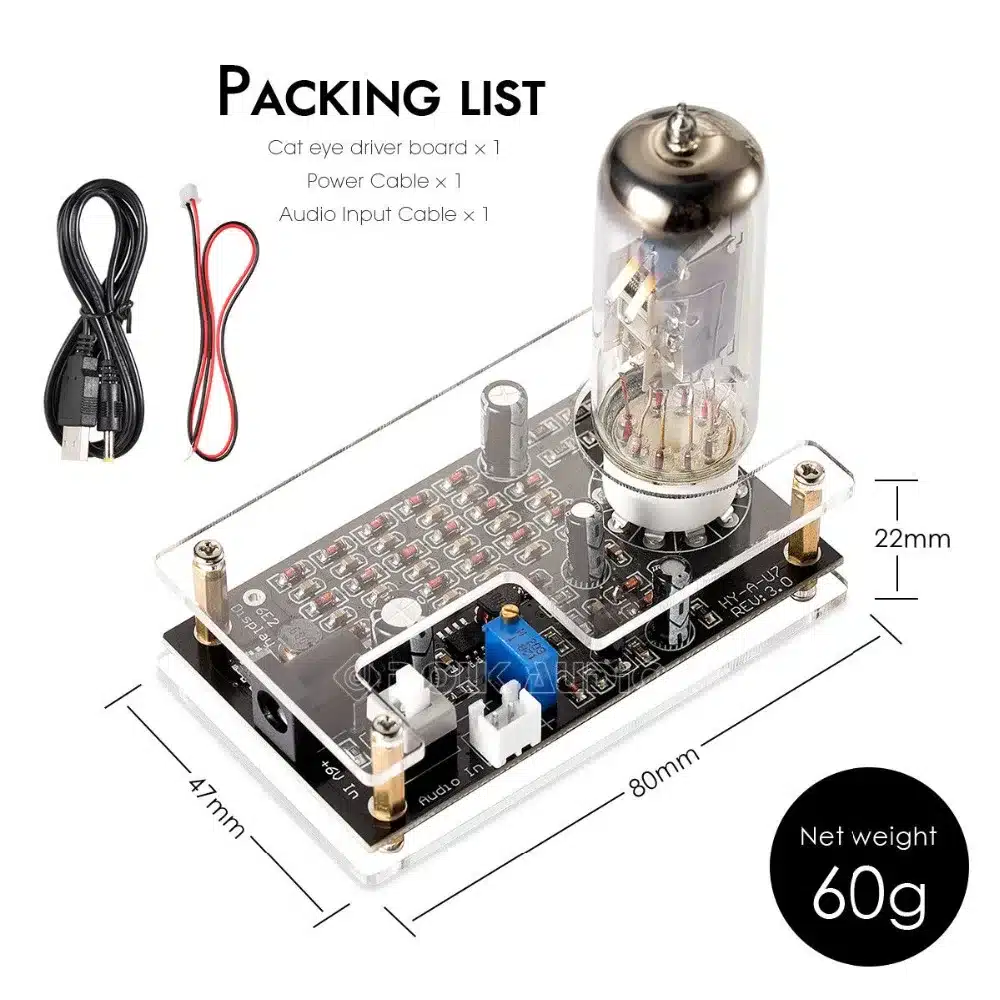

Packing List

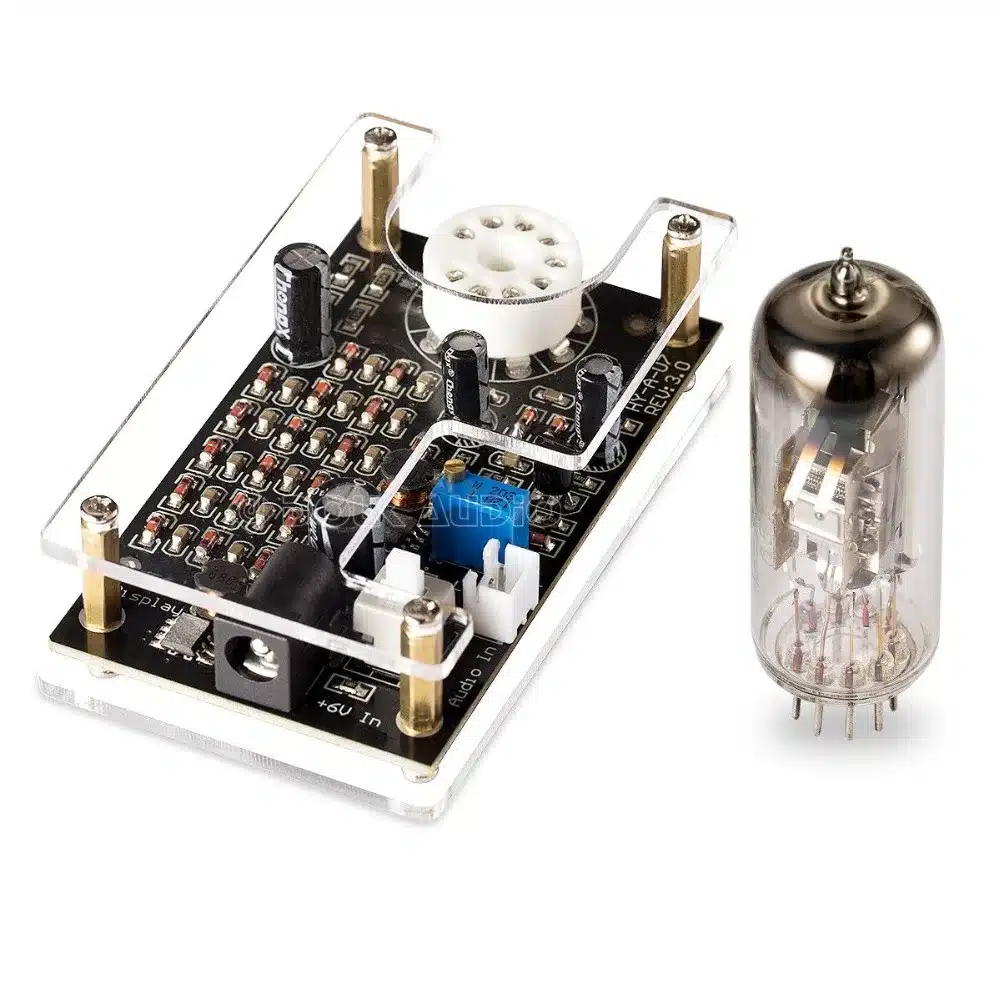

- 1* driver board with case
- 1* 6E2 tube
- 1* USB to DC power cord
- 1* Signal cable
Notice
1.The finished board is tested for power aging to ensure a smooth installation.
2. Dangerous voltages may be generated when the circuit is working. Please pay attention to safety.
