Features:

Iuput Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
3.5mm jack audio output format: 2CH PCM
SPDIF output format: PCM, AC3, DTS, 5.1CH Dolby Digital
HDMI audio output format: All formats including more advanced Dolby Digital Plus, PCM5.1CH and beyond
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA

Three switching audio EDID settings:
Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.

Package Contents:
1 X HDMI Audio Extractor
1 x 5V DC Power Adapter
1 X User Manual

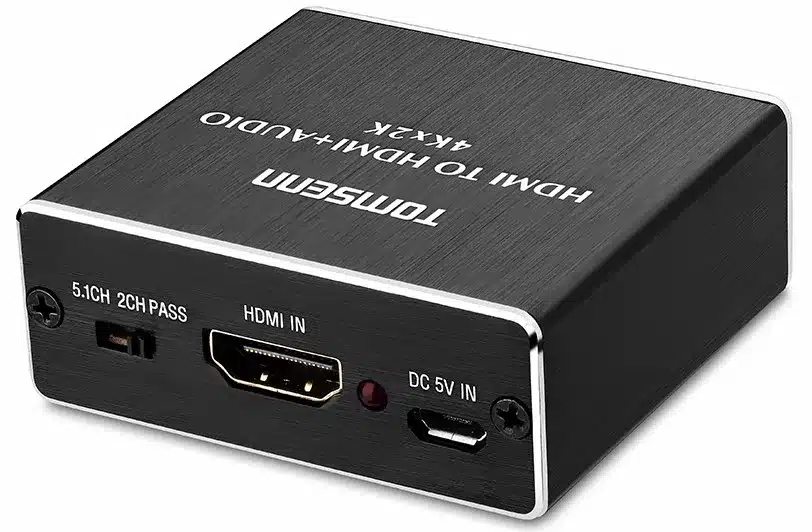

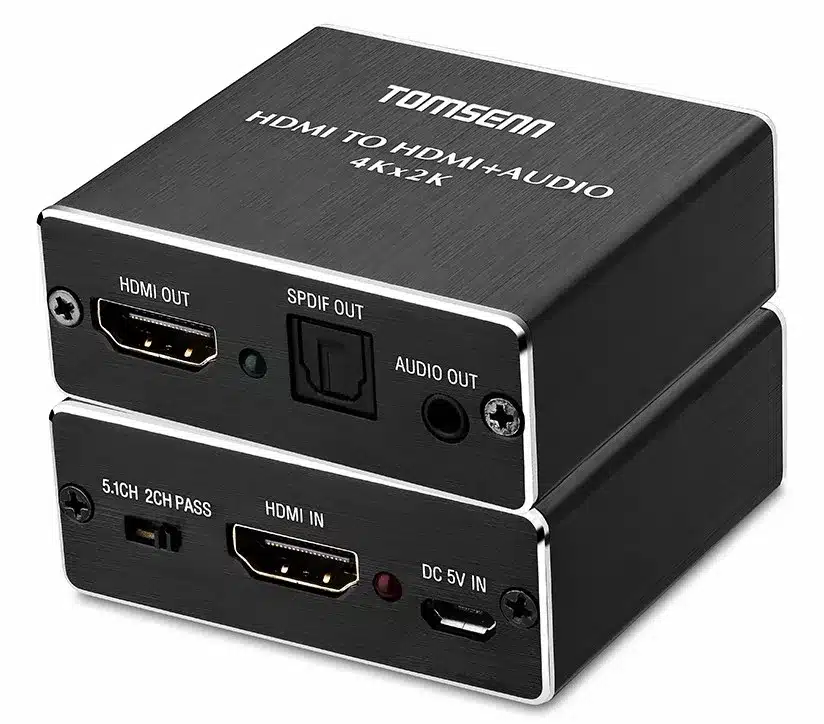

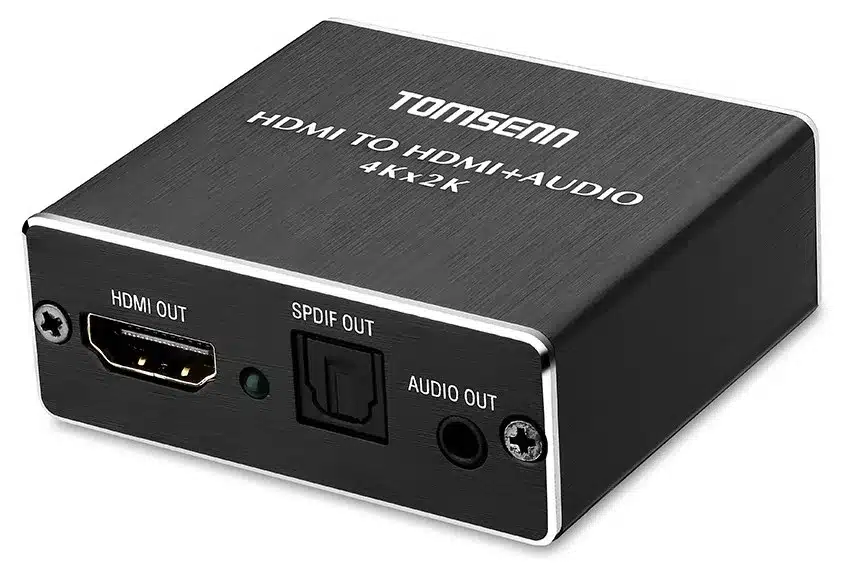

Product show

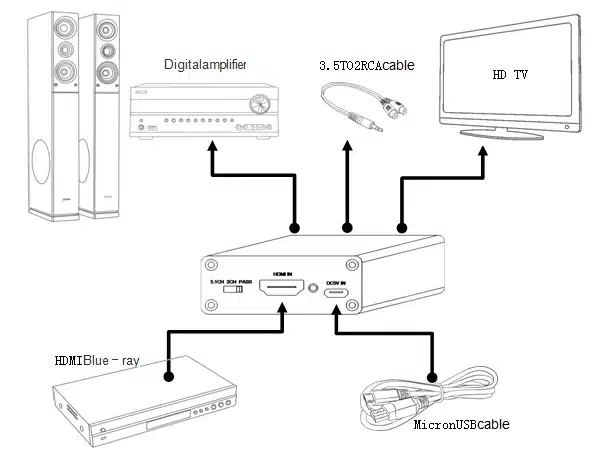

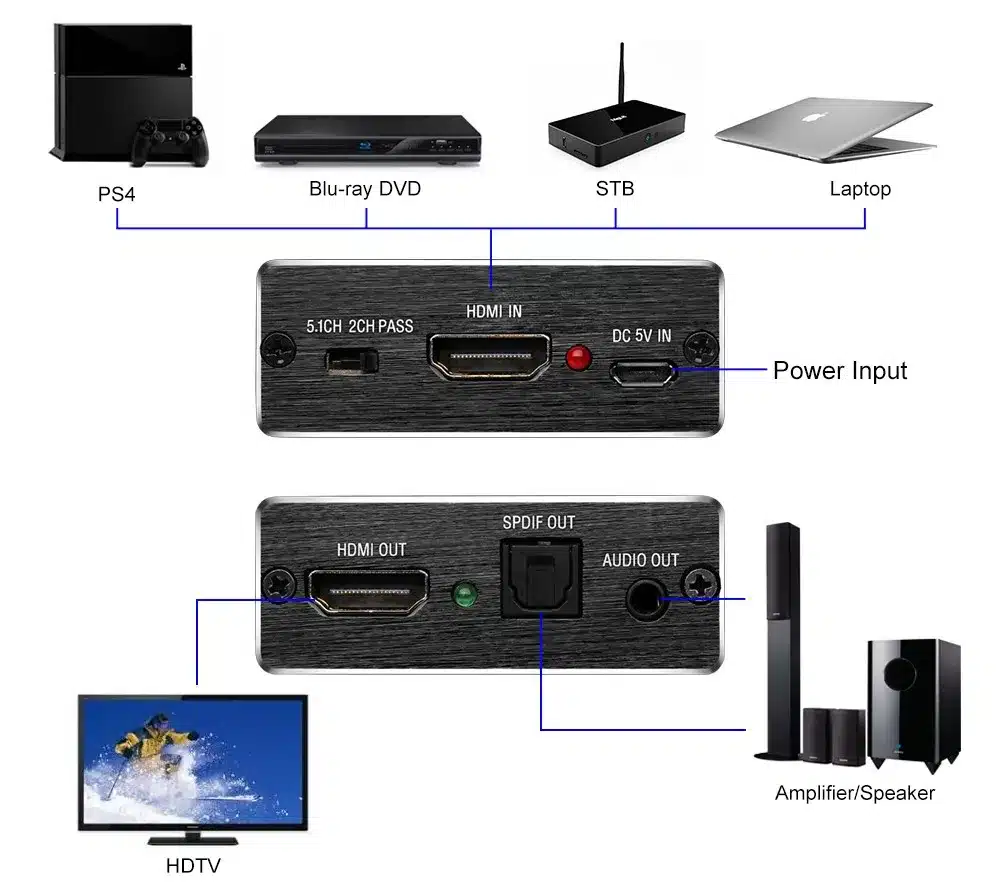

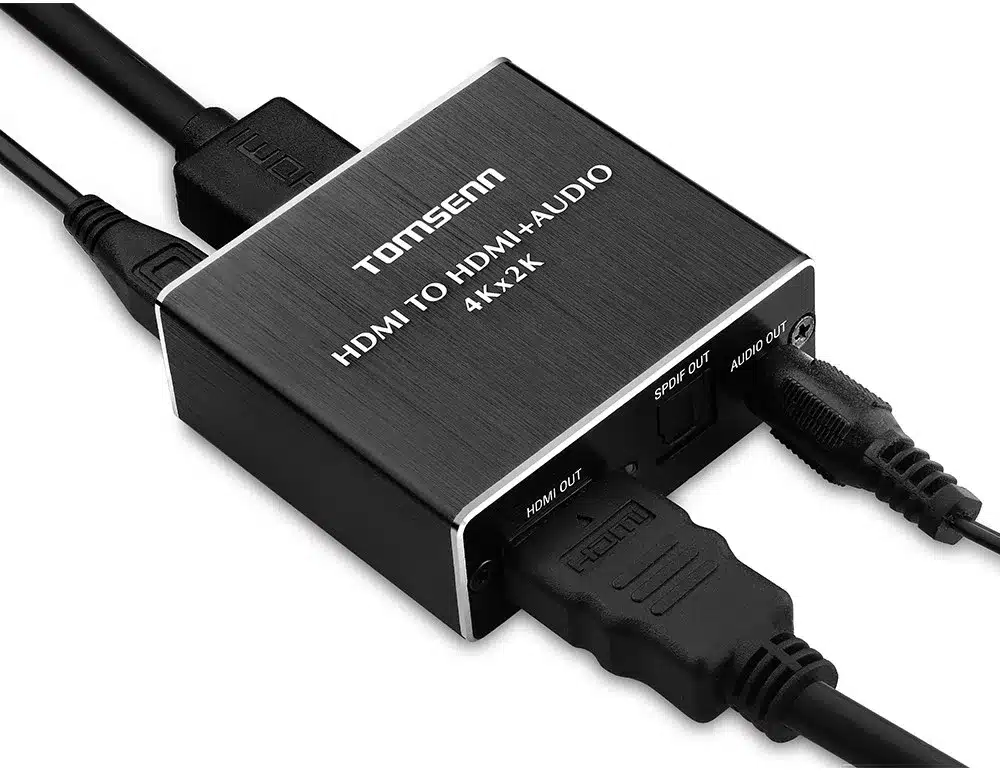

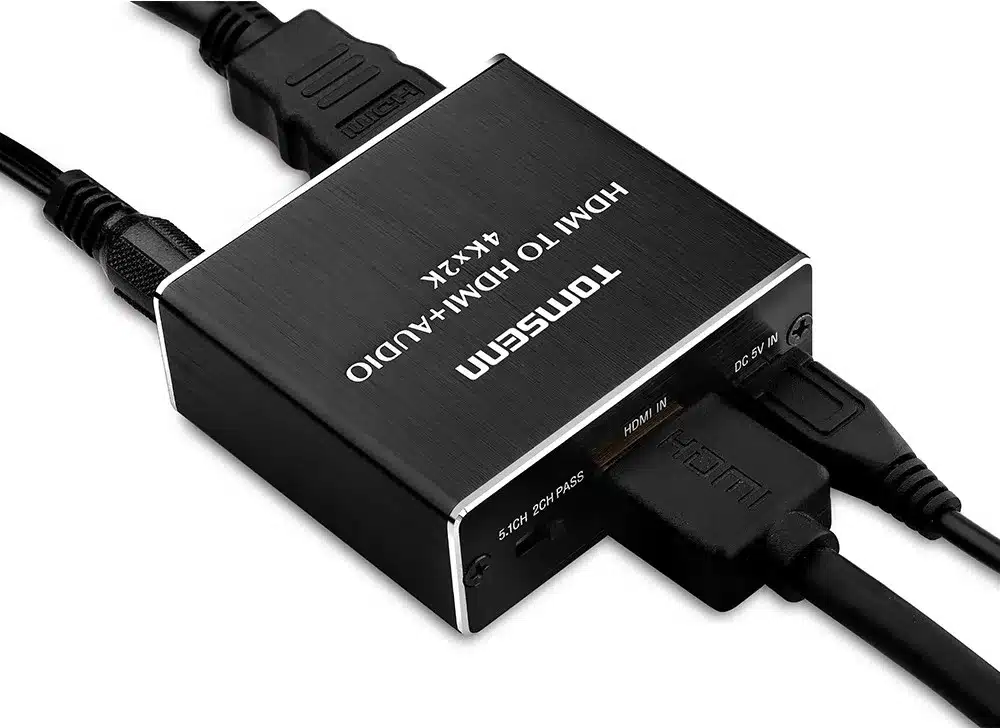

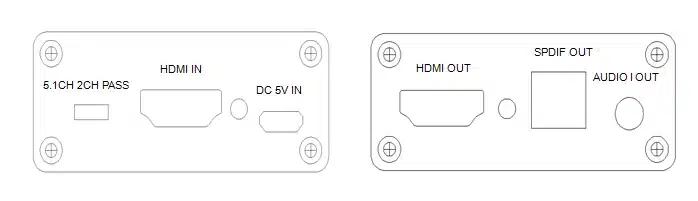

Physical Connection Showing Picture

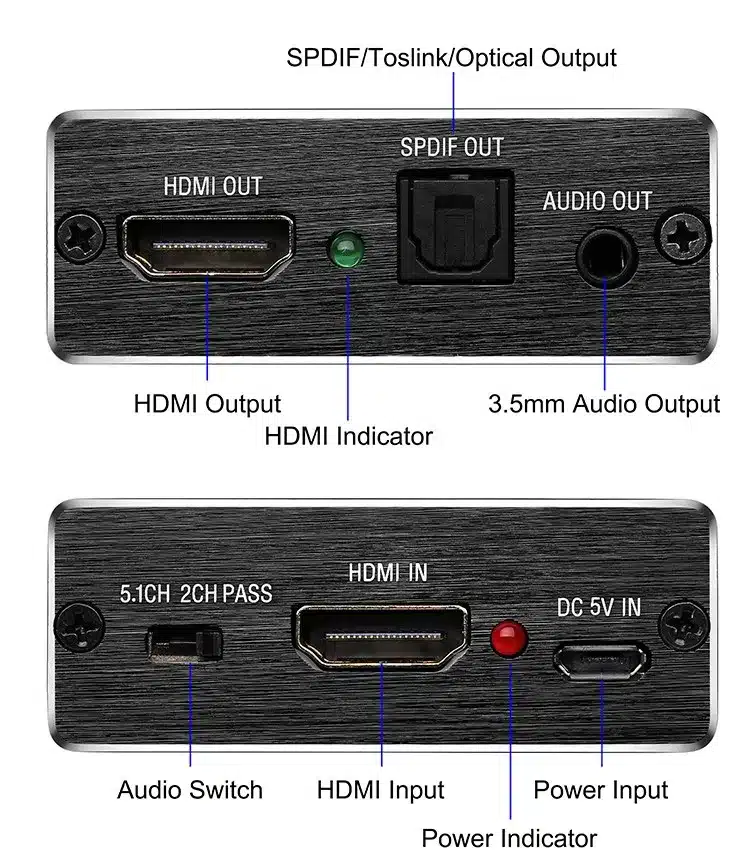

SWITCH:Audio mode switch

PASS: HDMI pass mode. The audio and video from the HDMI output,

SPDIF and L/R no output.

2CH: 2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio.

5.1CH: 5.1 channel mode. The HDMI / SPDIF output 5.1 channel audio, L/R no

Output.

5V DC power supply jack: When the converter box connected to a non-standard HDMI interface or HMDI cable is required to access the 5V/500mA external power supply.

OPERATIONG AND CONNECTION:
