Kuumakse al. HiFi Bluetooth 5.0 eelvõimendi
Suurus: 180*118*36mm
Bluetooth: 5.0
Features
- With 3 kinds of audio input(Bluetooth/USB/RCA) and 2 kinds of output(RCA/3.5mm headphone), P1 can be used as HiFi tube Preamp, USB DAC or headphone amp with HiFi clear, warm, dynamic, sweet tube sound, bringing extremely high-quality listening experience.
- Bluetooth 5.0 (QCC3008) supporting APT-X, APT-X LL lossless transmission. PC-USB (CM6642) supporting 24bit 192KHz and compatible with Windows/Mac/Linux system, matching well with many audio devices such as iPod, Phone, MP3 players, TV, Blu-ray players, Echo Dot, CD players, etc.
- Adopting 2PCS NE5532 classic 47 headphone amp architecture which can drive 32-300 ohm headphones, and a bypass switch is specially designed to turn on/off the tone control, more convenient to enjoy original sound or obtain more delicate sound with treble and bass control knob, adding much fun and higher playability.

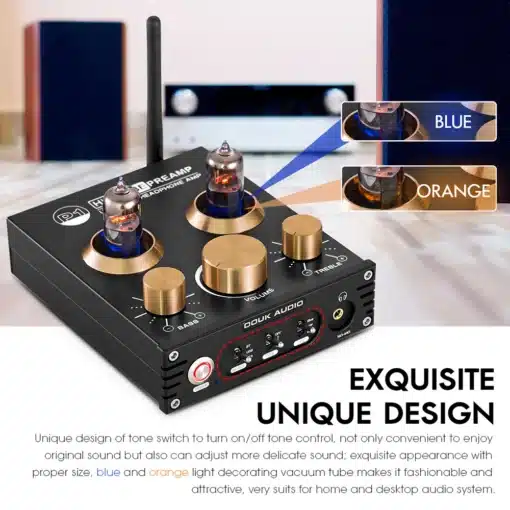

- Exquisite appearance with proper size, blue and orange light decorating vacuum tube, makes it fashionable and attractive, bringing wonderful auditory and visual enjoyment, very suitable for home and desktop audio system.
Parameters
Chip Architecture: CM6642+QCC3008+NE5532+classic 47
| PC-USB Input Sampling Frequency | 192K/24Bit | THD | 0.01% |
| PC-USB System supported | XP/W7/W8/W10/MAC/Linux | Bluetooth VER | 5.0 |
| Headphone matching impedance | 32-300Ω | SNR | 103dB |
| Headphone Max power output | 160mW 32Ω load | Working voltage | DC12V |
| Bass & Treble Range | ±6dB | Product Dimension | 180*118*36mm |
| RCA output level | 2.3V | Product Weight | 0.47kg |
| Frequency Range | 20Hz-20kHz(±3dB) | Package Dimension | 240*210*60mm |
Packing List
- 1*P1 Preamp
- 2*6J5 Tube
- 1*Power Supply
- 1*USB Cable
- 1*Bluetooth Antenna
- 1*Manual
