Kuumakse al. HiFi võimendi 24W
Suurus: HiFi võimendi 24W
Võimsus: 12W * 2
Features
- Potting output transformer to ensure the stability and reliability of the output.
- The output transformer is made of new 0.35 iron core, high-purity pure copper enameled wire, layered segmentation, and serial connection method.
- Nissan ALPS potentiometer and high-grade tensile transformer cover, high-temperature baking finish, bright grain process.
- The 0.35 thick iron core is used to manufacture power transformers to ensure sufficient power and extremely low temperature rise.
Basic technical parameters
- Input Voltage:110V/220V-240V、50-60Hz optional
- Output Power: 12W * 2 (ultra-linear connection)(equial to 50W Transistor).
- Frequency response: 20Hz – 28KHz.
- Output Impedance: 4/8 Ω.
- Total Harmonic Distortion: ≤ 1% (1kHz).
- Input Sensitivity: 750MV.
- Input impedance: 100KΩ (two input signals)
- Dimensions (W*D *H): 310 × 268 × 165mm.
- SNR: 88dB.
- Output Transformer: Enlarged version 76 * 40
Technology and Ma terials

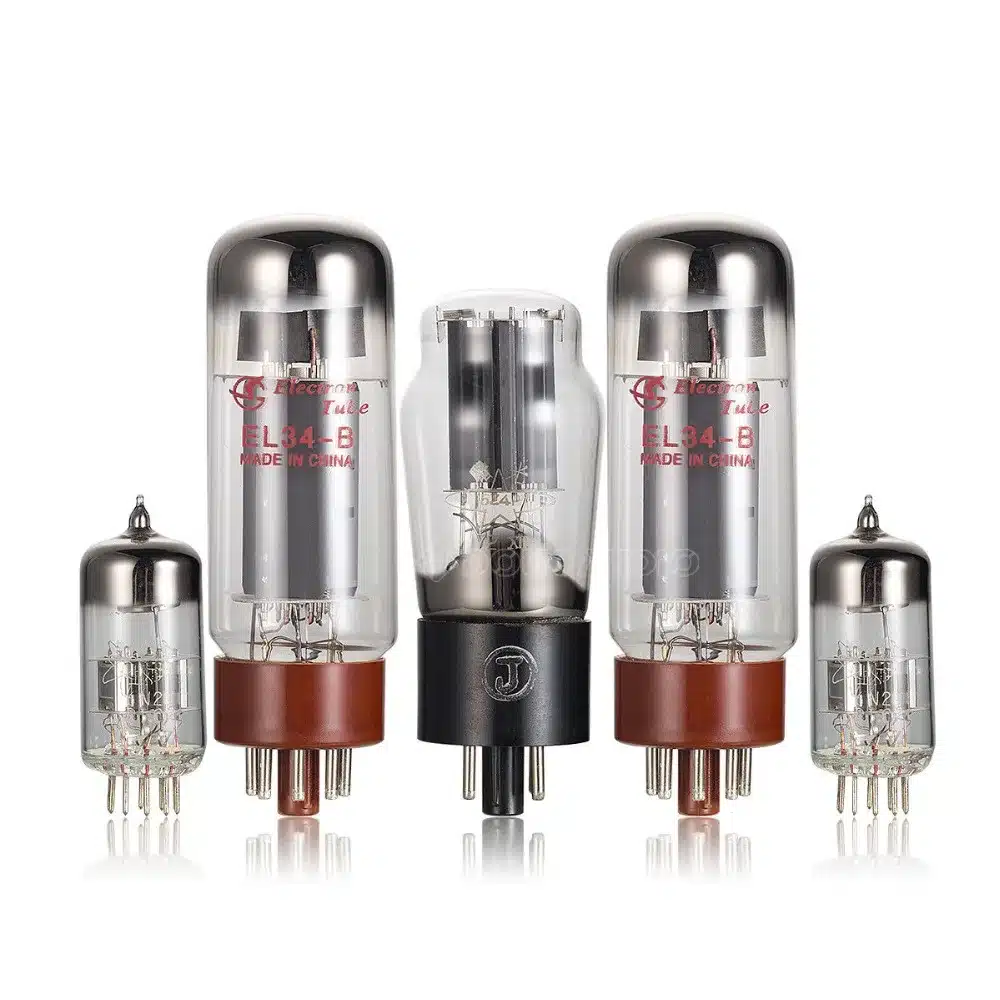

- Voltage amplification: 6N2J*2.
- Power Output tube: Shuguang EL34B*2.
- Rectifier tube: 5Z4PJ*1.
- Power Transformer: new imported 0.35, stacked thick 50MM (96-50).
- Output transformer cores: new imported 0.35 (76-40).
- Chassis: Imported mirror stainless steel chassis.
- Corners aluminum column: high-grade aluminum CNC machining, diamond knife speed car system.
Packing List
- 1* Class A Tube Amplifier
- 1* Power Supply Cable
