HiFi võimendi bluetoothiga
Features

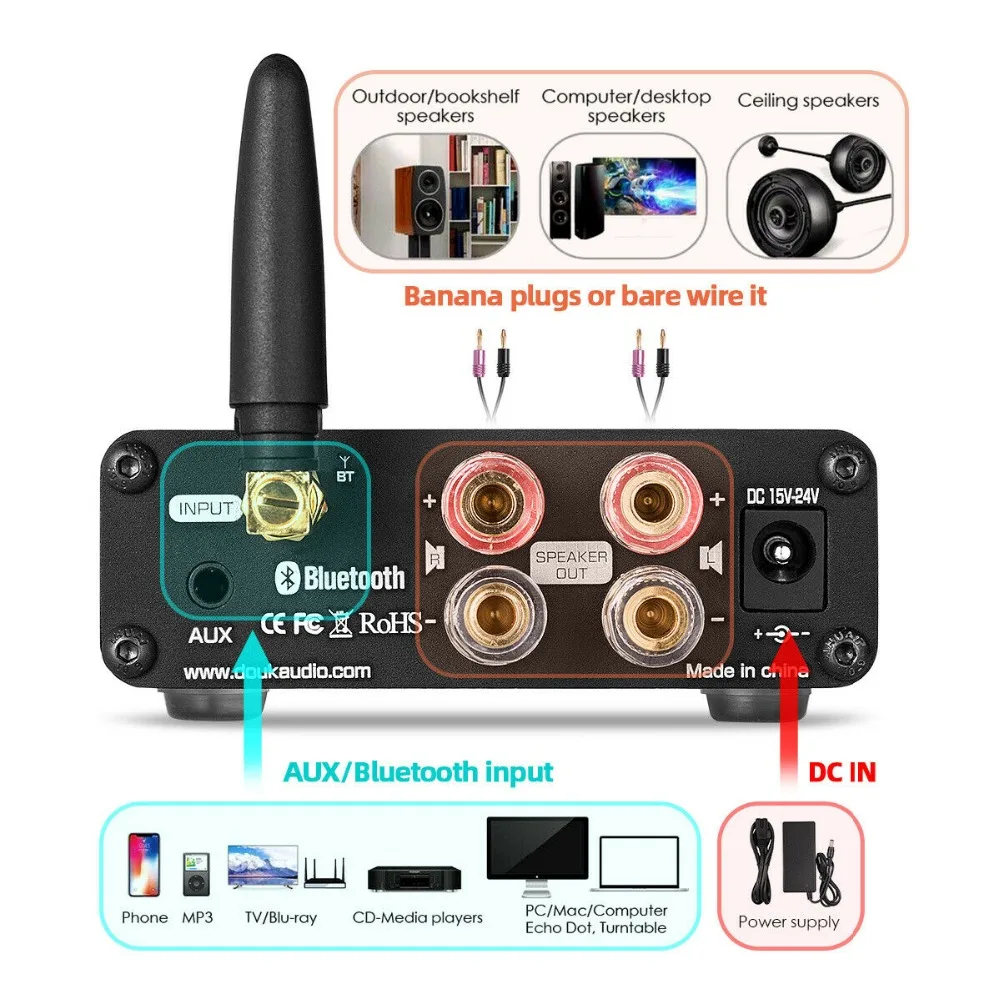

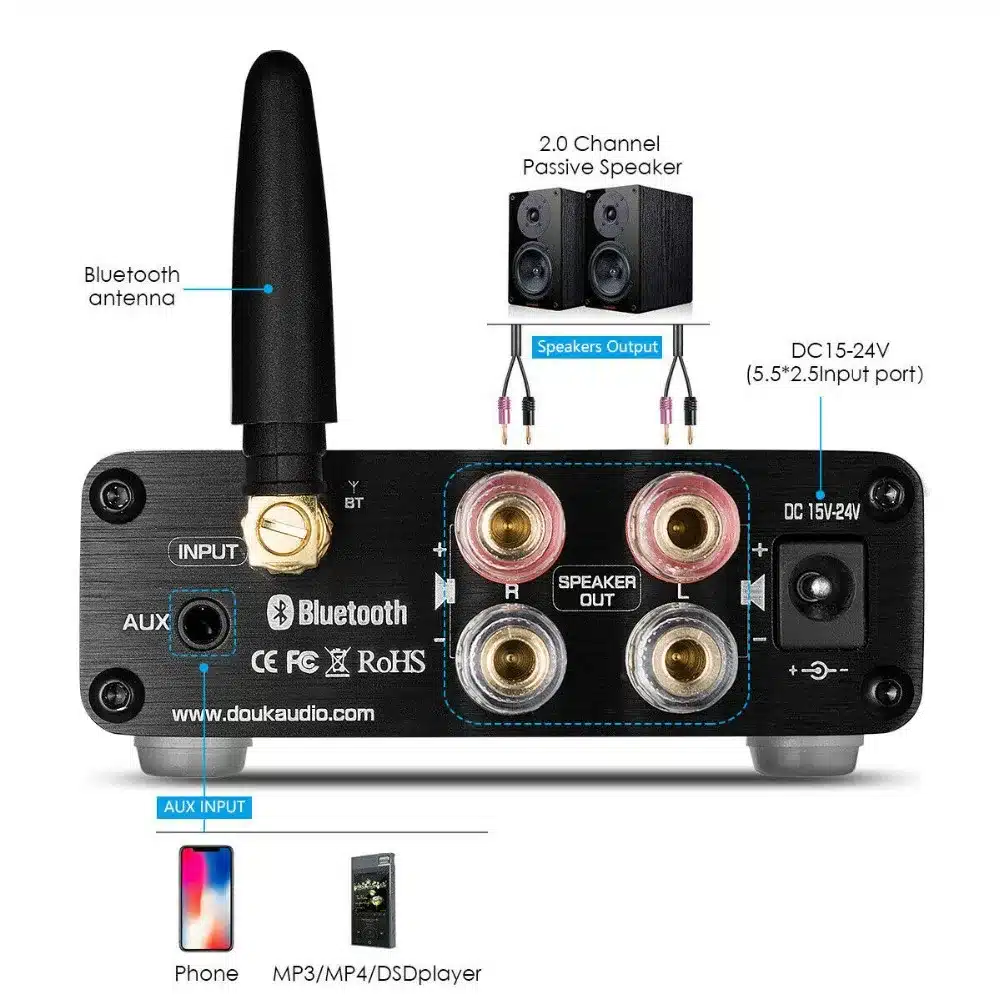

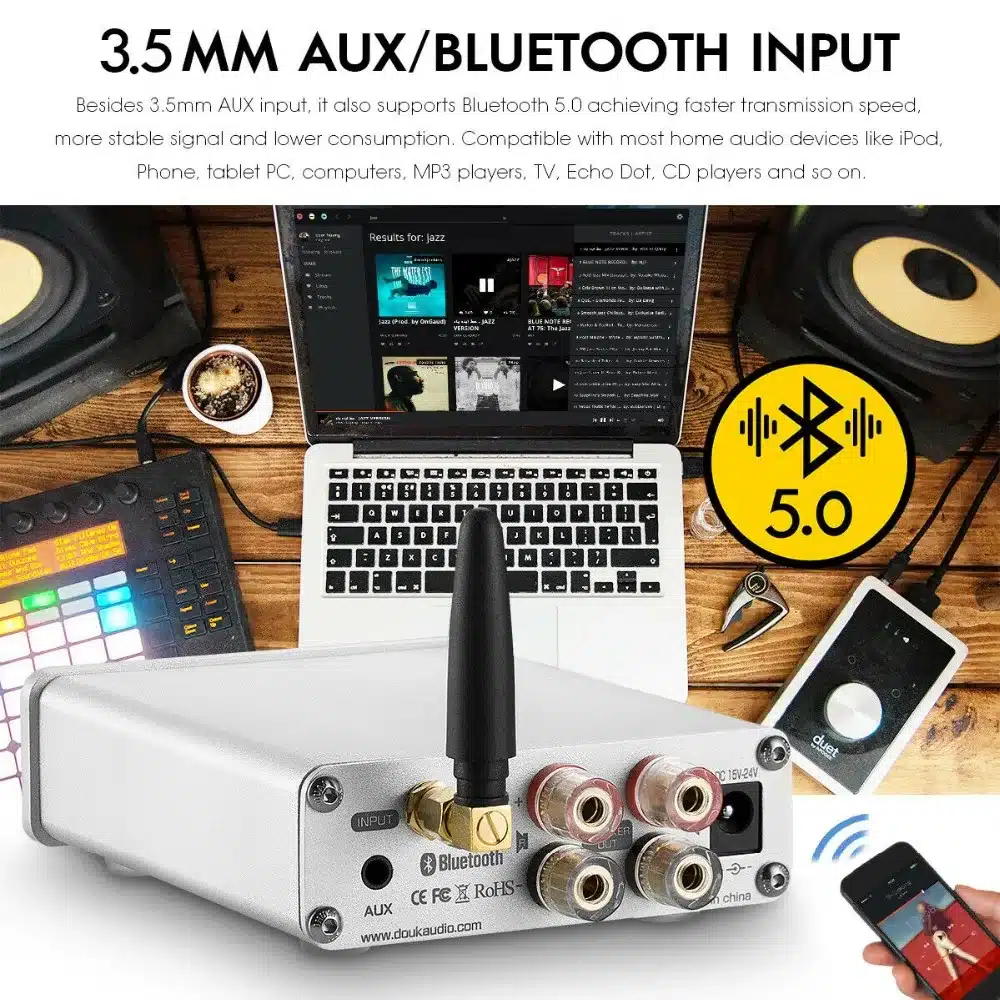

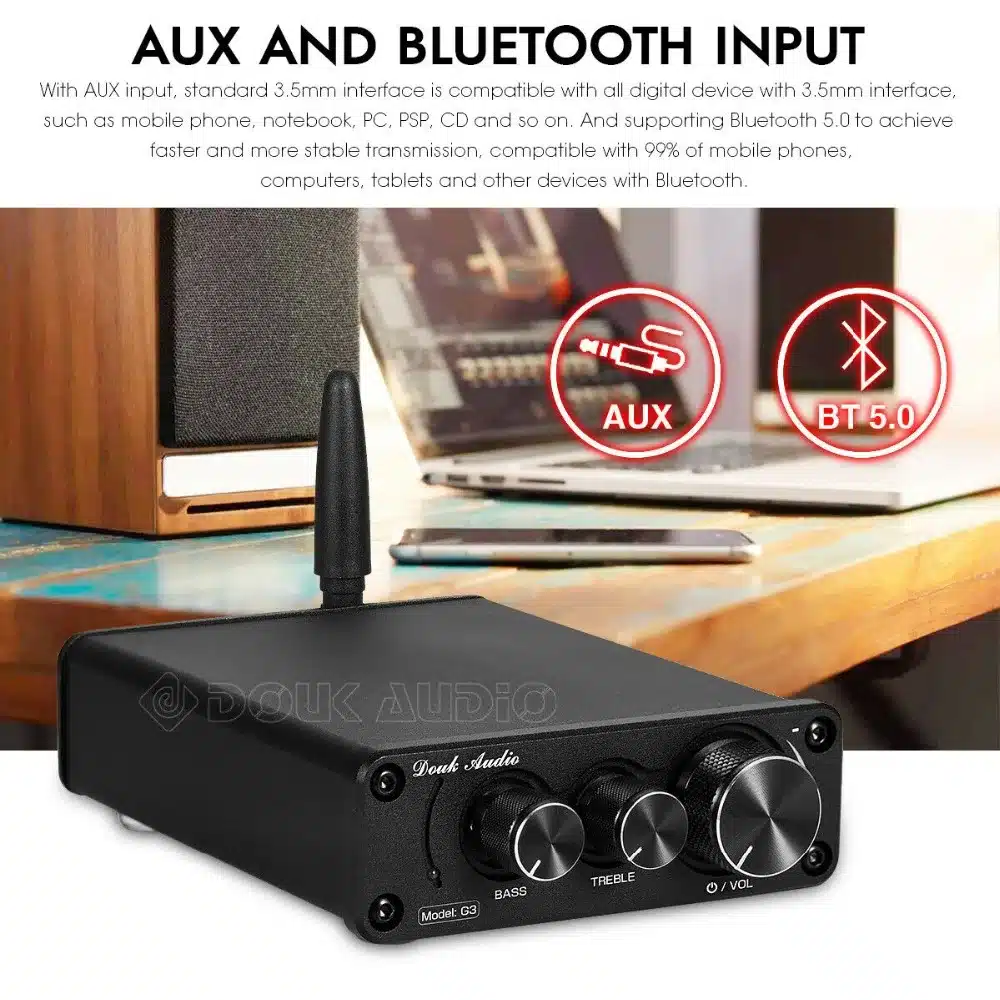

Besides standard 3.5mm AUX input, it also supports Bluetooth 5.0 to achieve faster and more stable transmission. Compatible with most home audio devices such iPod, Phone, tablet PC, computers, MP3 players, TV, Echo Dot, CD players and so on.

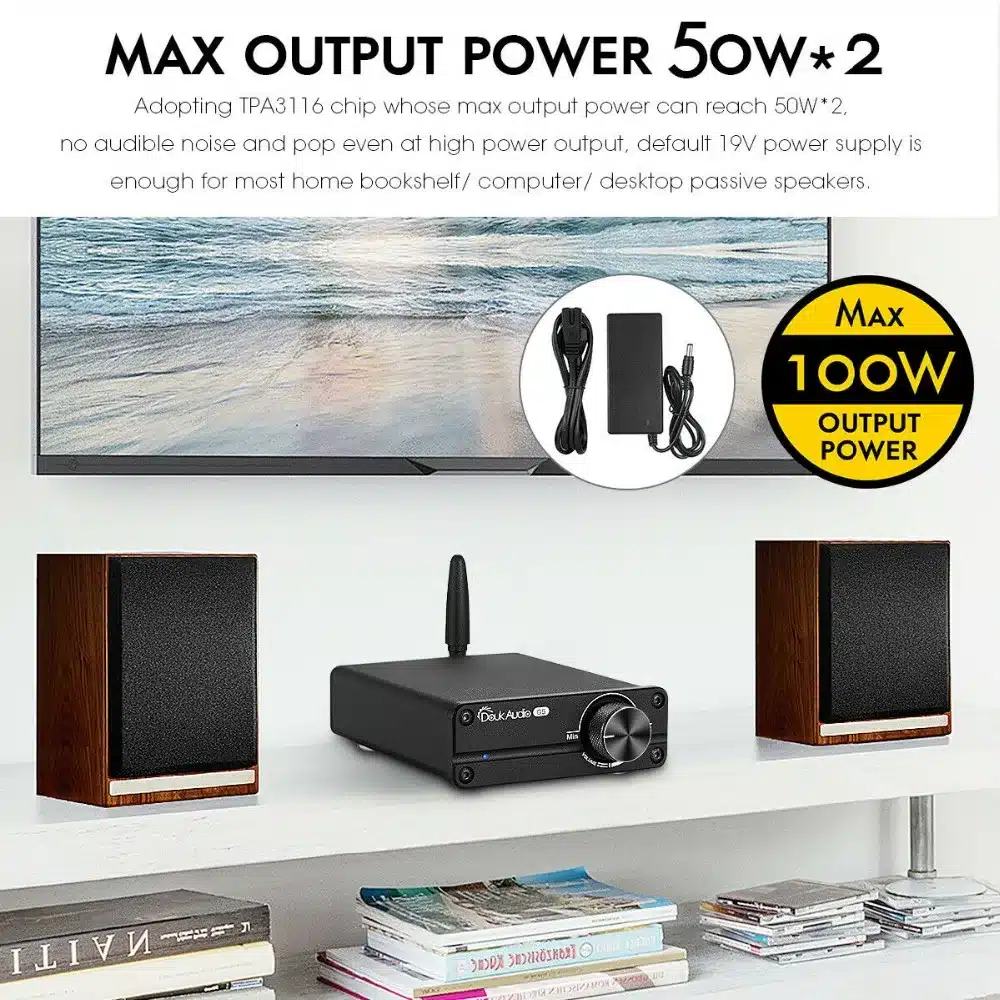

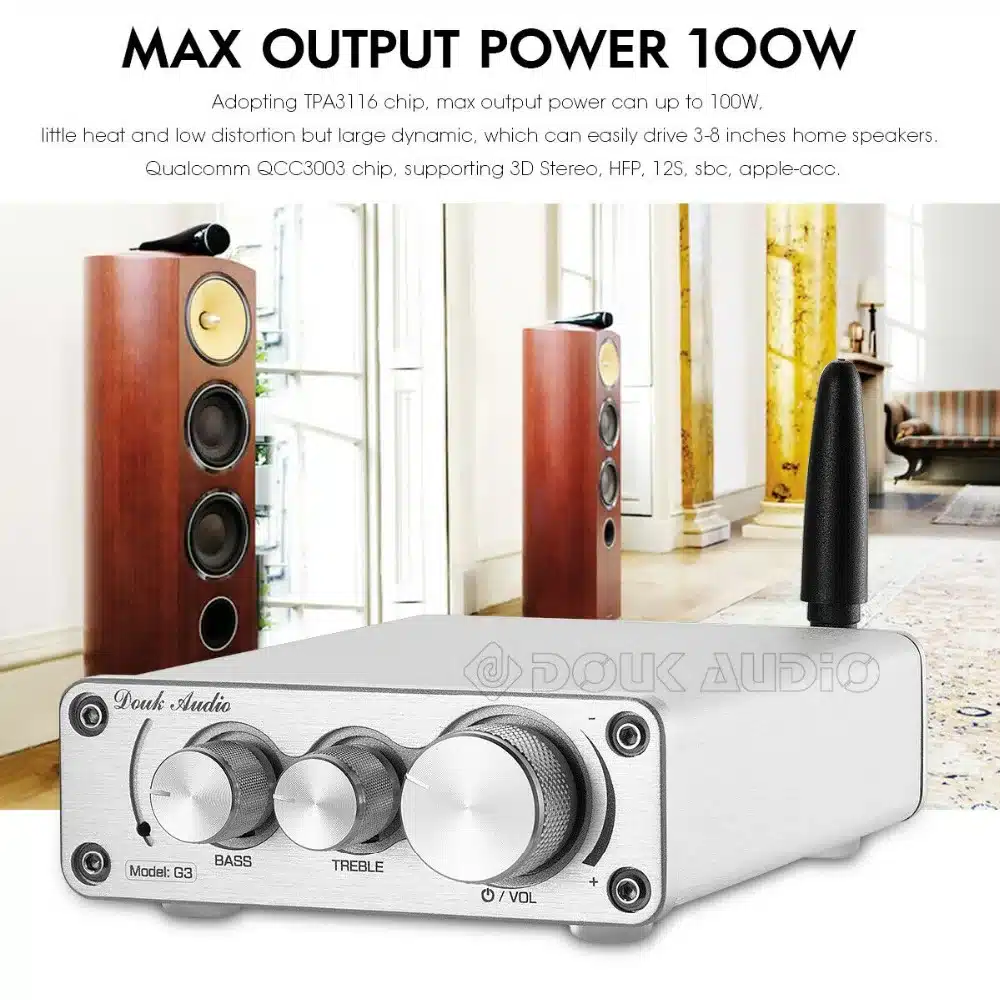

Adopting TPA3116 chip whose max output power can reach 50W*2(24V/6A, 4 ohm), no audible noise and pop even at high power output, the default 19V power supply is enough to drive most home bookshelf/ computer/ desktop passive speakers.

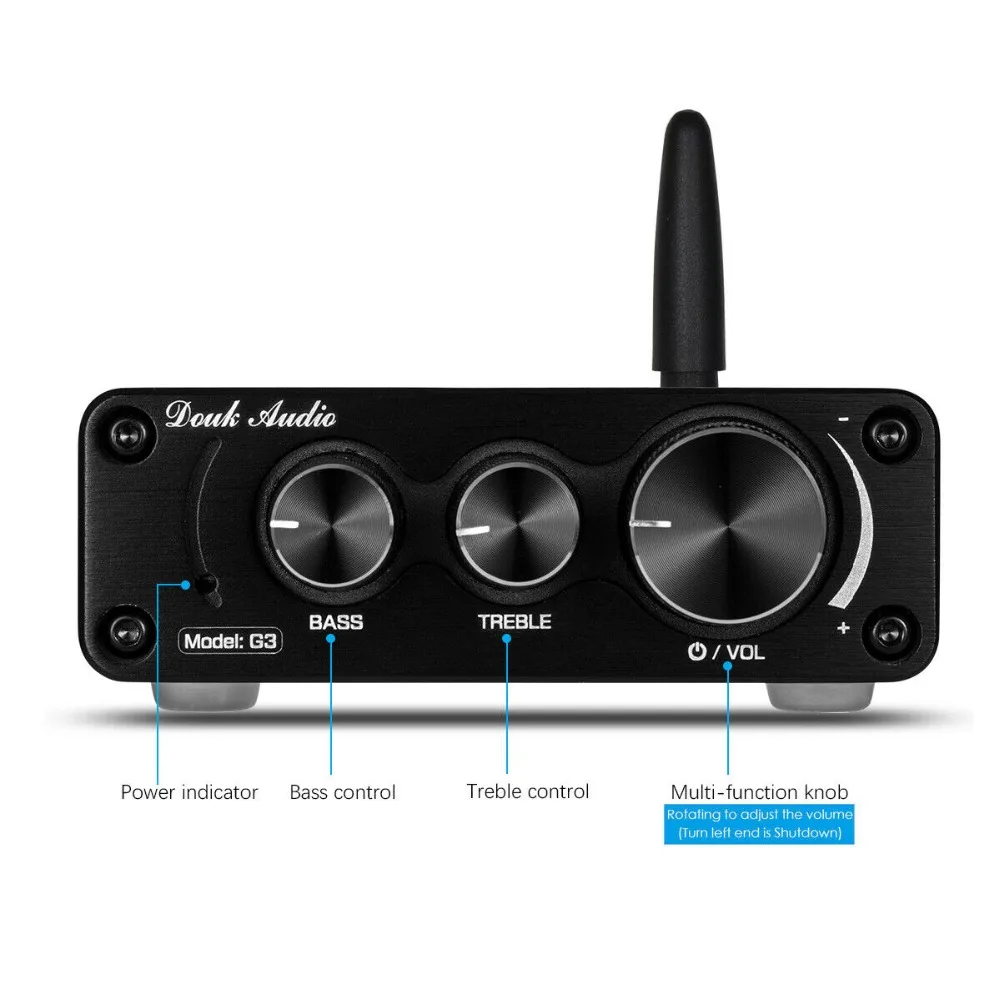

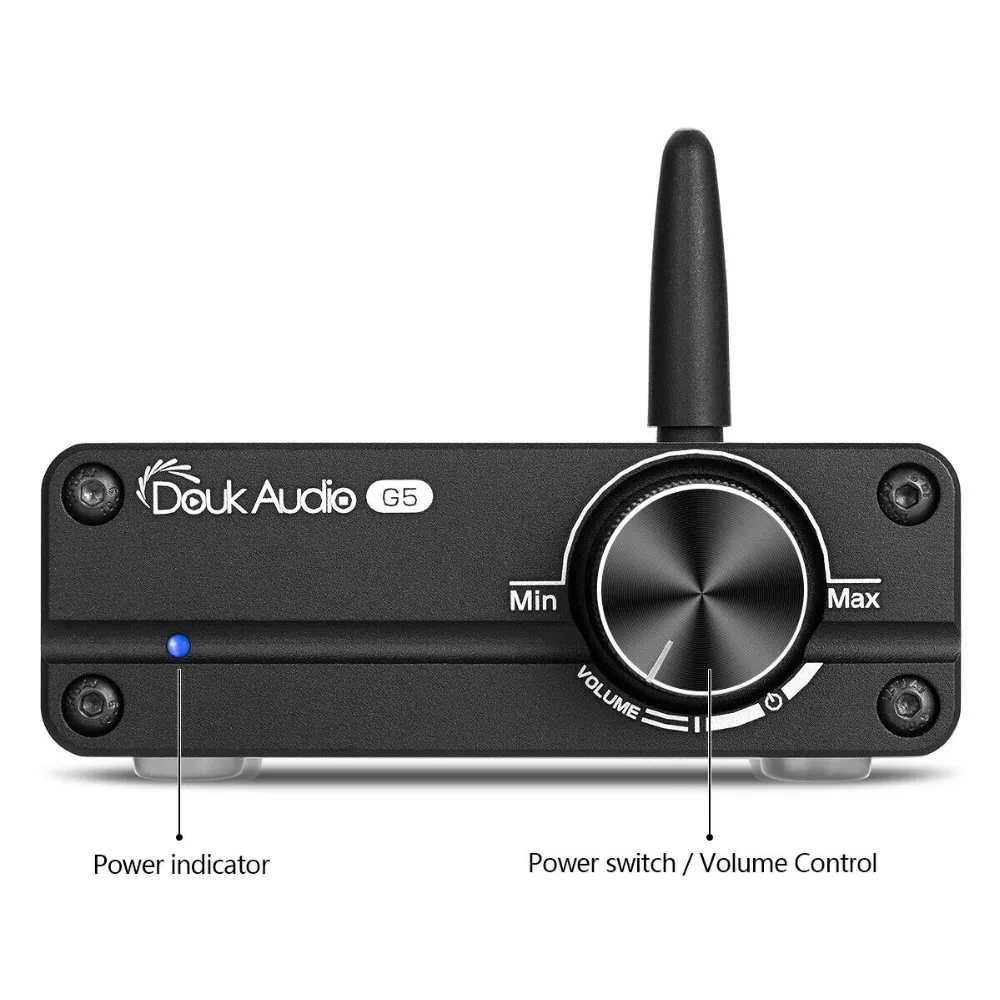

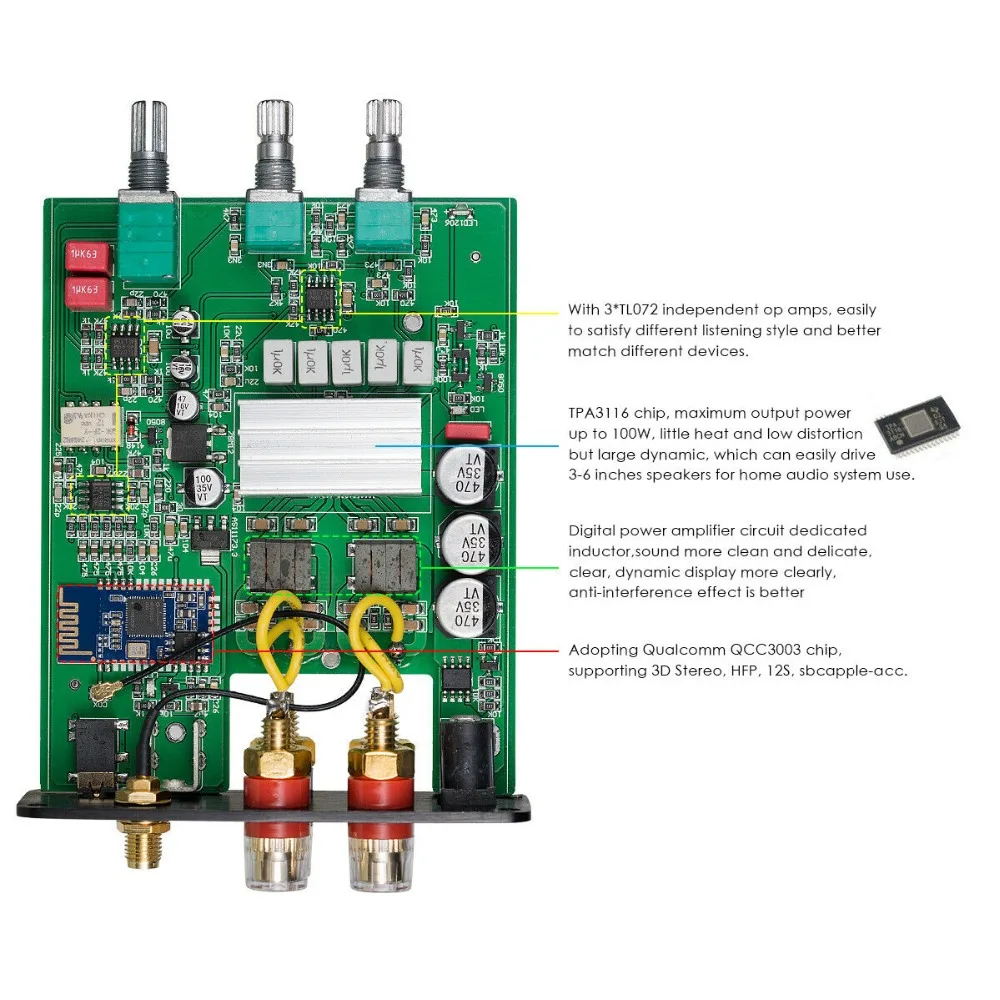

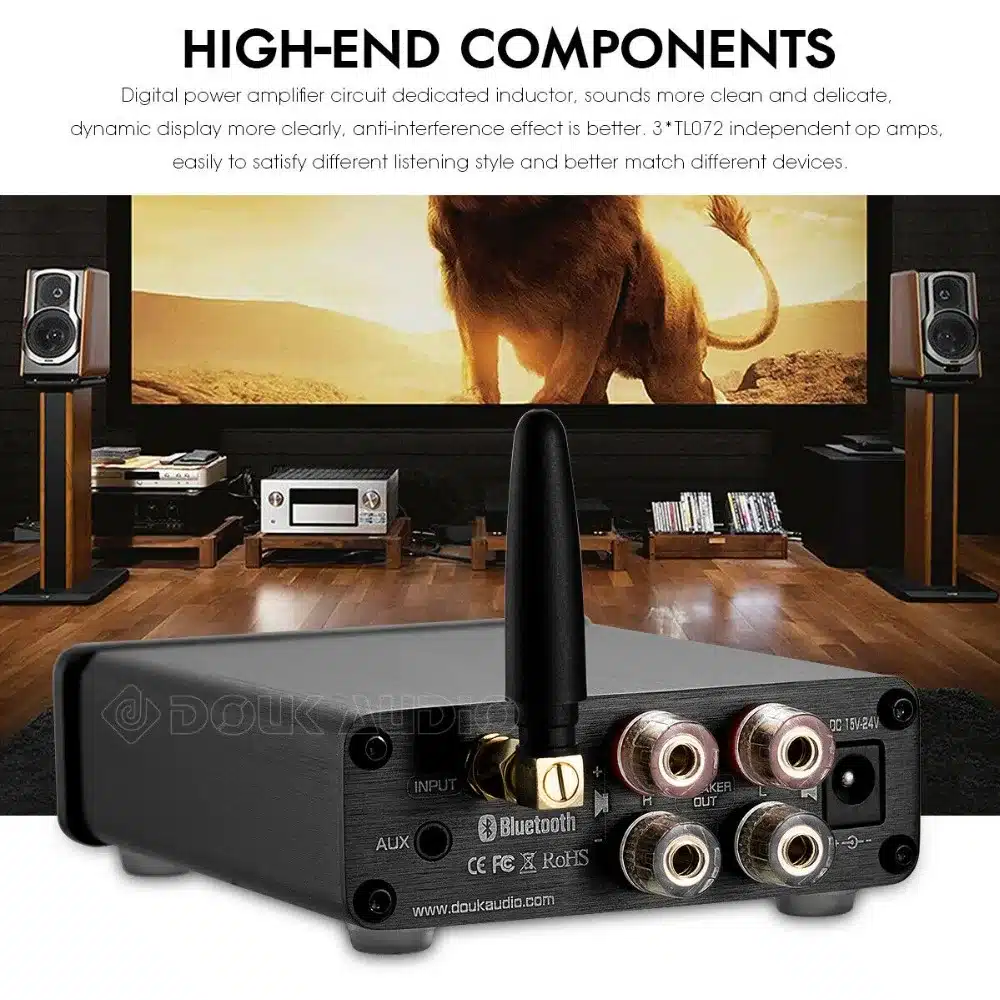

G3 with treble and bass control, the sound is more delicate and with higher playability, while G5 places emphasis on reproducing original sound and enjoying the real sound. 3PCS TL072(G3) op-amp and 2PCS NE5532(G5) op-amp are used, plug-in type design makes it easy to be replaced by different op-amps.

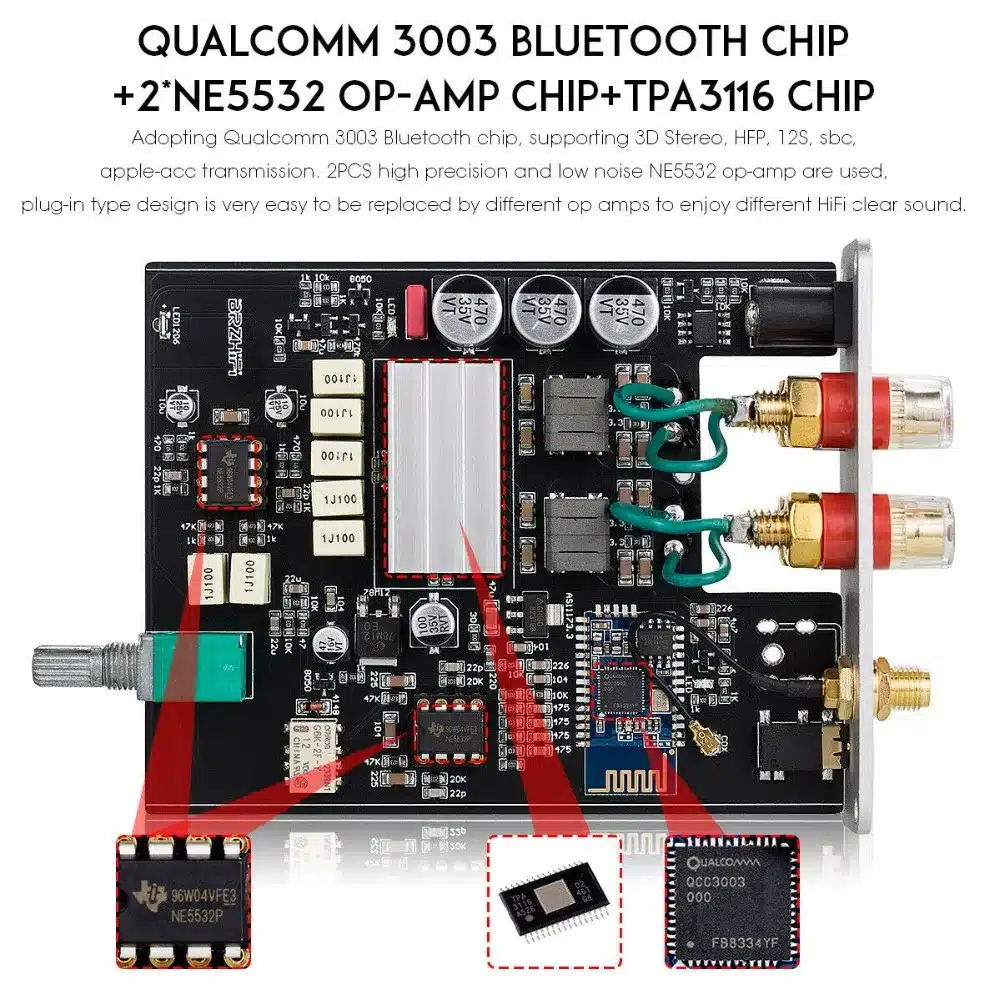

Adopting Qualcomm 3003 Bluetooth chip, reasonable circuit layout and compact aluminium alloy chassis to ensure better shielding performance and clearer sound.

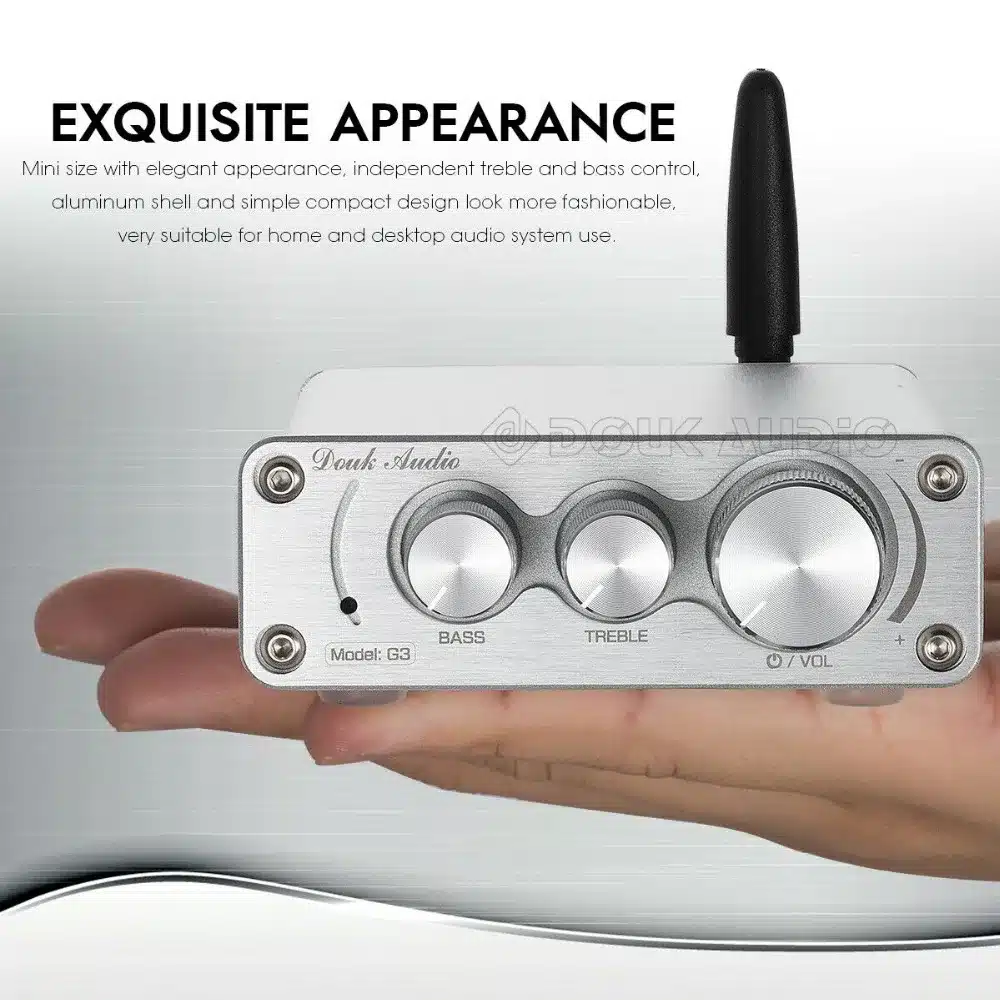

Simple design without any redundant functions to ensure purer and more natural sound. Mini size with exquisite appearance looks more fashionable, very suitable for home and desktop audio system use.
Parameters / Model |
G3 Tone Control Version |

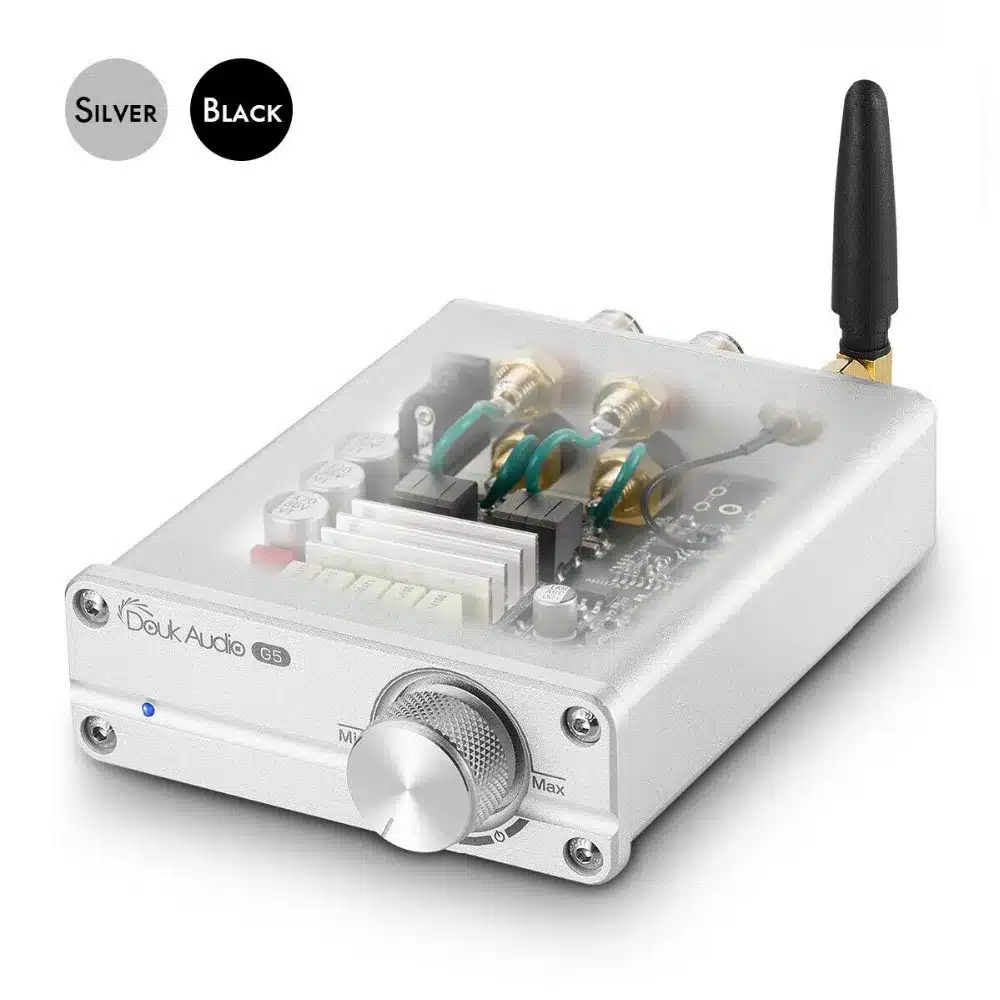

G5 HiFi Version |
Audio input |
3.5mm AUX & Bluetooth | |
Audio output |
Banana speaker jacks |
|
Max output power |
100W@4Ω |
|
Power amp chip |
TPA3116 |
|
Op amp |
3*TL072 |
2*NE5532 |
Speaker impedance |
4-8Ω |
|
Frequency response |
18Hz-25Khz |
20Hz-22KHz |
THD |
0.002% |
0.001% |
SNR |
101dB |
103dB |
Working Voltage |
DC15-24V |
|
Default power supply |
19V/4.74A |
|

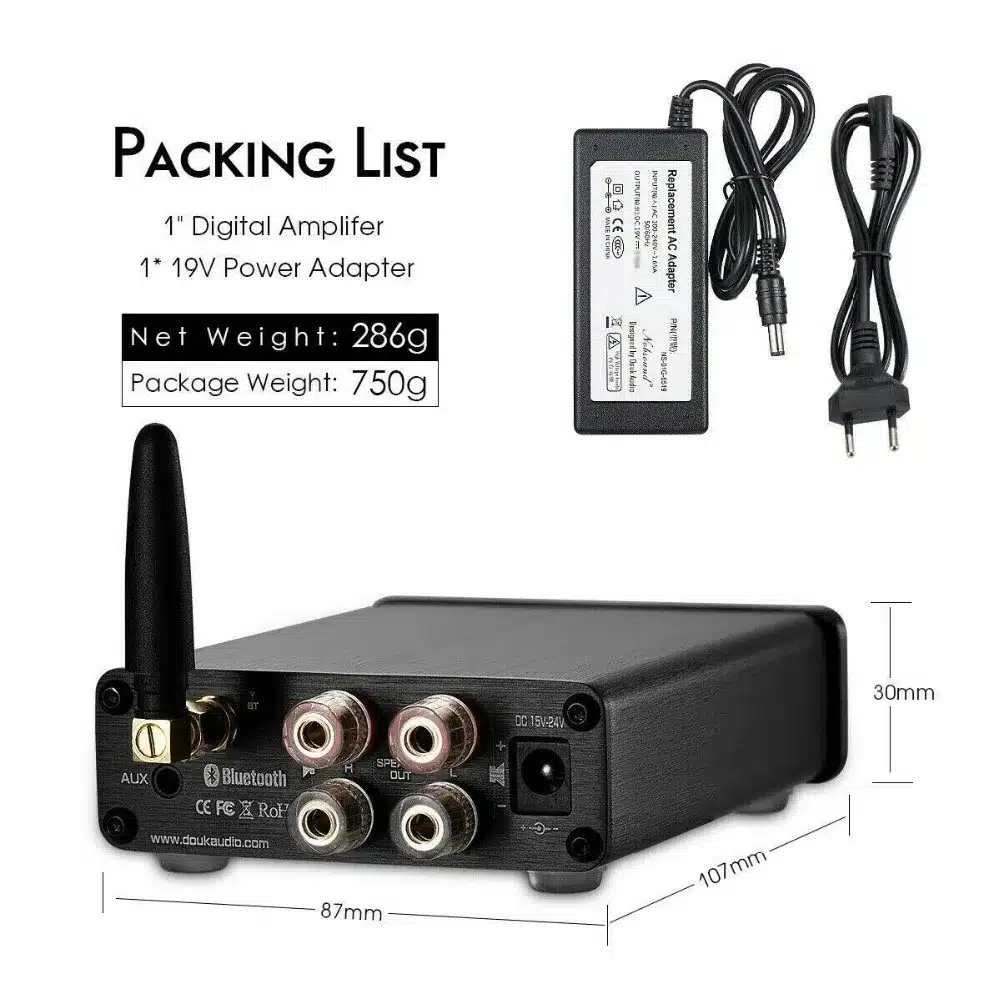

Dimensions(L*W*H) |
30 x 87 x 107mm |

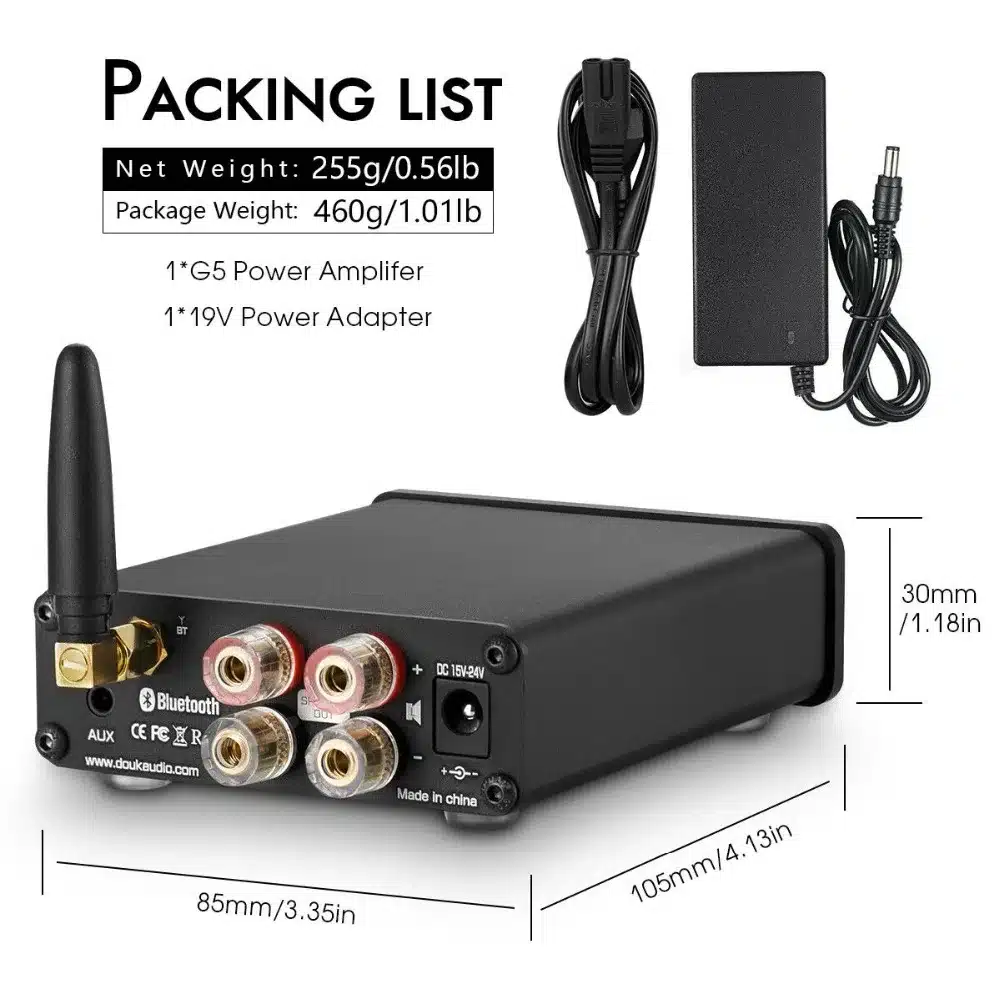

105 x 85 x 30mm |
Net Weight |
286g |
255g |
Tone Control Version
HiFi Version
