Kuumakse al. Kontaktivaba kiipkaardikirjutaja – 10 tk
Komplektis: 10 tk

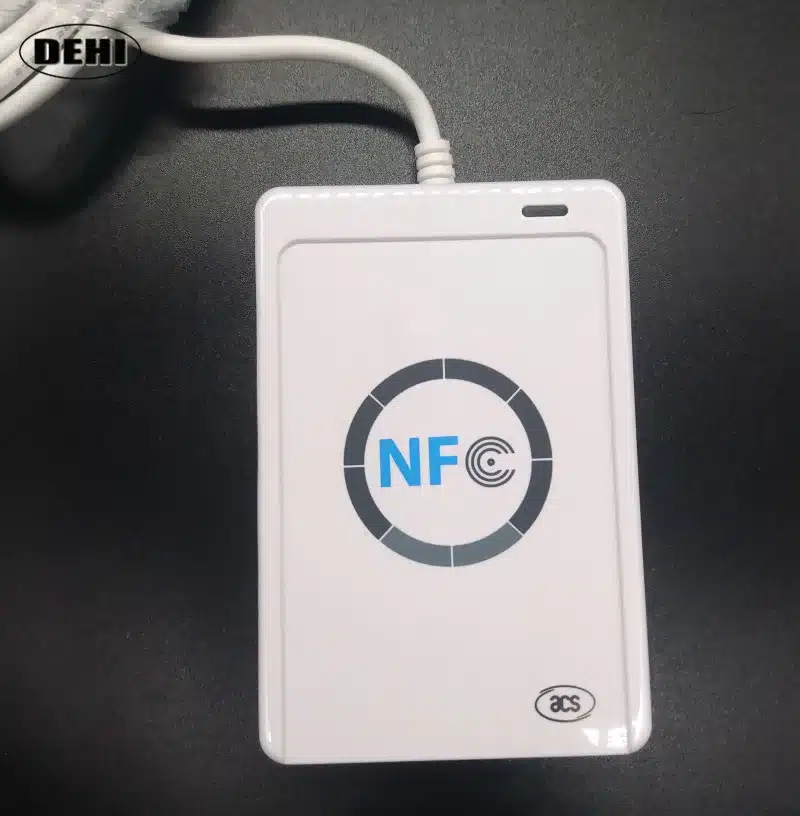

- Model Number: ACR122U
- Brand Name: DEHI
Feactures
CCID-compliant
PC/SC-compliant
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Supports new Ultralight C (via pseudo APDUs) and Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3
Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
USB PnP
User-controllable bi-color LED
Applications
Network access control
Micro-payment
NFC mobile tag
Public transportation terminals
Automatic fare collection
Physical access control
Customer loyalty
Time and attendance
Contactless public phones
Vending machines
Tech Specs
Dimensions 98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight 70 g
Interface USB Full Speed
Operating Distance <= 50mm (depends on tag type)
Supply Voltage Regulated 5V DC
Supply Current 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature 0-50C
Operating Frequency 13.56 MHz
Smart Card Interface Support
ISO14443 Type A & B
Mif
FeliCa
4 types of NFC (ISO/IEC18092) tags
Compliance/Certifications
PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed
Microsoft WHQL: 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7
Operating System Support
Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008
Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64
Windows CE 5.0
Linux
Mac
Packing:

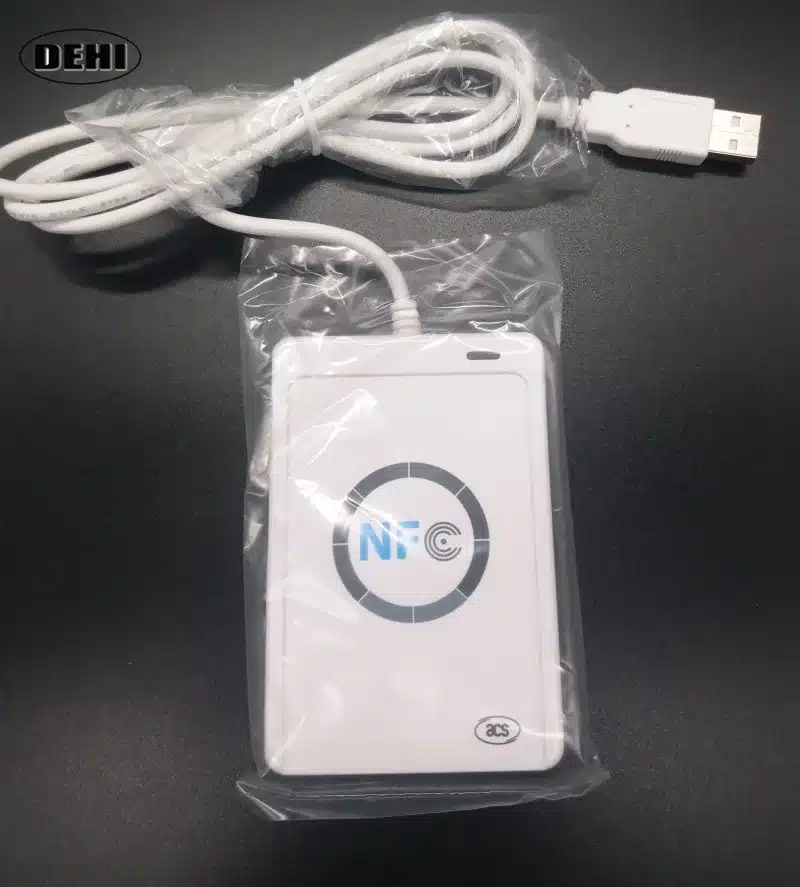

10 x ACR122U-A9 NFC Card Reader
