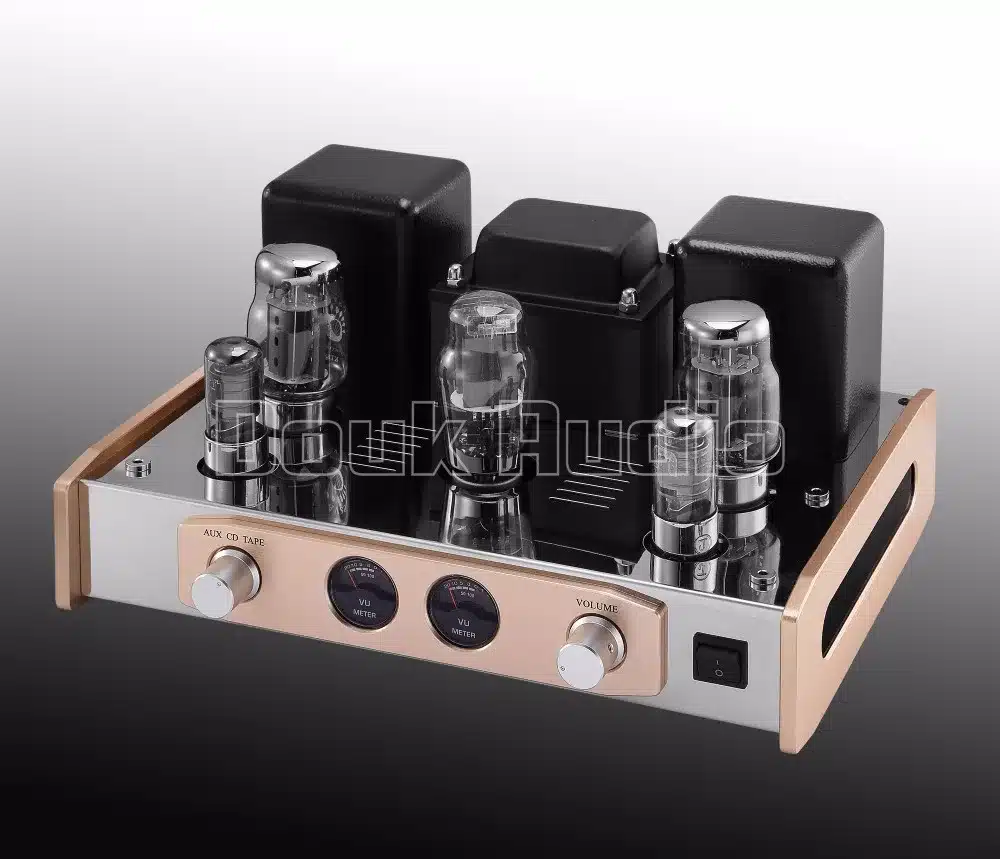

KT88 ventiilitoru võimendi

Maximum output power is 18W.
Output transformer use large loop feedback technology to ensure the sound reproduction is high, powerful and strong .
The new 0.35 core as power transformer, to ensure the stable of power supply.
With power tubes current monitoring circuit, So you can safely upgrade or change the tube.
Medical grade 5Z3PAT rectified, Much better than 5Z3P.
Output transformer use imported 0.35 audio dedicated core, stacked thick 86-50 core, the magnetic flux of 13,000, domestic core can only do 7000.
Output transformer use potting techniques, epoxy potting, moisture, vibration, especially for the southern coastal areas.
Double chassis design. First with 1.2 stainless steel,  the internal use both strengthen U-shaped steel chassis thickness up to 2.4 mm thick, 70 kg man stand above are not deformed.

Output Power: 18W * 2 (ultra-linear connection).
Frequency response: 20Hz – 35KHz.
Output Impedance: 4,8 Ω.
Total Harmonic Distortion: ≤ 1% (1kHz).
Input Sensitivity: 750MV.
Input impedance: 100KΩ (three sets of input signals)
Dimensions (W × D × H): 366 × 300 (including knobs) × 185mm.
SNR: 89dB.
Weight: Approximately 19.5 kg (114 power transformers, export version).
