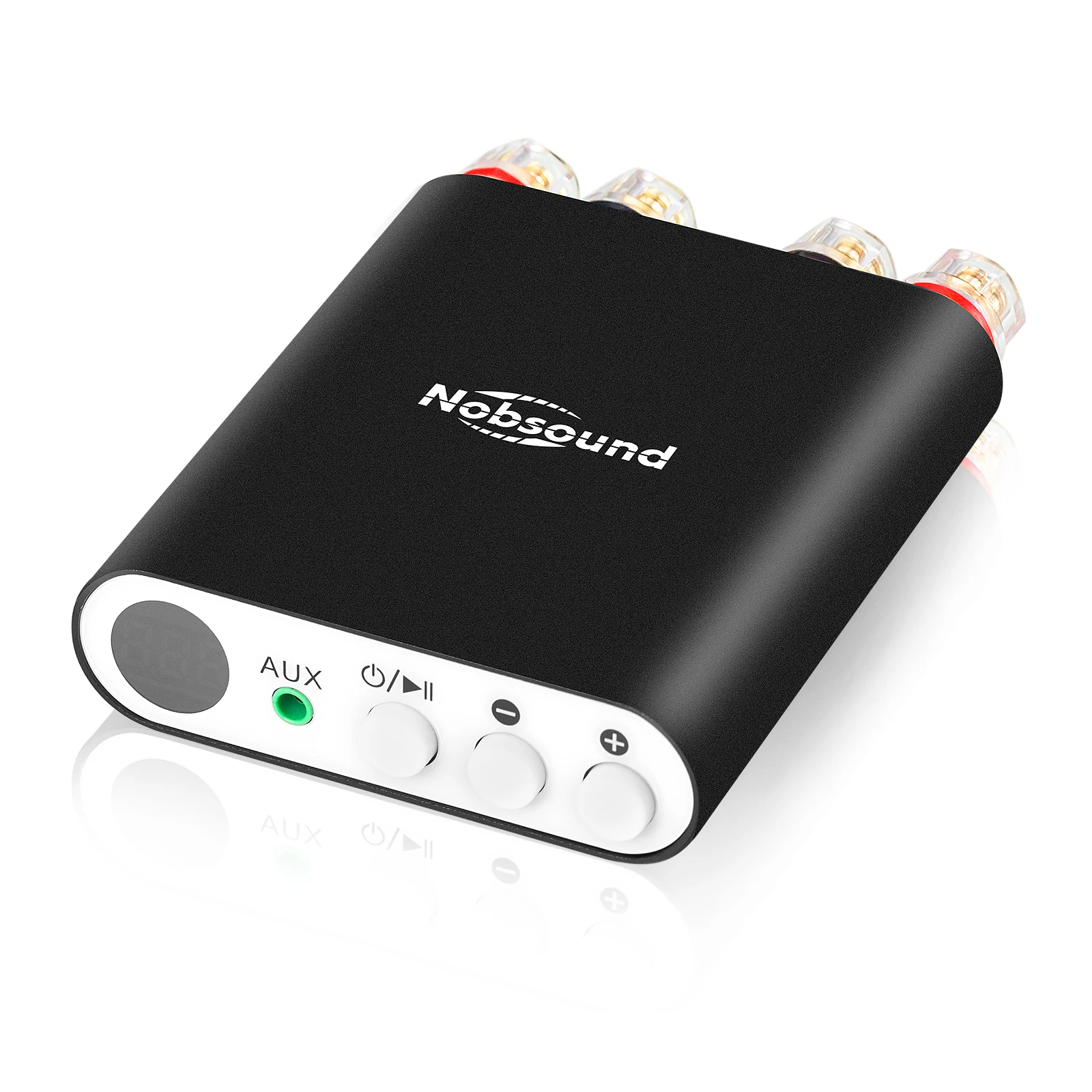

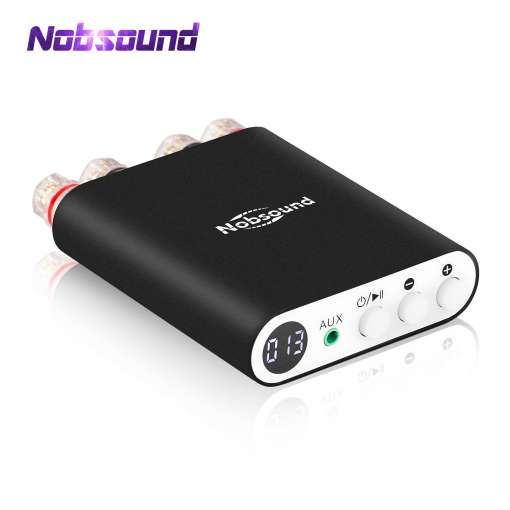

Mini bluetooth 5.0 DSP digitaalne võimendi

Suurus: 78*90*23mm

Features

Mini size but strong output power: adopting TPA3221 chip, much better than TPA3116 in power and performance, each channel can output up to 100W, easily to drive 3”-10” speakers, low heat emitting even when powering floor-standing speakers.

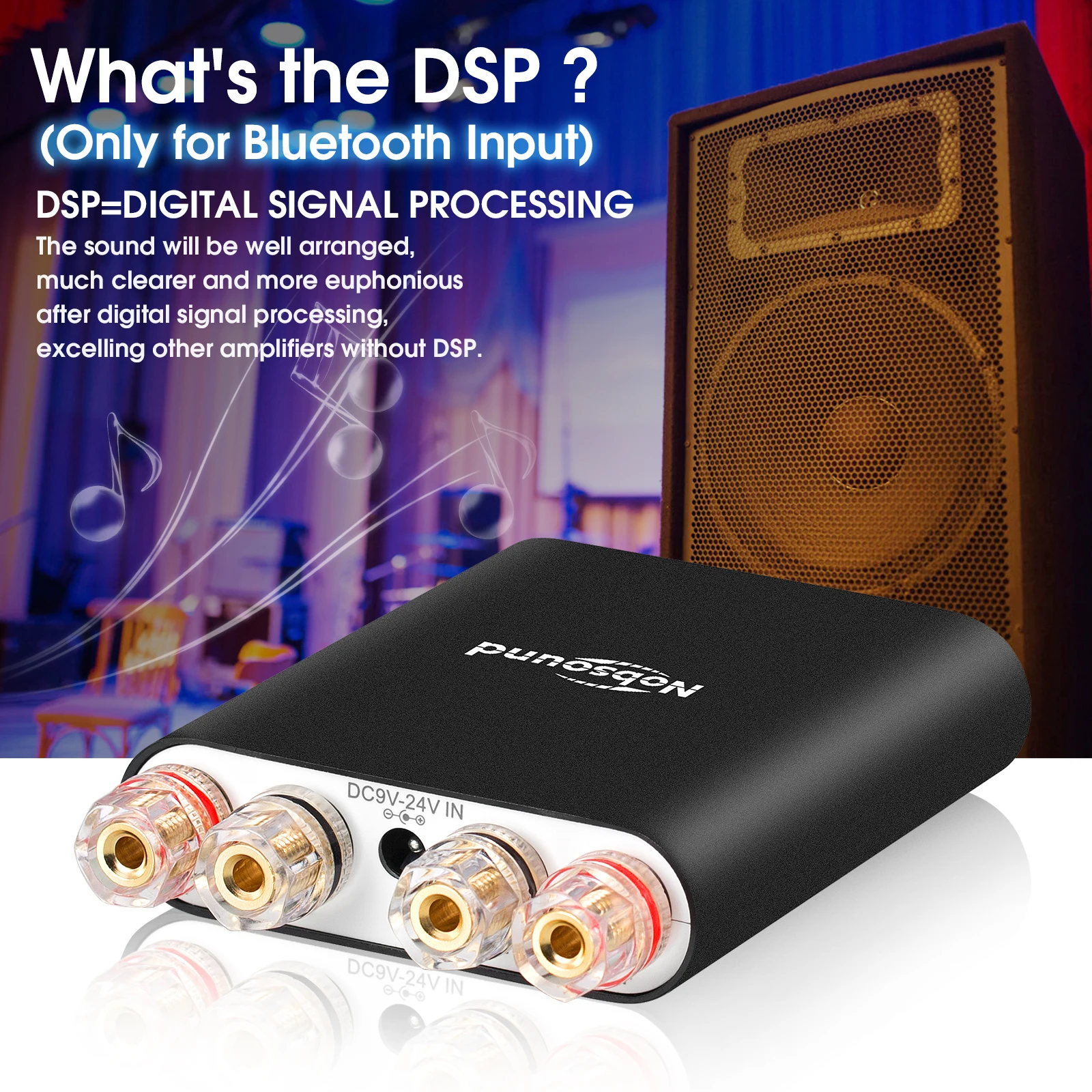

Stable and better sound quality: Bluetooth 5.0 version chip with DSP (digital sound processing), up to 50ft connection range makes HiFi music with low signal delay, the sound is clear, no pop and no audible noise via Bluetooth input.

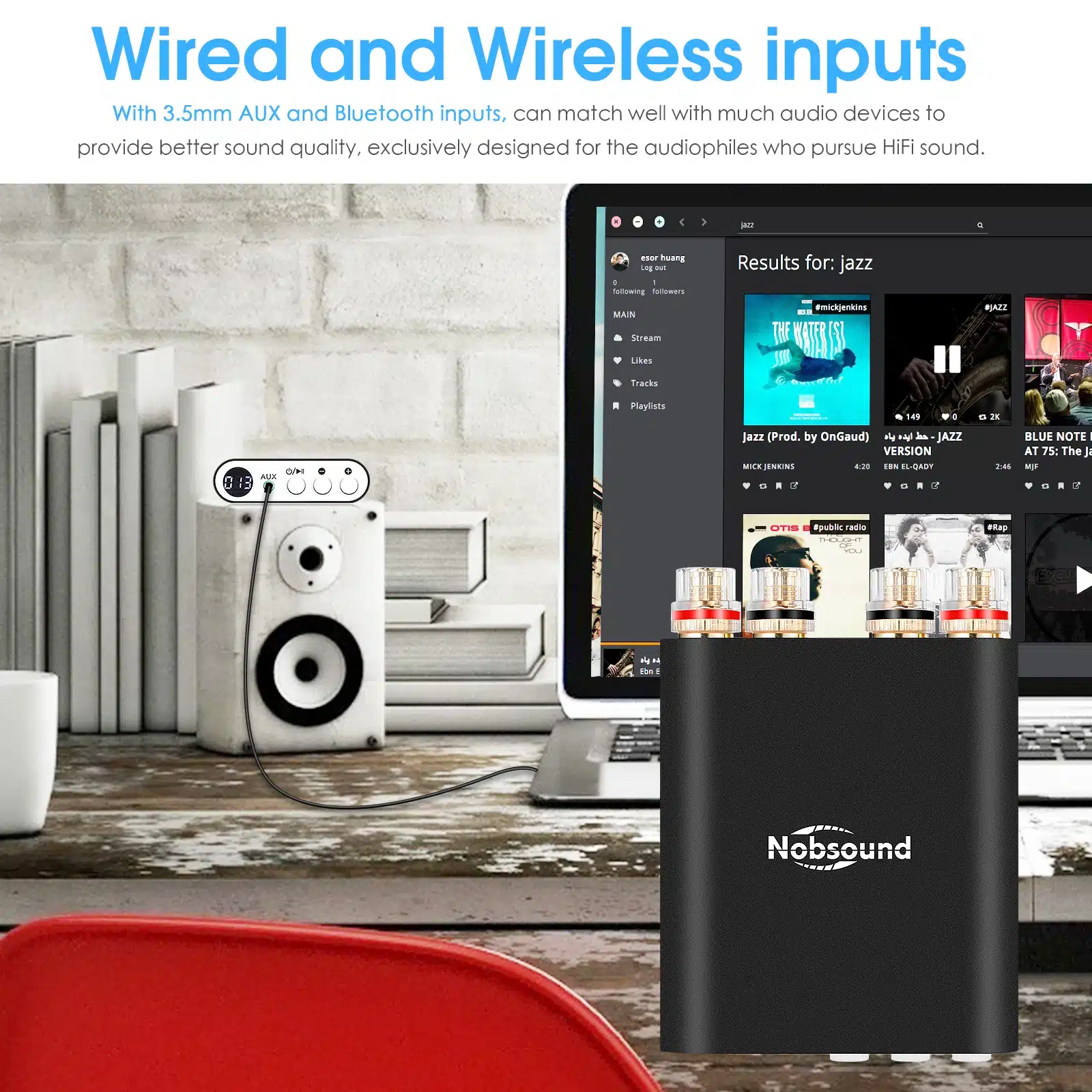

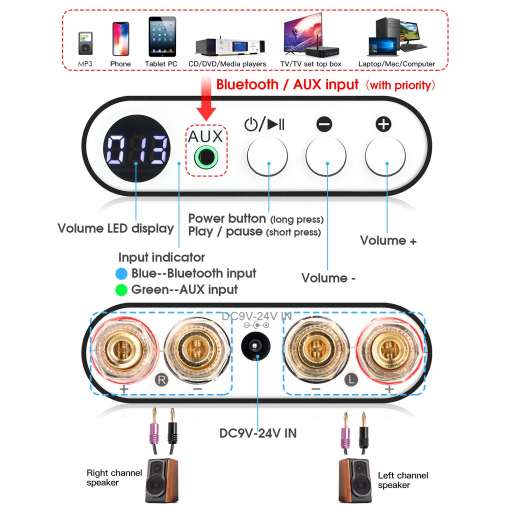

Wired and Wireless inputs: with 3.5mm AUX and Bluetooth inputs, can match well with much audio devices to provide better sound quality, exclusively designed for the audiophiles who pursue HiFi sound.

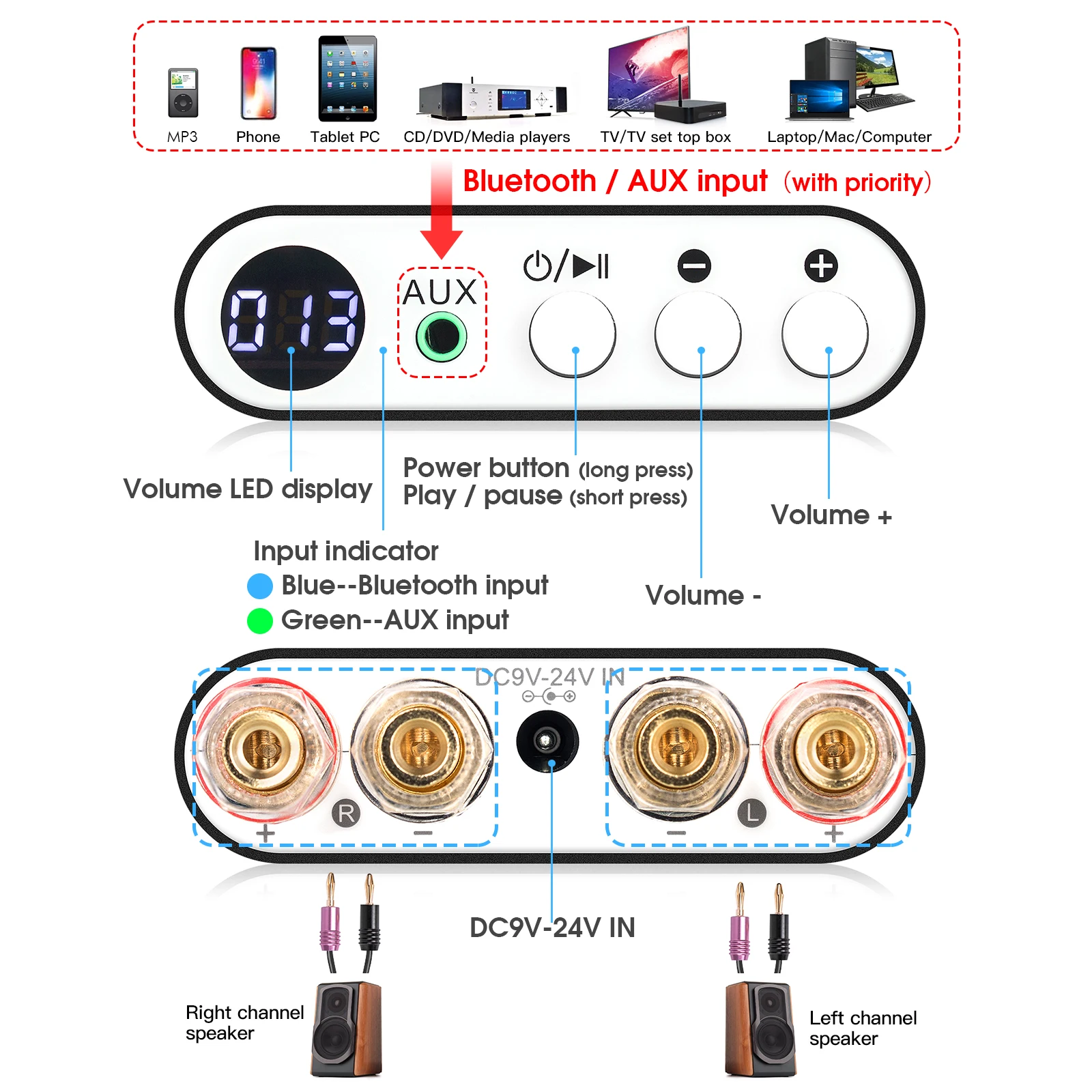

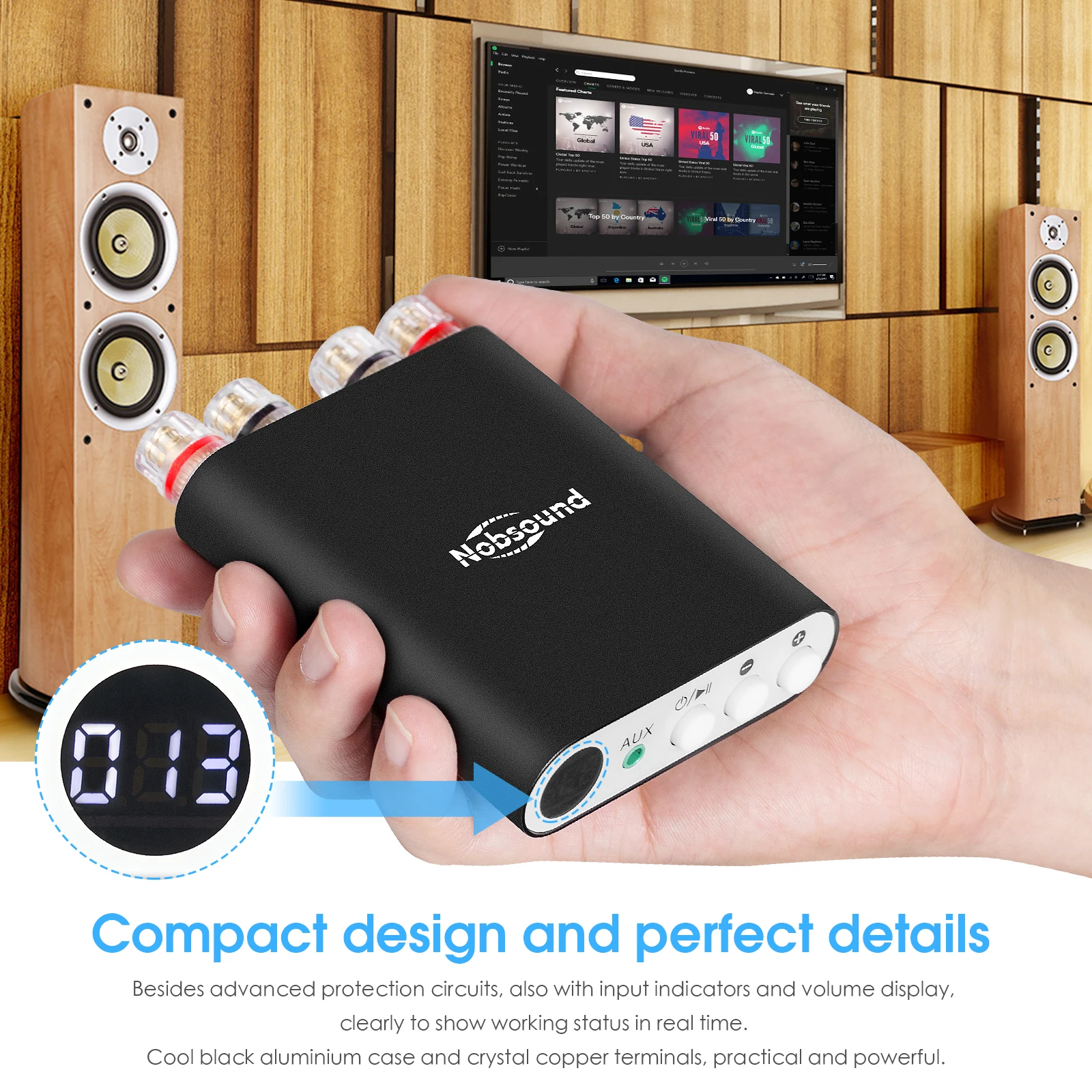

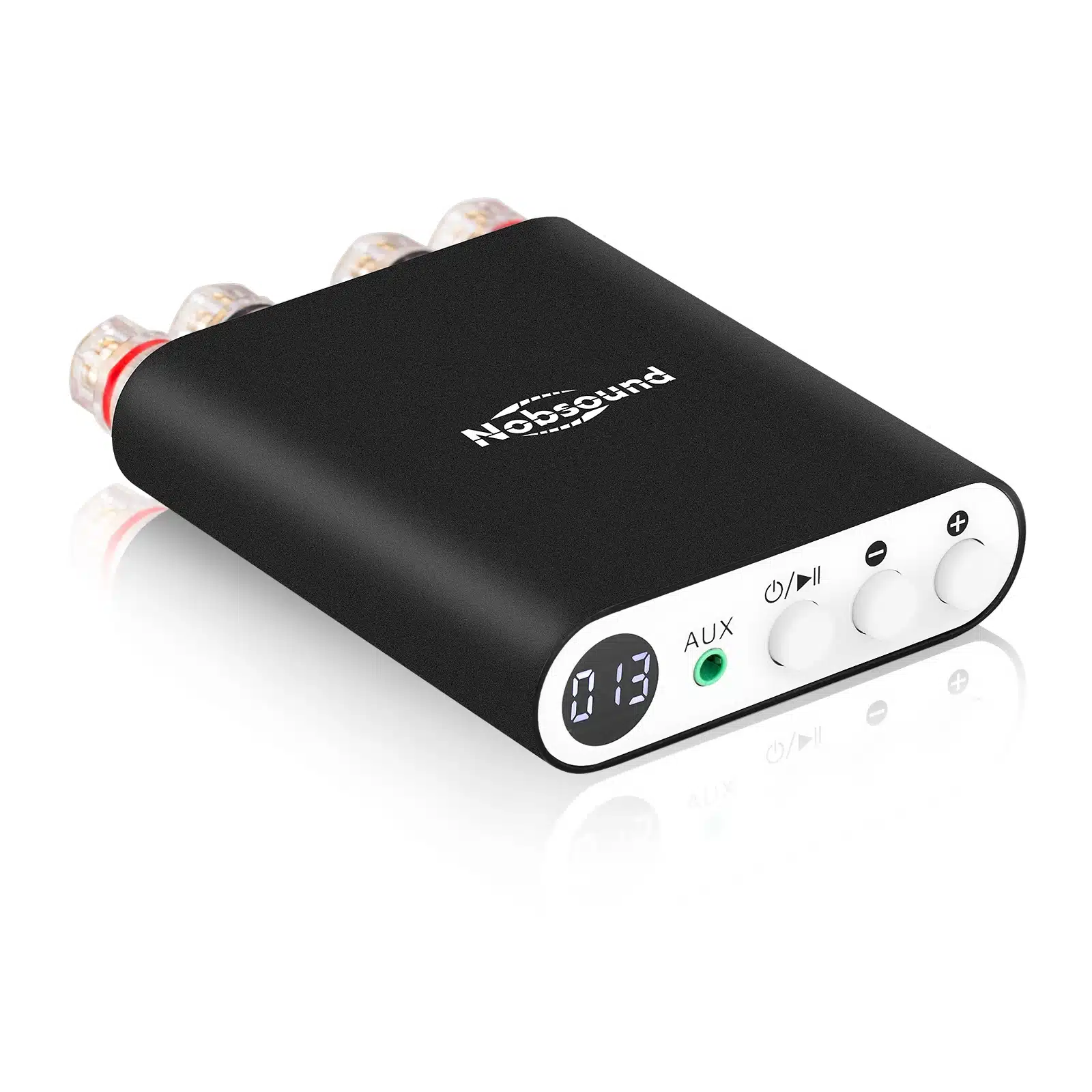

Compact design and perfect details: besides advanced protection circuits, also with input indicators and volume display, clearly to show working status in real time. Cool black aluminium case and crystal copper terminals, practical and powerful.

*DSP is only for Bluetooth input, AUX input without this function.

Warm tips:

1. The minimum power that can drive TA-21 amplifier is 50W, default equipped with 24V/3A power supply, which is enough for most home speakers.

2. When plug in AUX cable, TA-21 will default enter AUX input mode. If you want Bluetooth input, please plug out AUX cable.

3. If there is an outage during use, that means the power supply is too small to drive the speaker, please change larger power supply or turn down the volume.

Parameters:

Brand: Nobsound
Model: TA-21
Audio input: 3.5mm AUX / Bluetooth
Audio output: banana speaker jacks
Bluetooth version: 5.0
Max output power: 100W+100W
Amp IC chip: TPA3221
Matched speaker: 3”-10”/ 4-8Ω
Frequency response: 80Hz-20KHz
Working voltage: DC 9V-24V / 3A or above
Minimum input power: 50W
Dimensions(W*D*H): 78*90*23mm / 3.07*3.54*0.91in
Net weight: 143g / 0.32lb
Package weight: 600g / 1.32lb

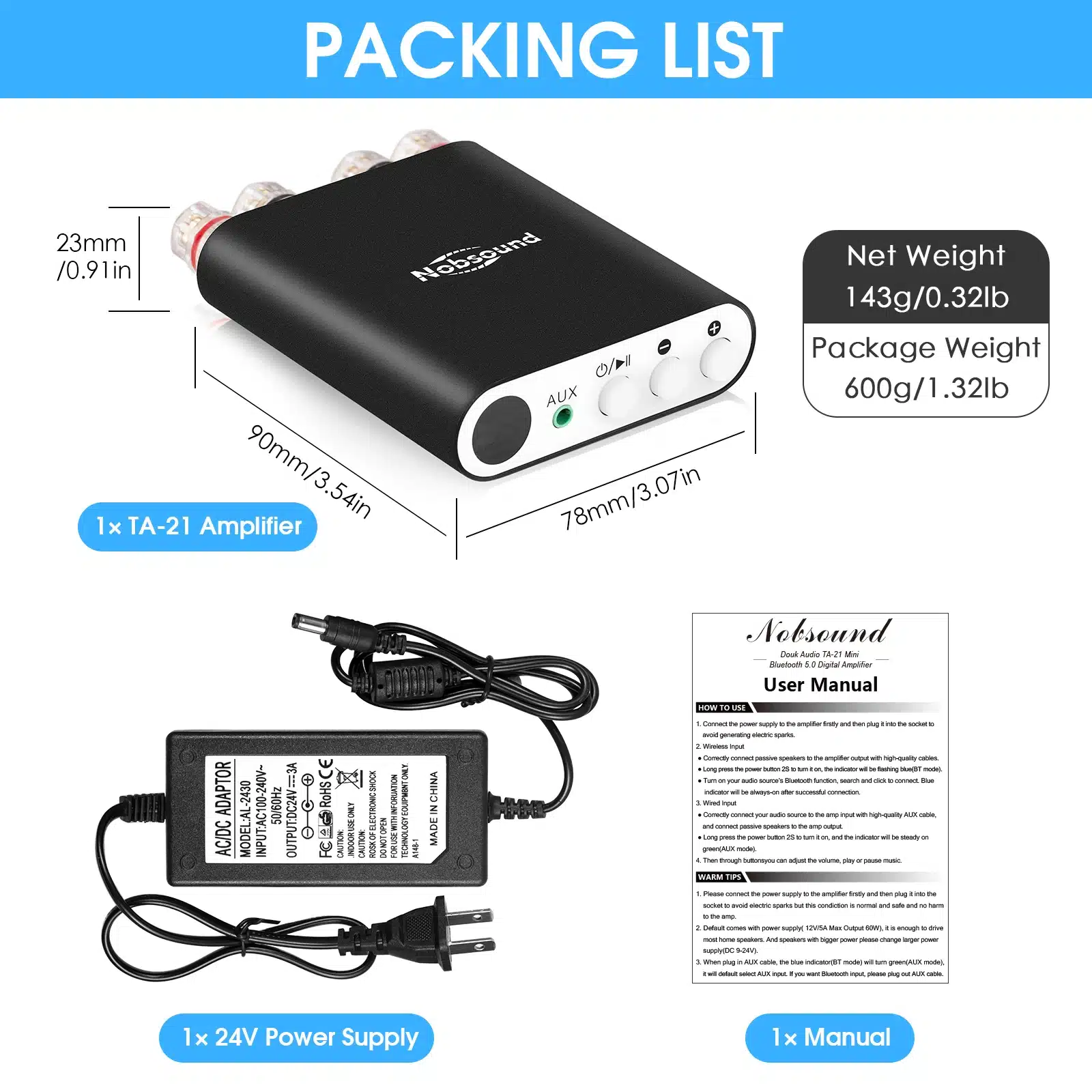

Packing List:

1× TA-21 Amplifier
1× 24V Power Adapter
1× Manual
