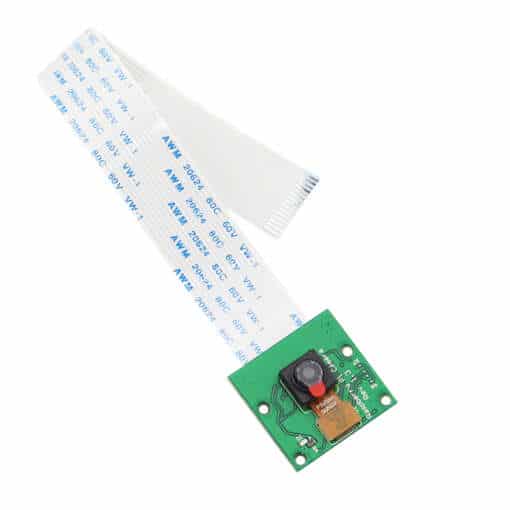

Raspberry Pi 3 Model B + Camera Module 1080p 720p Mini Camera 5MP Webcam Video compatible for Raspberry Pi 3 2

Parameter:

Shot:1/4 5M

Aperture:2.9

Focal length:3.29

FOV: 65 degree

Sensor type: OmniVision OV5647 Color CMOS QSXGA (5-megapixel)

Sensor size: 3.67 x 2.74 mm (1/4″ format)

Pixel Count: 2592 x 1944

Pixel Size: 1.4 x 1.4 um

Lens: f=3.6 mm, f/2.9

Angle of View: 54 x 41 degrees

Field of View: 2.0 x 1.33 m at 2 m

Full-frame SLR lens equivalent: 35 mm

Fixed Focus: 1 m to infinity

Video: 1080p at 30 fps with codec H.264 (AVC)

Up to 90 fps Video at VGA

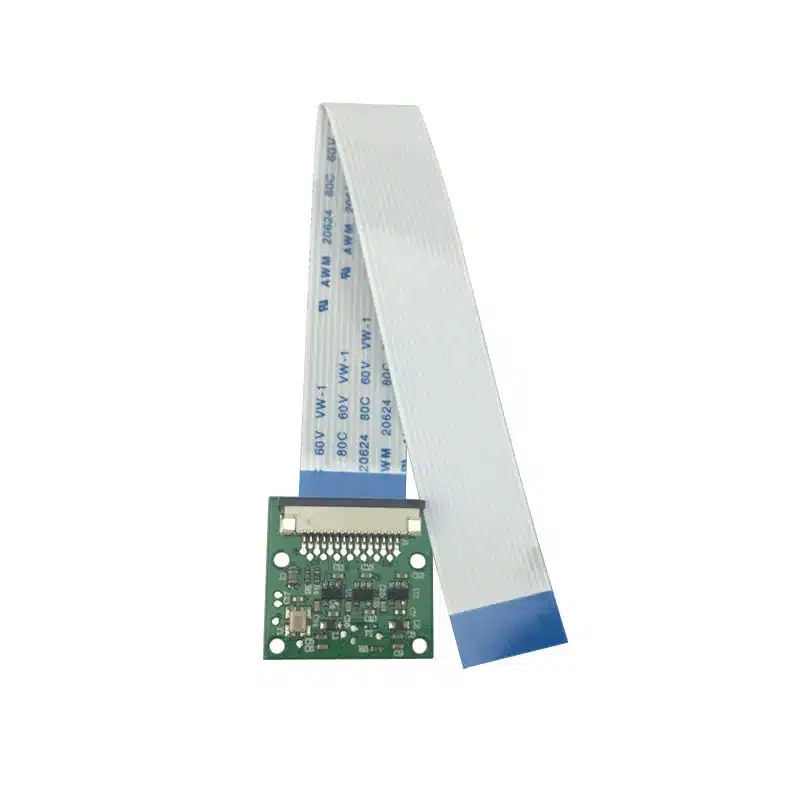

Board size: 25 x 24 mm (not including flex cable)

Support Raspberry Pi 3 Model B+

If you want to buy night version camrea,please click here to buy:

Here is the holder for the camera:

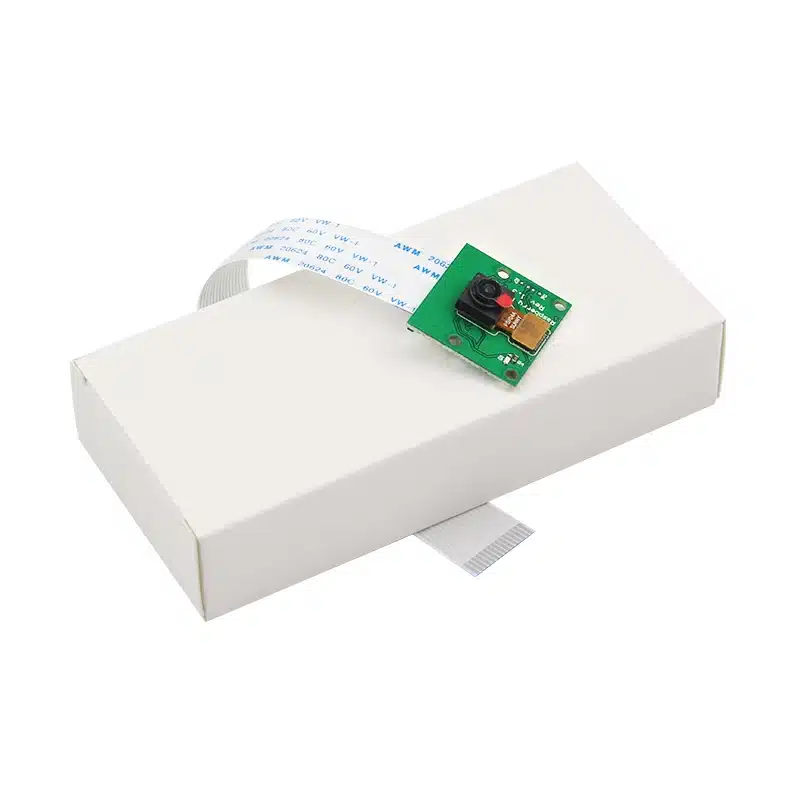

Package Iist:

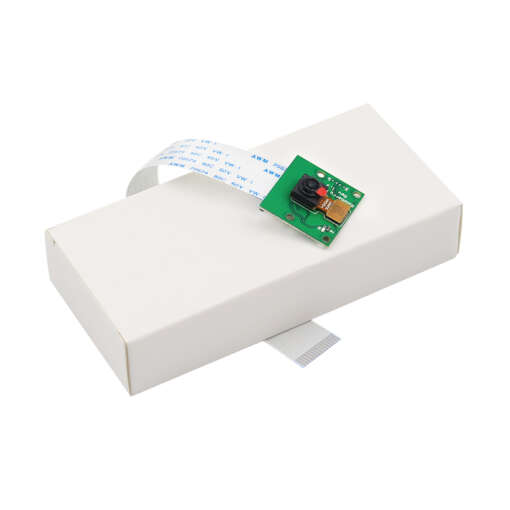

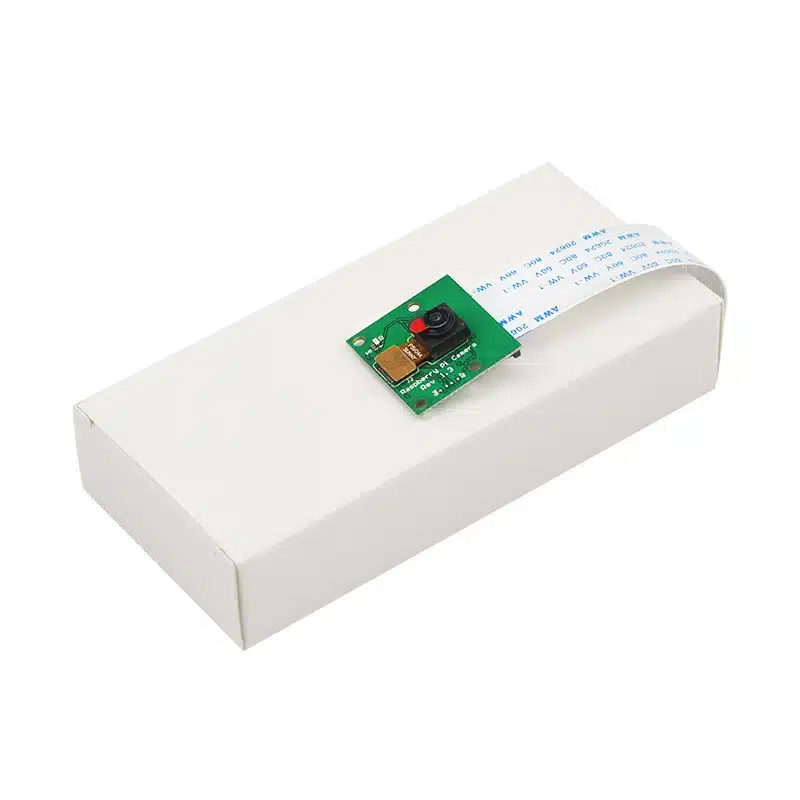

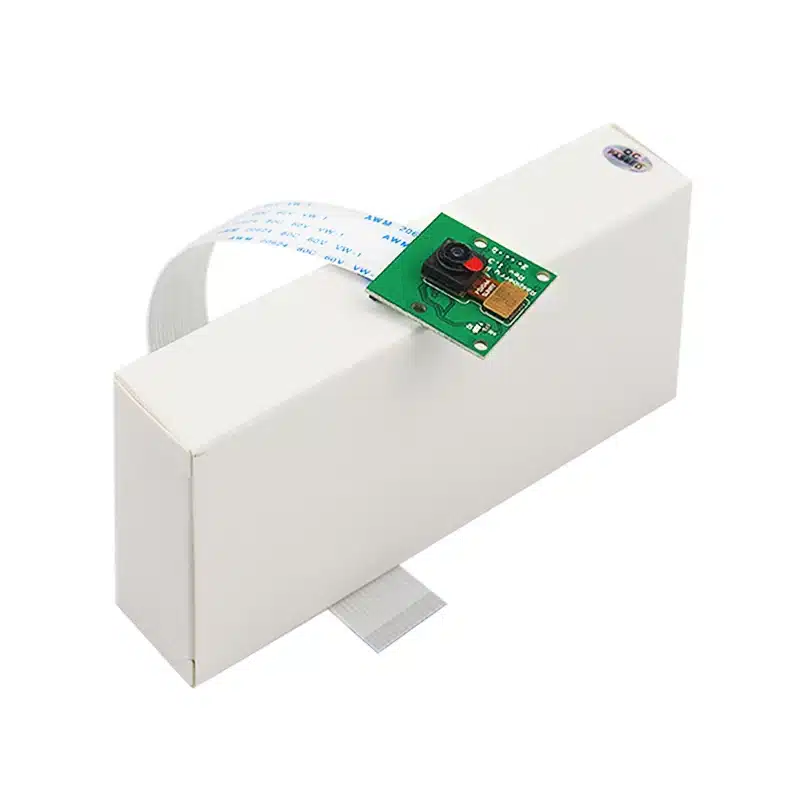

1 X 5MP Raspberry Pi Camera

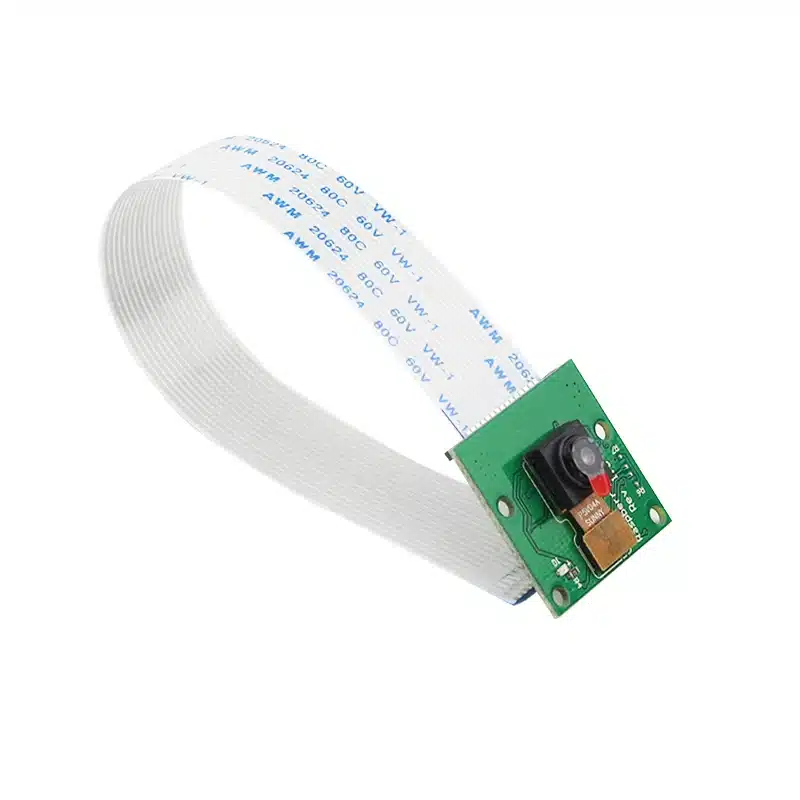

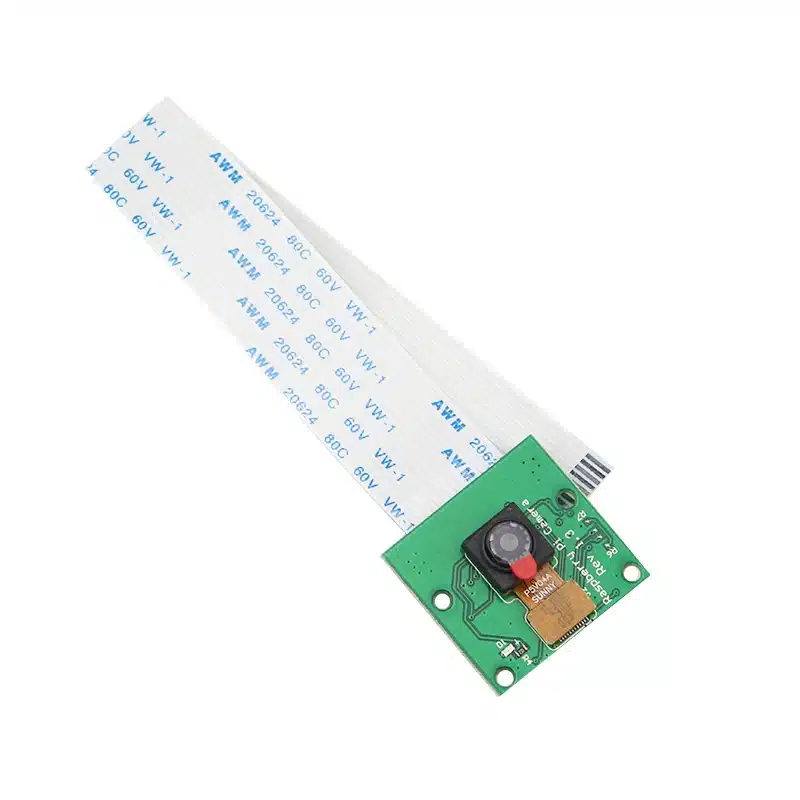

1 X 15 cm Cable

Using steps:

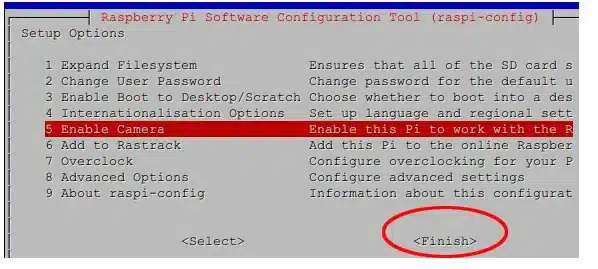

1.Please ensure the raspberry Pi system is the newer version, and open the camera function.Type the command: sudo raspi – config and check the camera function of the fifth.The picture below:

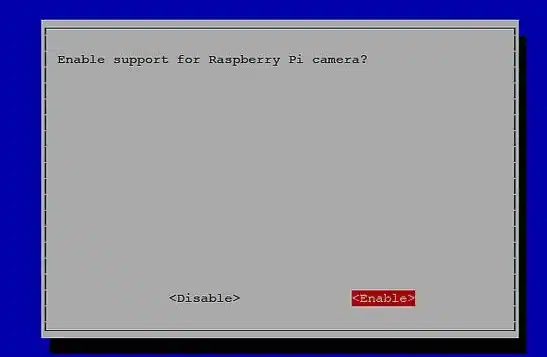

2. Then select: Enable

3. Then the system return to the interface itself. Choose the “Finish “ , it will restart , If it doesn’t restart itself , please restart it manual ( by yourself )

4. After the raspberry pi system restart , you can use raspberry pi camera now.

If you want to take photo, you can run the command : raspistill

For example,input: raspistill –t 2000 -o 1.jpg
-t: ( the time of waiting to take the photo ,5000 is five seconds). – o 1.jpg (1.jpg is command of file)

Tip:

Hardware connection: 1. Soft cable, 90-degree vertical connector, HDMI port next to it. When connecting the contact side facing the HDMI interface. 2. Remove the protective film before using the lens 3. bare boards, pay attention to ESD damage, guard against static electricity! Software: 1. RPi firmware and raspi-config has been updated to the camera, do a apt-get update; apt-get upgrade; 2. raspi-config, select the camera, start RPi firmware in the camera driver, then reboot 3. Use the command-line program raspivid and raspistill operating camera to capture video clips or images 4. The captured video clip needs to play with mplayer
