Kuumakse al. Täissagedusliku monokanali digitaalne võimendi
Suurus: 118.5*98*33 mm, L127*118*35mm
Võimsus: 300W
Features

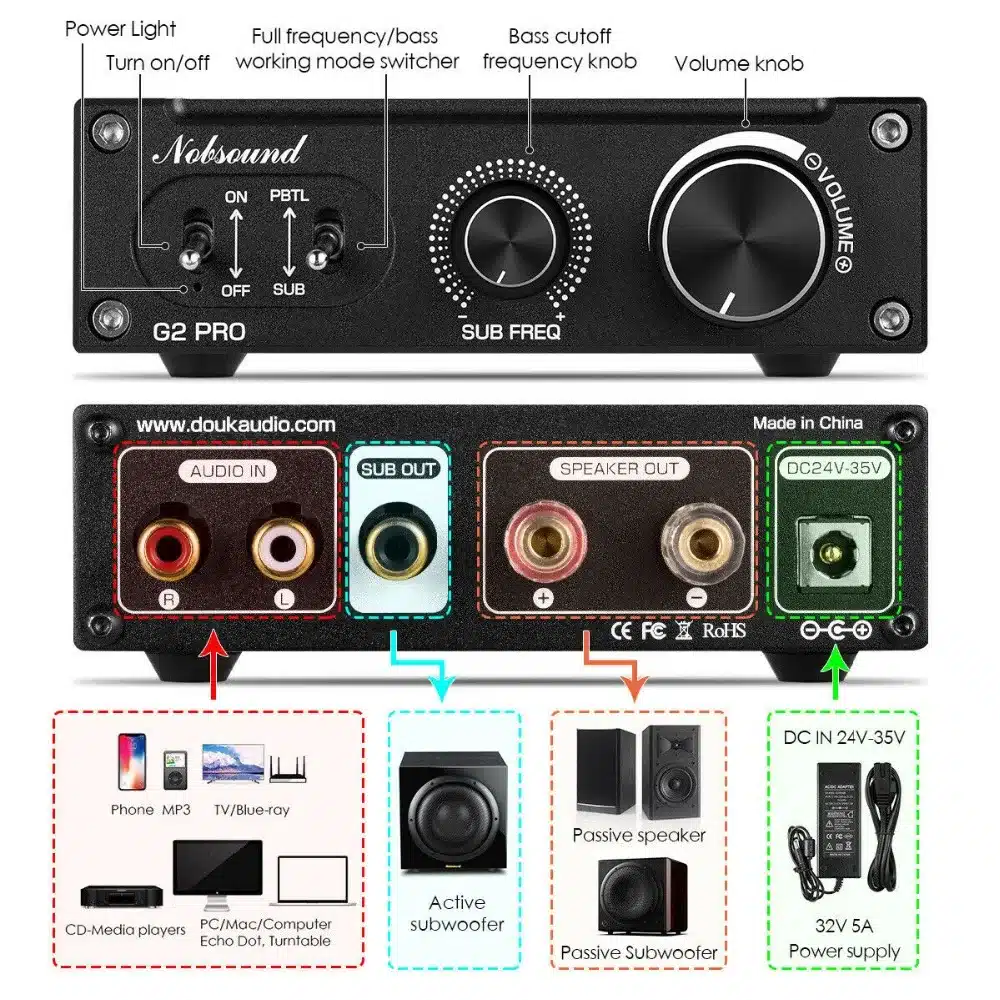

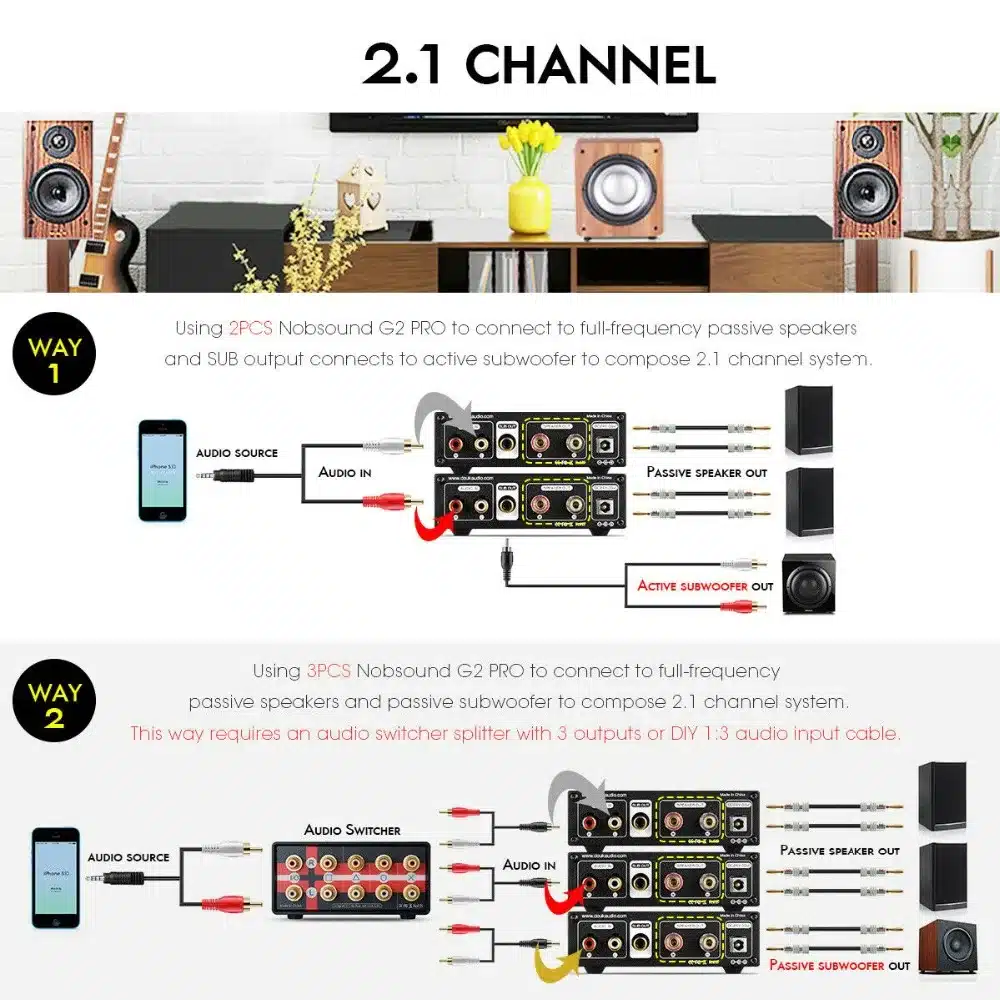

- With PBTL/SUB switch: convenient to use G2 PRO as full frequency amp or subwoofer amp, a SUB output is specially designed for active subwoofer. G2 PRO can connect to both passive and active subwoofers. And two G2 PRO can be used to drive left and right channel independently to avoid mutual interference.

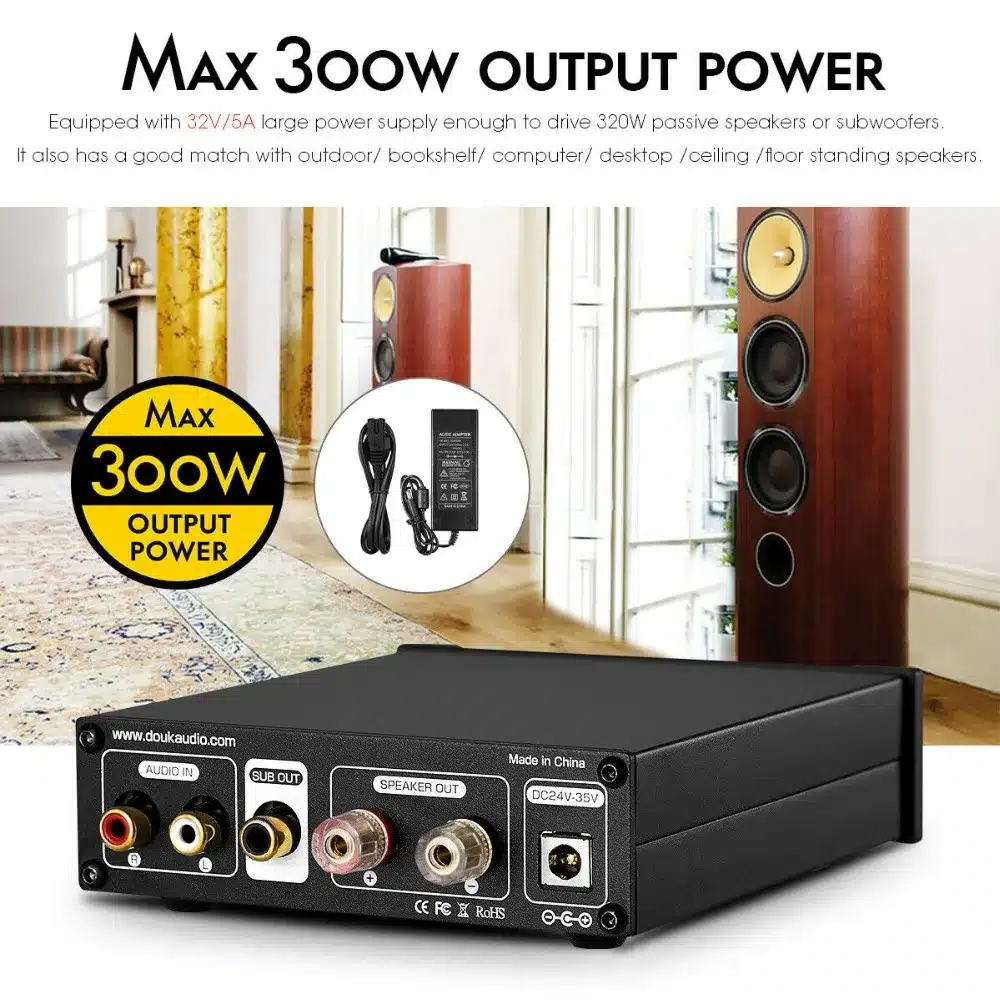

- Max 300W output power: using TPA3255D2 amp chip and equipped with 32V/5A large power supply, enough to drive 320W passive speakers or subwoofers. It also has a good match with outdoor/ bookshelf/ computer/ desktop /ceiling /floor standing speakers.

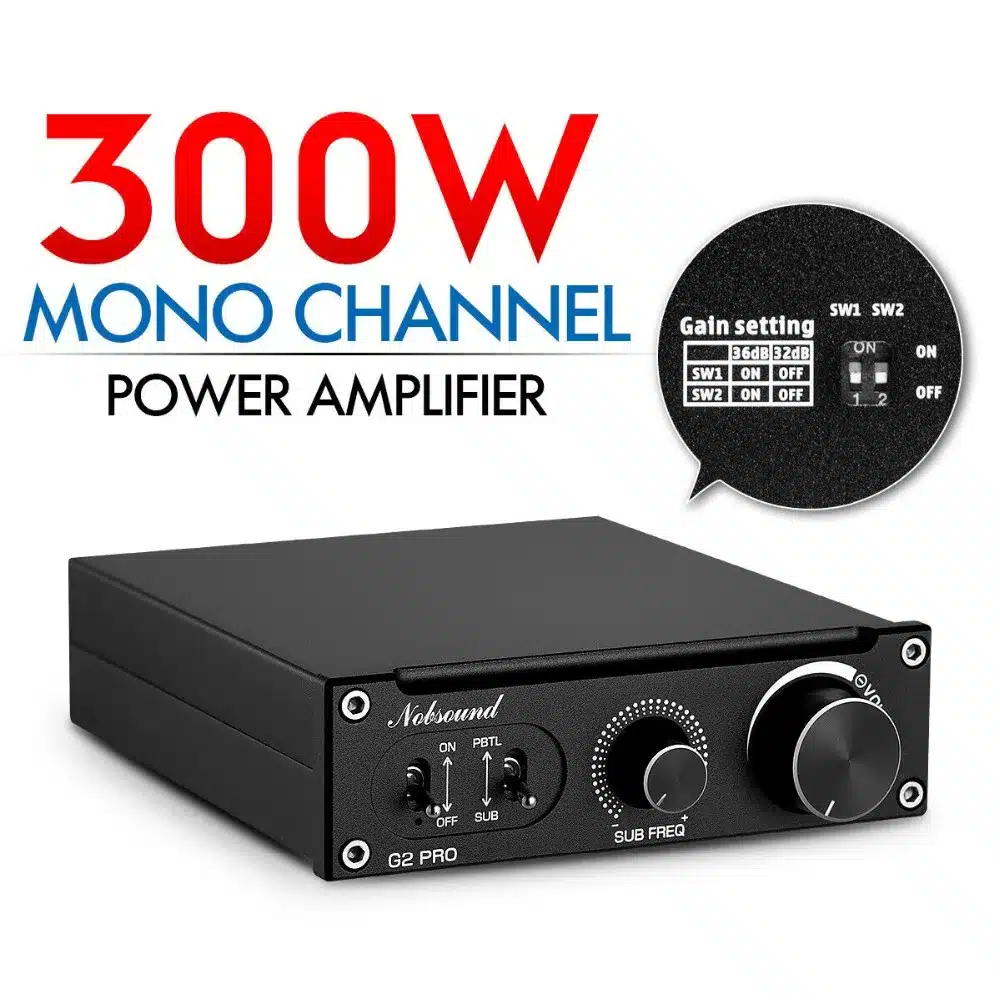

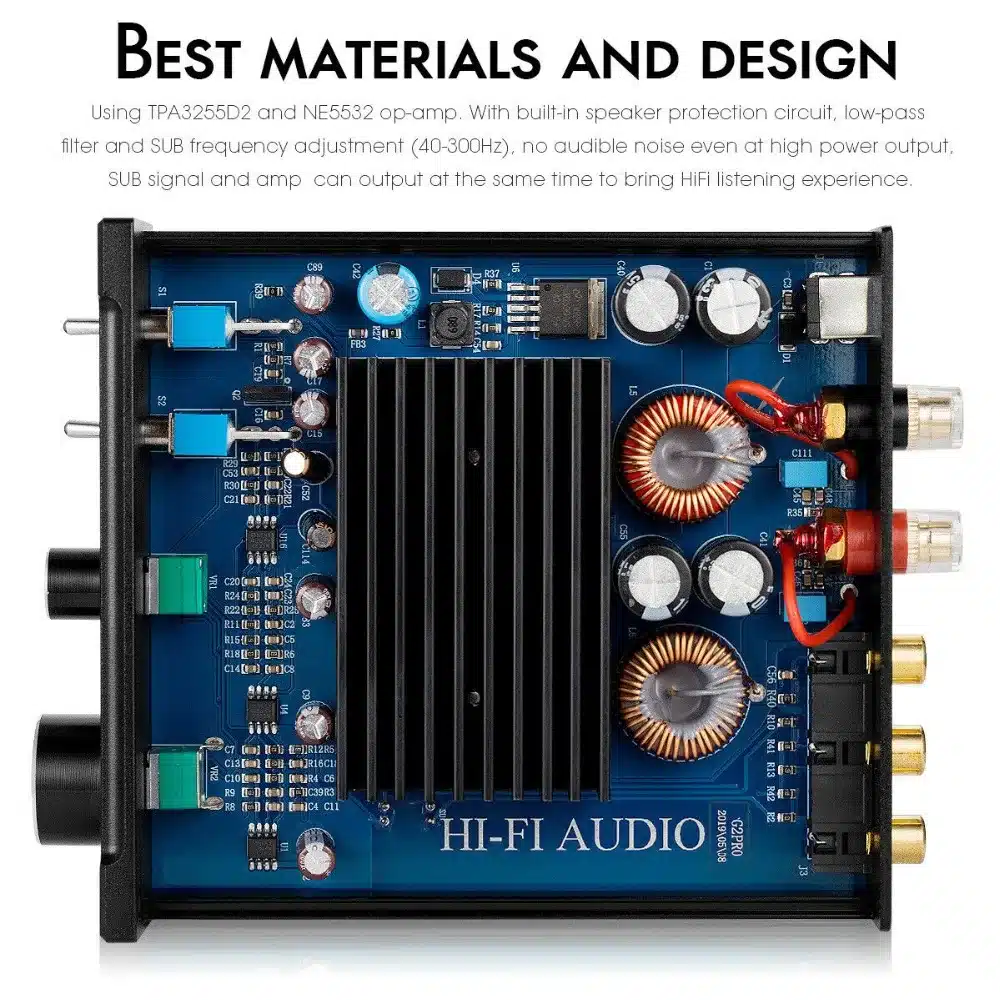

- Best design and HiFi sound: with a gain switch to allow 2-level of output level setting (32/36 dB) and SUB frequency adjustment (40-300Hz). It also has built-in speaker protection circuit, low-pass filter to guarantee no audible noise even at high power output, SUB signal and amp can output at the same time to bring HiFi listening experience.

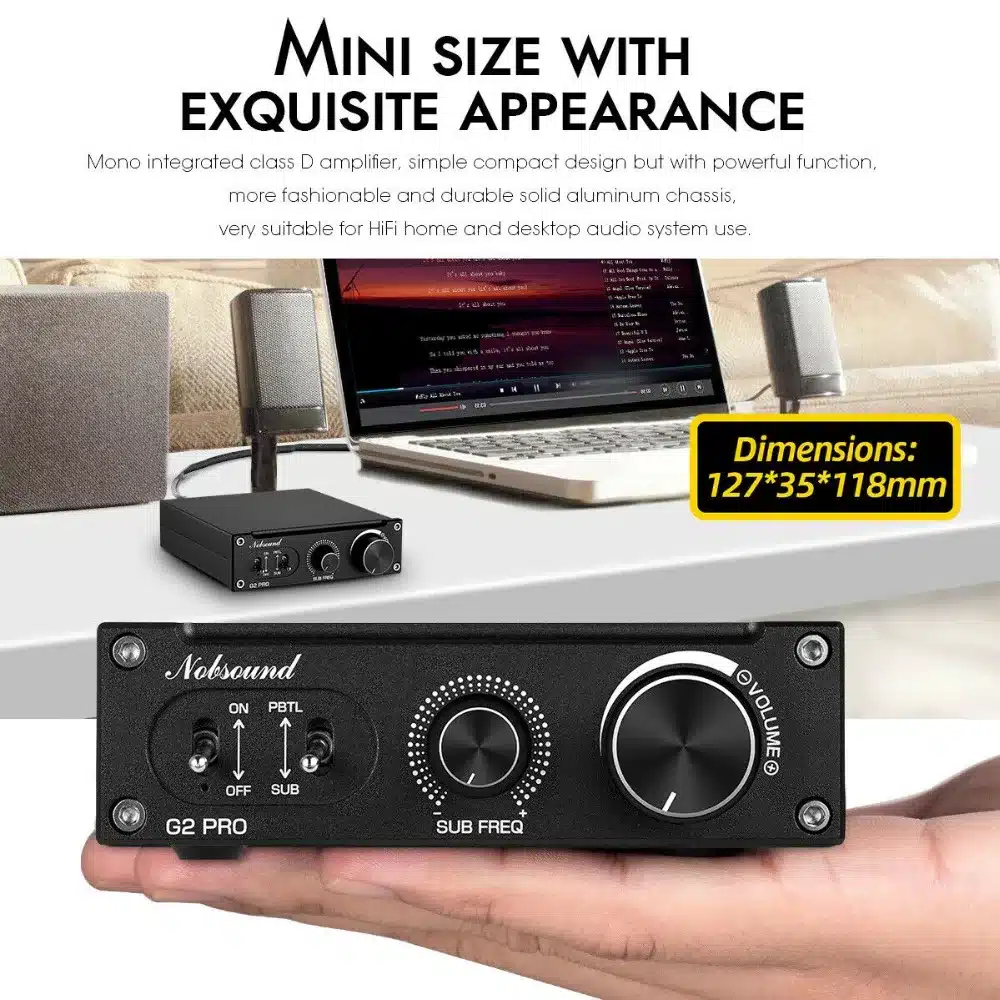

- Mini size with exquisite appearance: mono integrated class D amplifier, simple compact design but with powerful function, more fashionable and durable solid aluminum chassis, very suitable for HiFi home and desktop audio system use.
Parameters
| Max Power | 300W*1 2Ω | Full frequency response | 20Hz-20kHz(±3dB) |
| The speaker matches the impedance | 2-8Ω | THD | Output 1W @ 0.03% |
| Working Voltage | DC24-35V | SNR | ≥106dB |
| Input sensitivity | 0.775V | Product Dimension | L127*W118*H35MM |
| Bass cutoff frequency range adjustment | 40-300Hz | Net Weight | 0.5kG |
| Slope of bass attenuation | -12dB Slope | Package Size | L257*W215*H65MM |
Packing List
- 1* G2 PRO Mono Power Amplifier
- 1* 32V/5A Power Supply

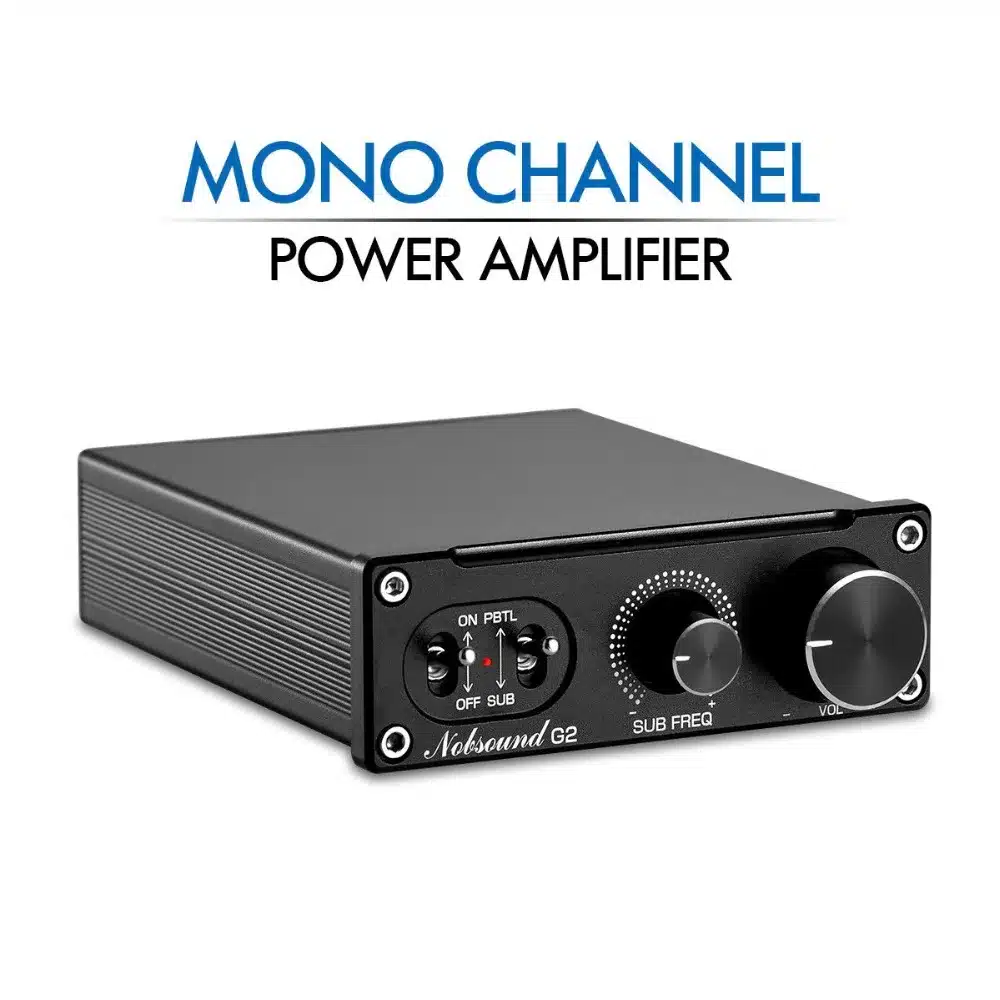

Nobsound G2 Subwoofer / Full-Frequency Mono Channel Digital Power Amplifier 100W
Features

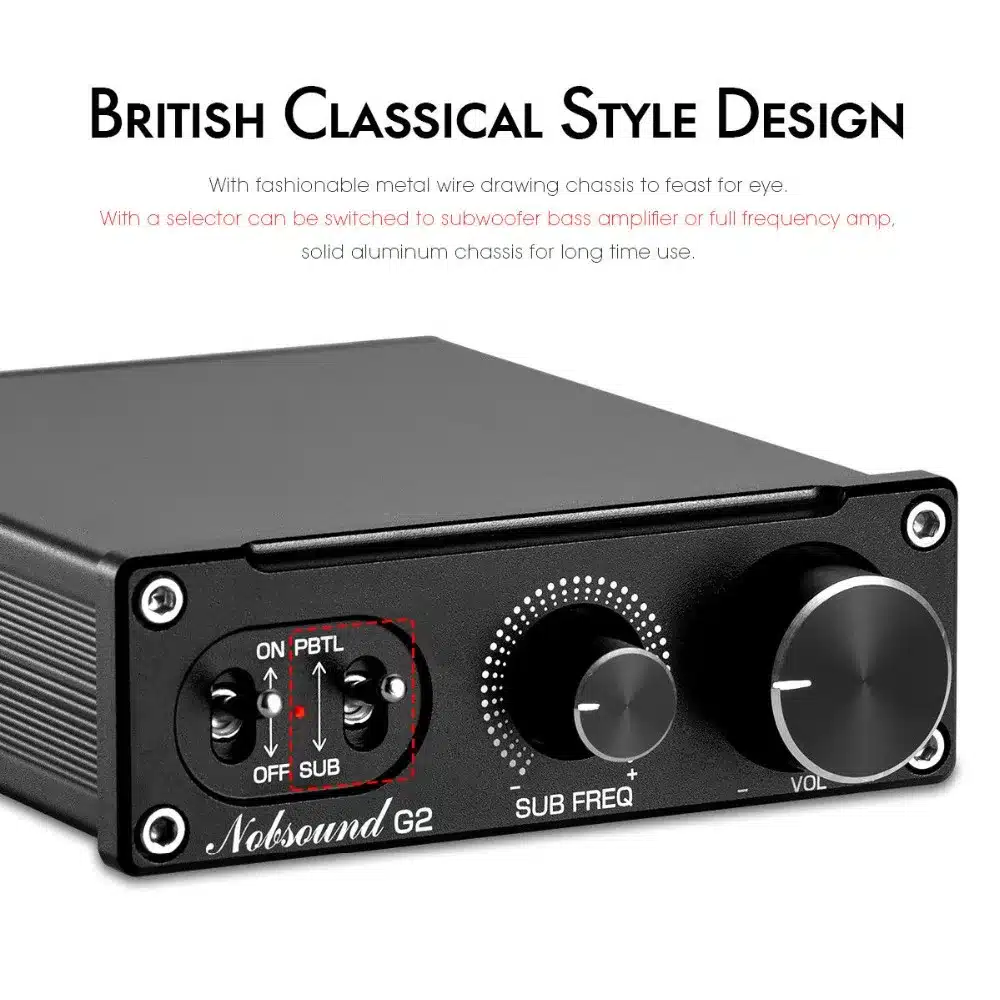

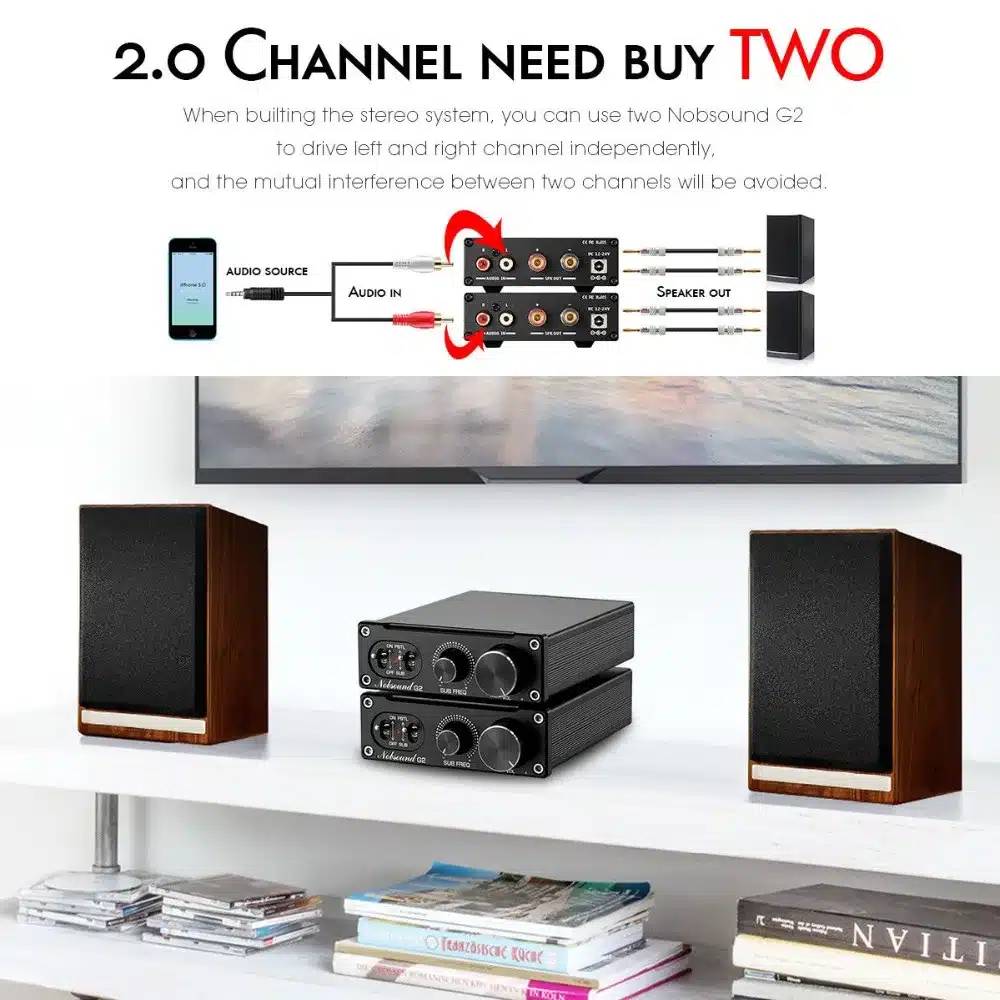

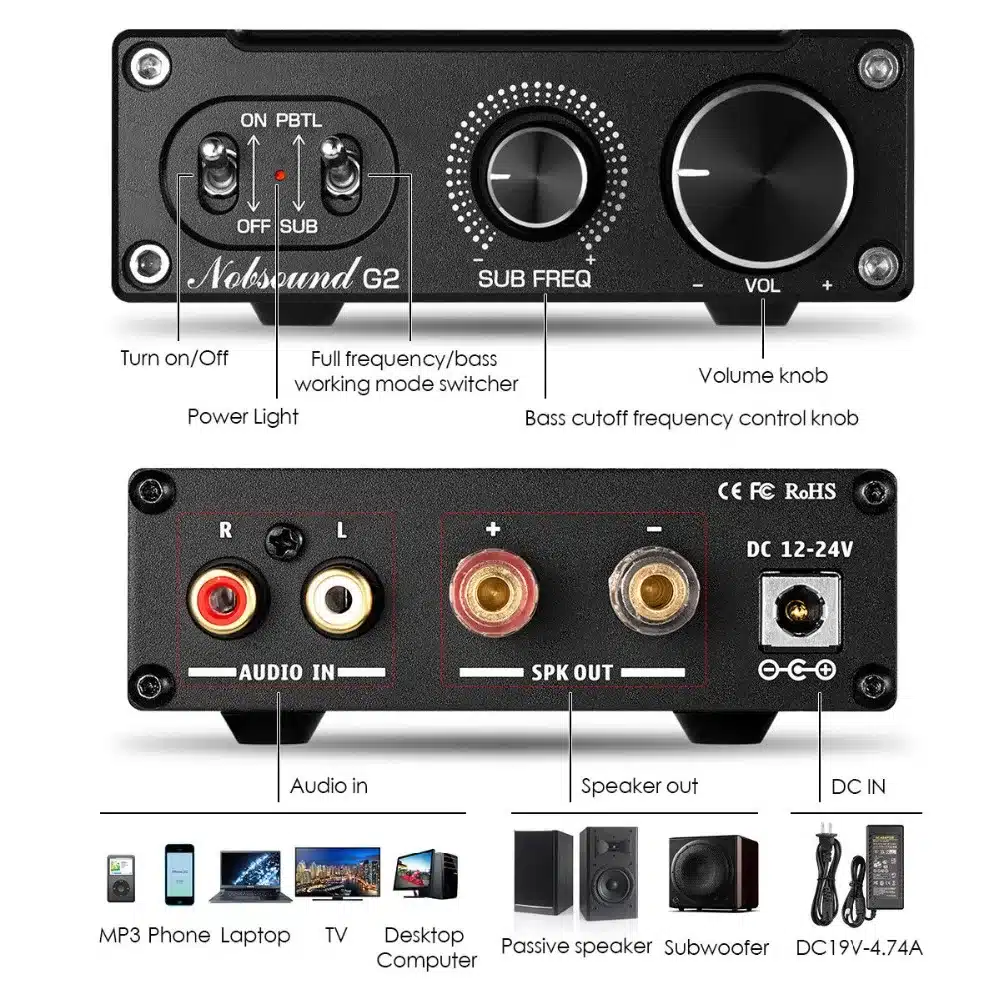

A WORKING MODE SWITCHER: convenient to use it as subwoofer bass amplifier or full frequency amp, and you can use two Nobsound G2 to drive left and right channel independently, and the mutual interference between the channels is suppressed.

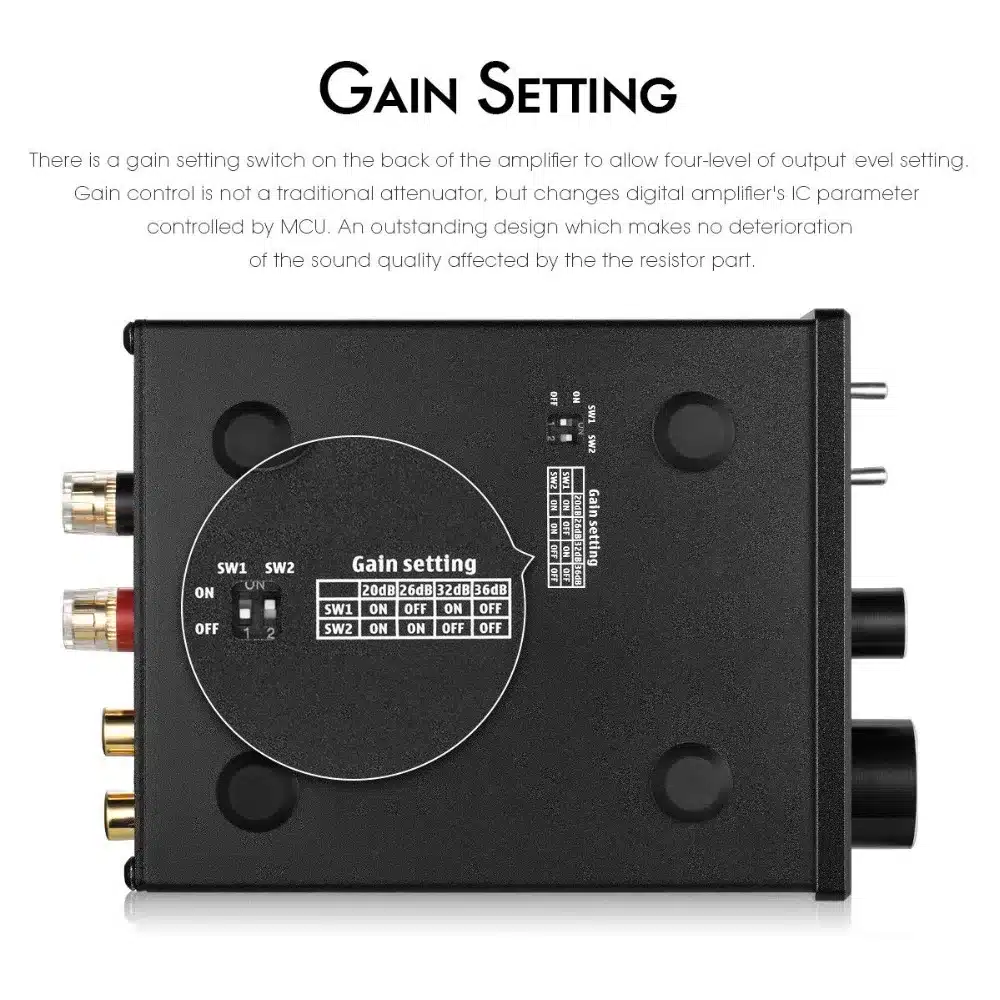

GAIN CONTROL: a gain switch on the bottom of the amplifier to allow 4-level of output level setting (20/26/32/36 dB), to keep the sound quality better and not affected by the the resistor part.

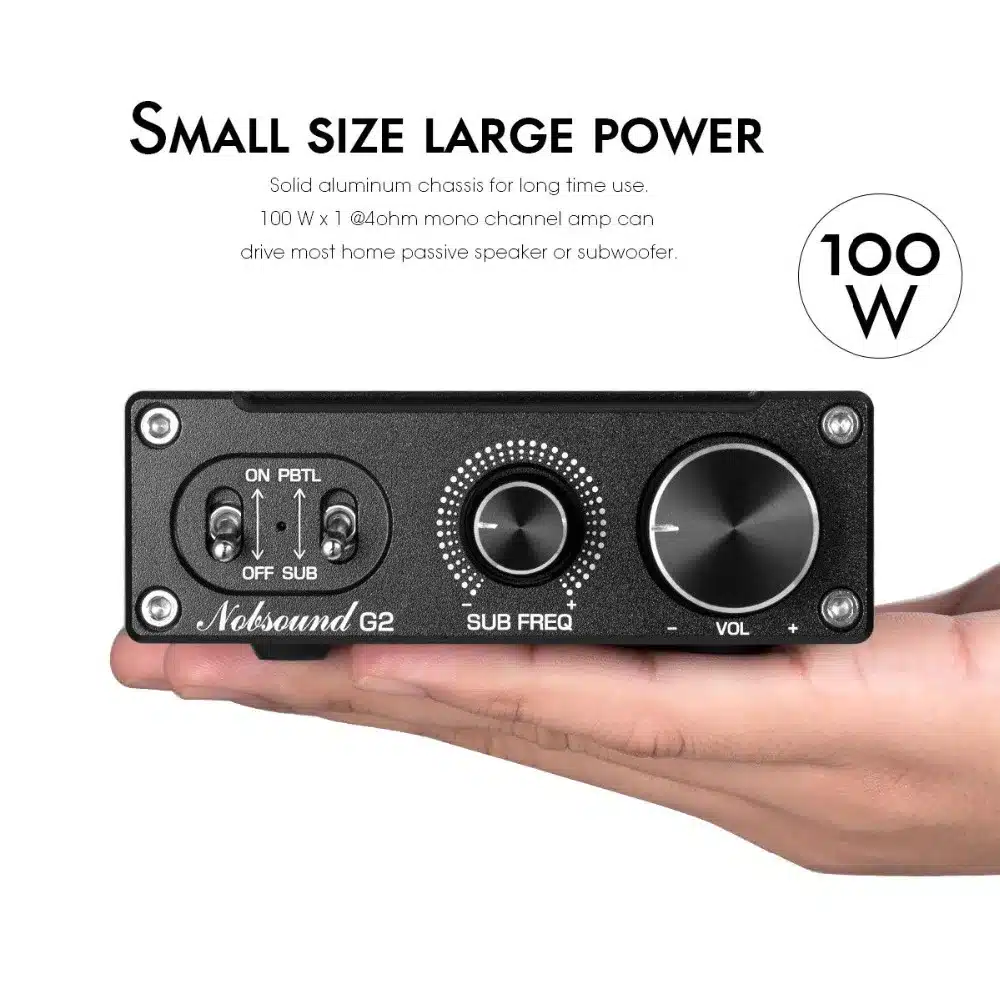

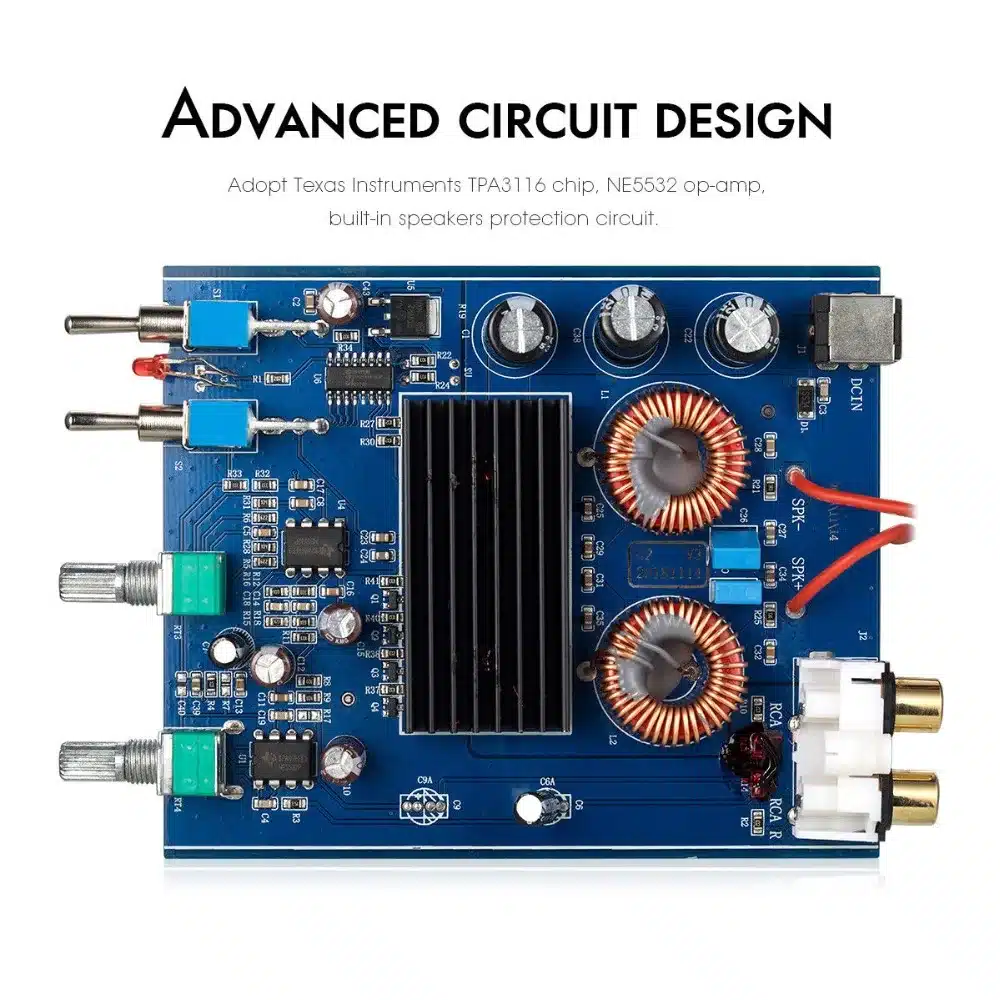

HIGH-END MATERIALS AND LARGE POWER: Texas Instruments TPA3116 chip, NE5532 op-amp to guarantee no audible noise, 100Wx 1 @4ohm mono channel amp can drive most home passive speaker or subwoofer, bringing HiFi listening experience.
EXCELLENT CORCUIT AND APPEARANCE DESGIN: built-in speakers protection circuit, solid aluminum chassis for long time use; built-in low pass filter for subwoofers with sub frequency control, small simple compact design but practical and powerful.
Specification
|
Max Power |
100W*1 4Ω |
Full frequency response |
20Hz-20kHz(±3dB) |
|
The speaker matches the impedance |
4-8Ω |
THD |
Output 1W@ 0.03% |
|
Working Voltage |
DC12-24V |
SNR |
≥106dB |
|
Input sensitivity |
0.2mV |
Dimension |
D118.5*W98*H33MM |
|
Bass cutoff frequency range adjustment |
40-300Hz |
Weight |
0.36KG |
|
Slope of bass attenuation |
-12dB Slope |
Package Size |
D257*W215*H65MM |

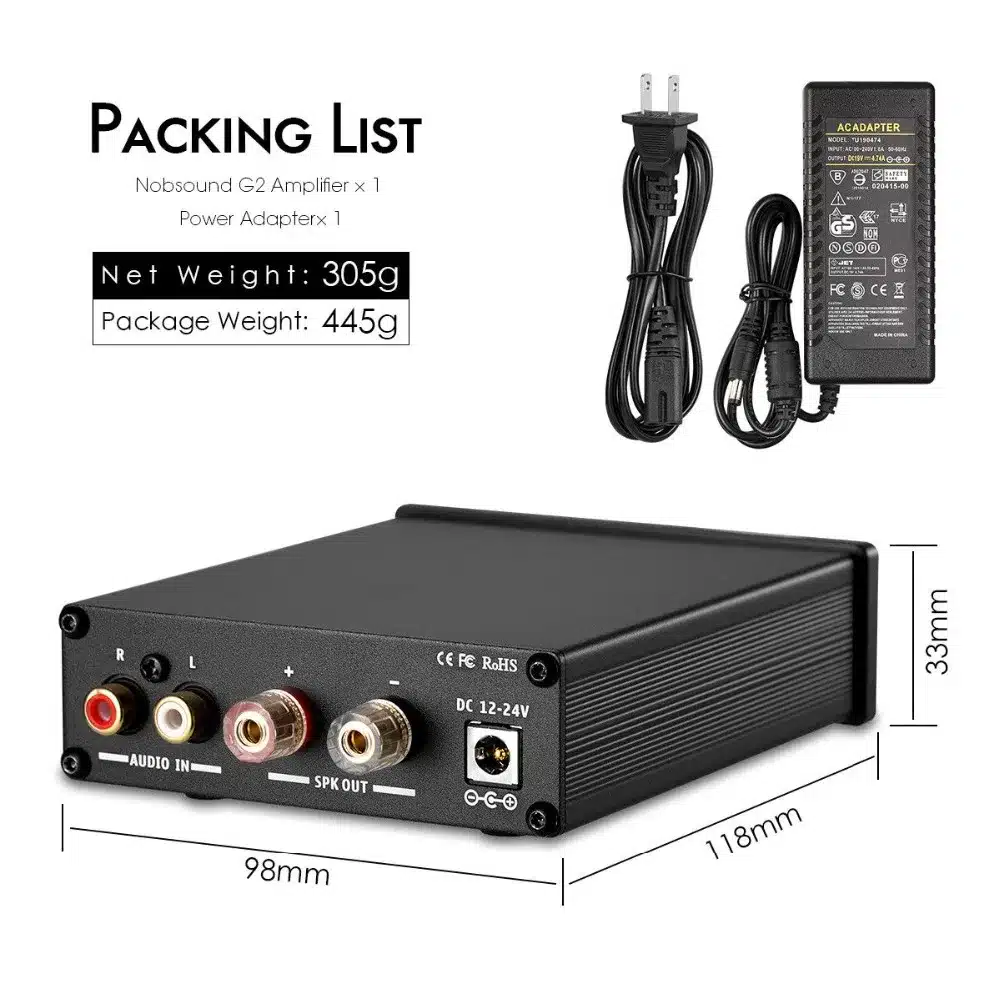

Packing List
- 1× Power Amplifier
- 1× Power Supply
