Kuumakse al. Tipptasemel Hi-Fi ventiilitoru
Kanaleid: 2
PCB suurus: 220*290*2.4mm
Product Description:
- This circuit Compatible with preamp and phono,it can control the phono part independently
- If you Buy (Finished boad Version)Well test well board (Not include the tubes )
- Recommend tubes :6X4(ez90) 1pc +12AY7(6072) 8PCS(Not includeded in the parcel )
- The transformer and other components’ parameter pls read the below circuit
- Adopting 2.4mm double gold-plated PCB ,most resistor is original DALE and Philips
- Signal channel Using TRW and GOOD-ALL Bakelite coupling capacitance,gold-plated tube socket
- the phono function can be closed independently,4 way to relay to switch the signal,Allowing the playing method which add the choke.
- PCB size :220*290*2.4mm, the board already marked the welding size of screw hole .
- The front pannel with 3 knobs ,the standard Size of 430mm*70mm( width *inner height ) chassis suit for this board
Pls Note :
- This Product Designed For The Professional Hifi Player Who can understand the Below Circuit ,The Assembled Board will be Tested Well Before Sending ,For The Technical Level is Different ,The Unsuccessful Diy Making is Beyong The Scope Of Our Warranty ,We Only Support The Technical Consulting Support ,Your Bid Or Orders Means You Agree this Declaration.
- Because everytime purchase of components may different, so the objects may have difference with pictures, but the quality and performance is the same.
- This board need you have electronic technology and detectability,it’s special designed for Hi-End HiFi Audiophile.

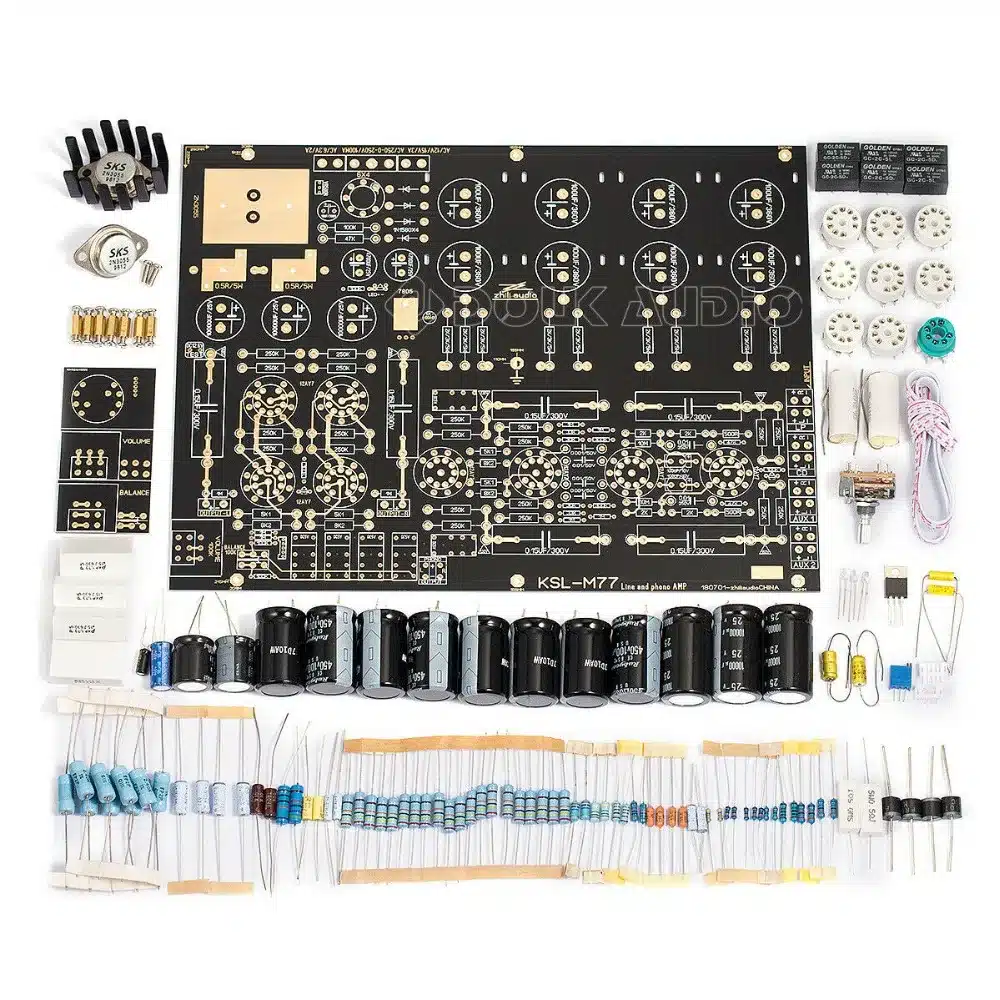

Pls note this is Diy Kit,The following picture just reference

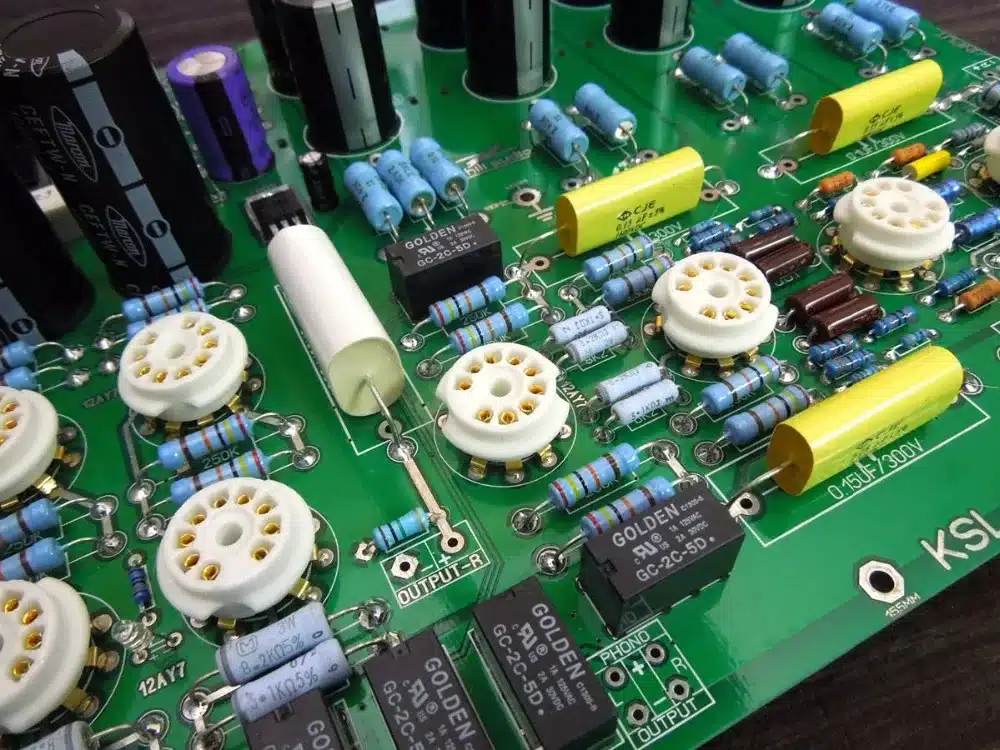

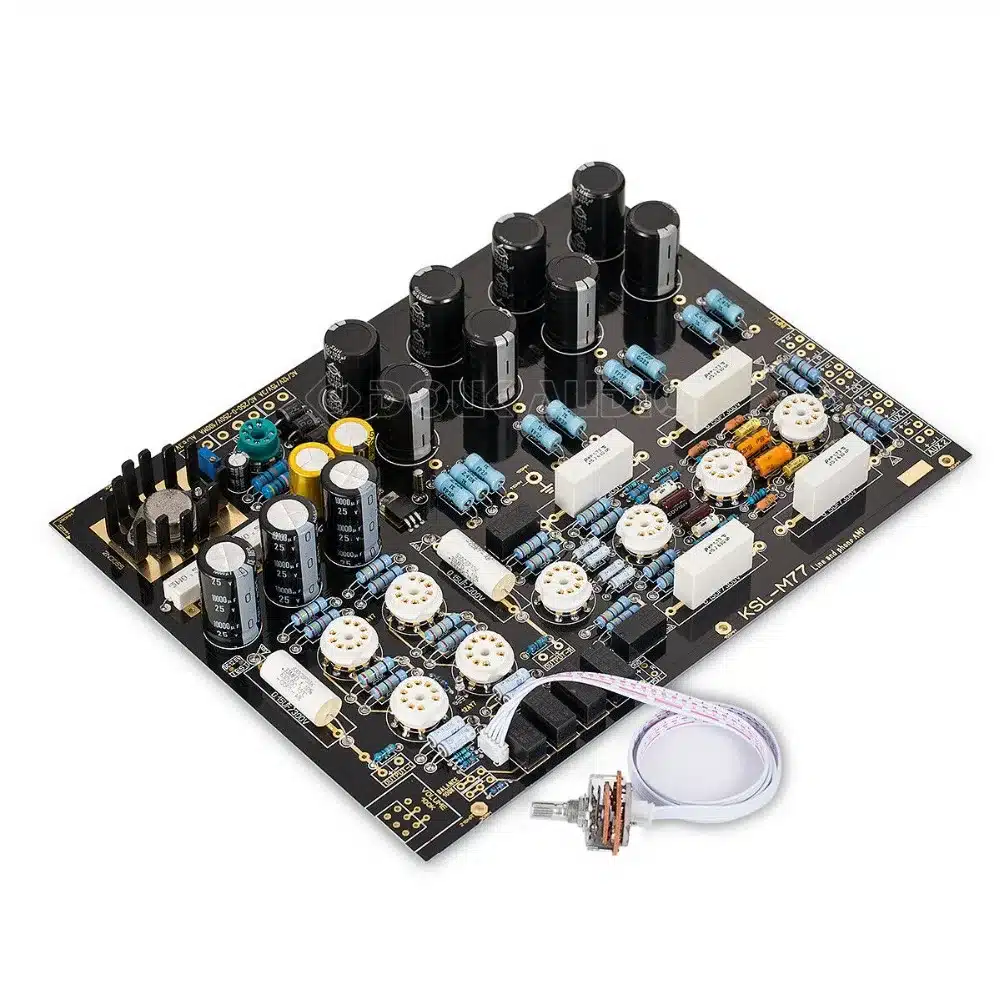

Finished Board Version

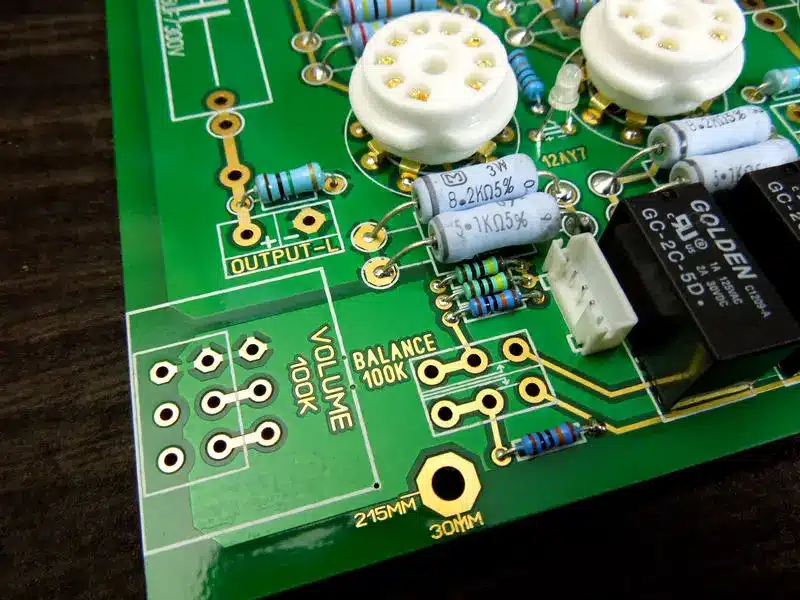

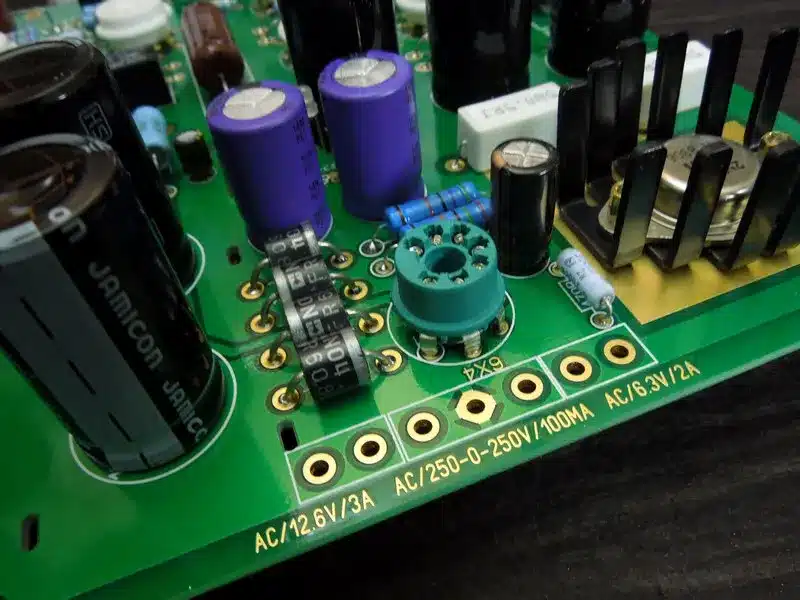

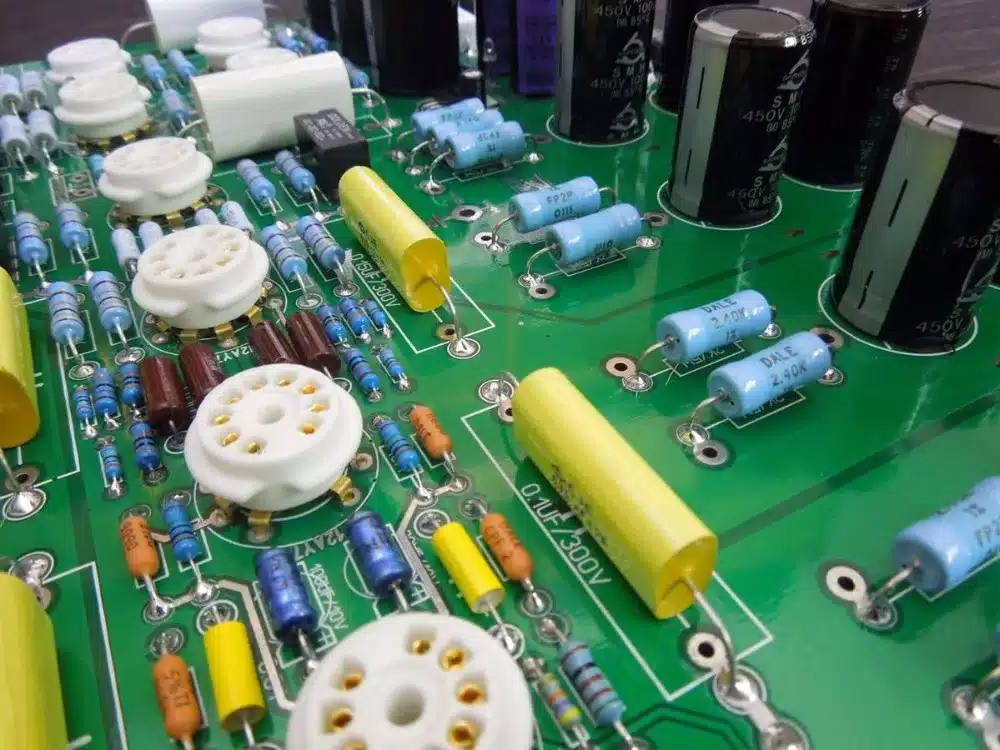

Details Show:

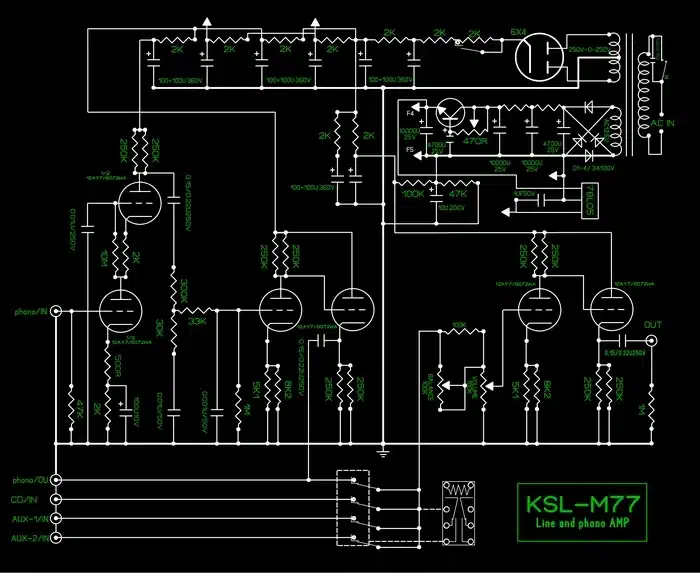

Circuit Diagram Show (If you need the large Circuit photo Pls Mail us!!!)
If you need transformer pls mail me
