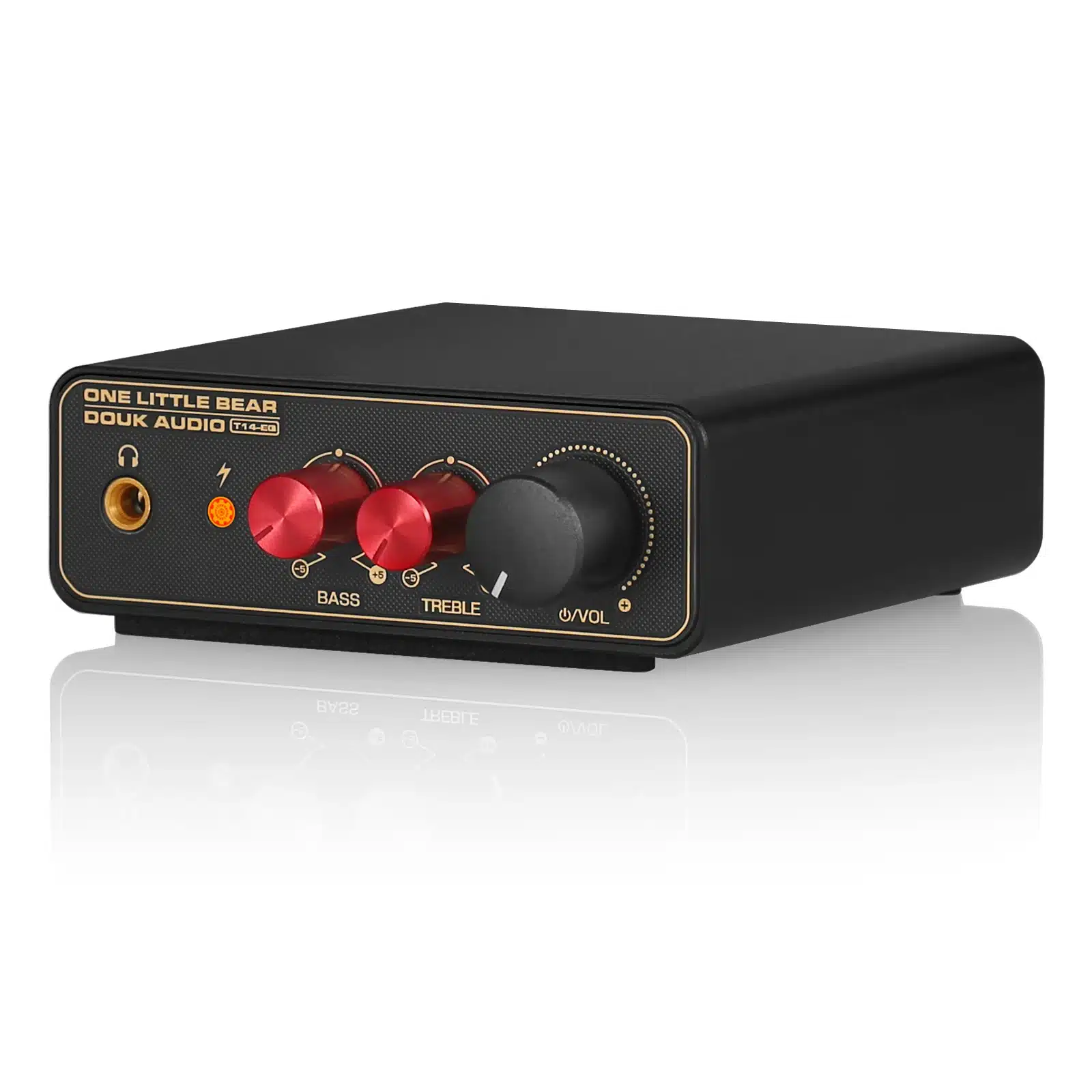

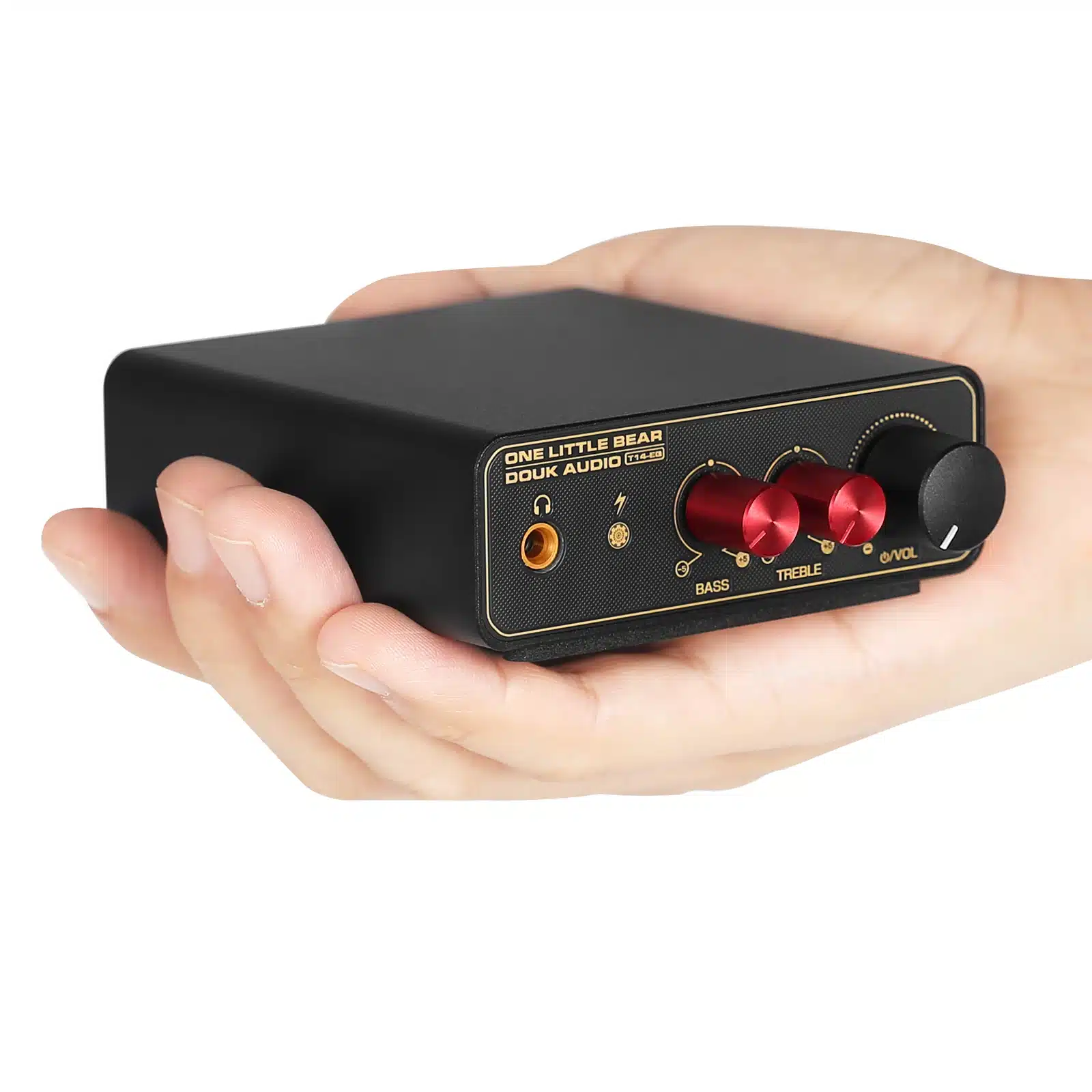

Võimendi LP-vinüülplaadimängija jaoks

Suurus: 98 x 80 x 25mm

Features

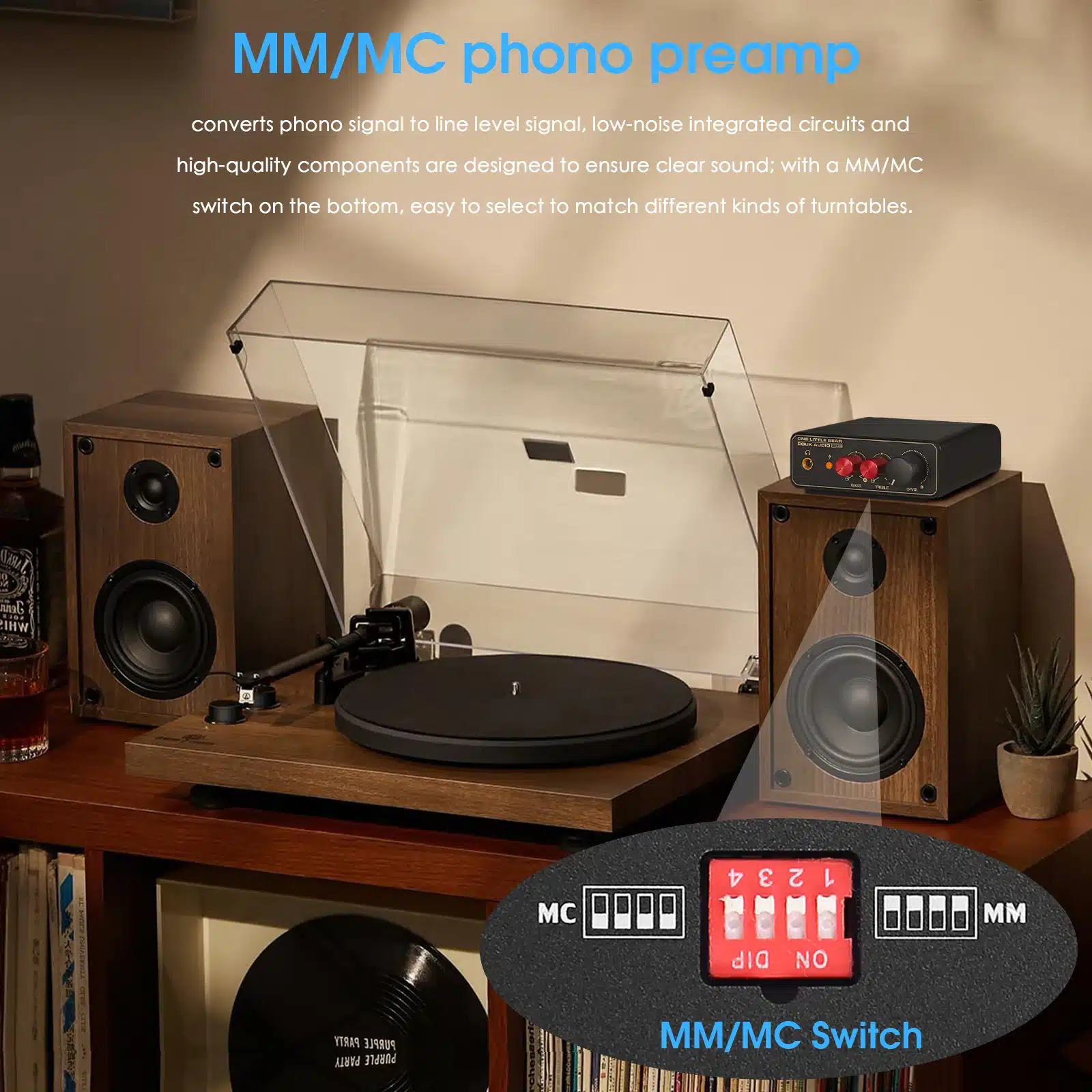

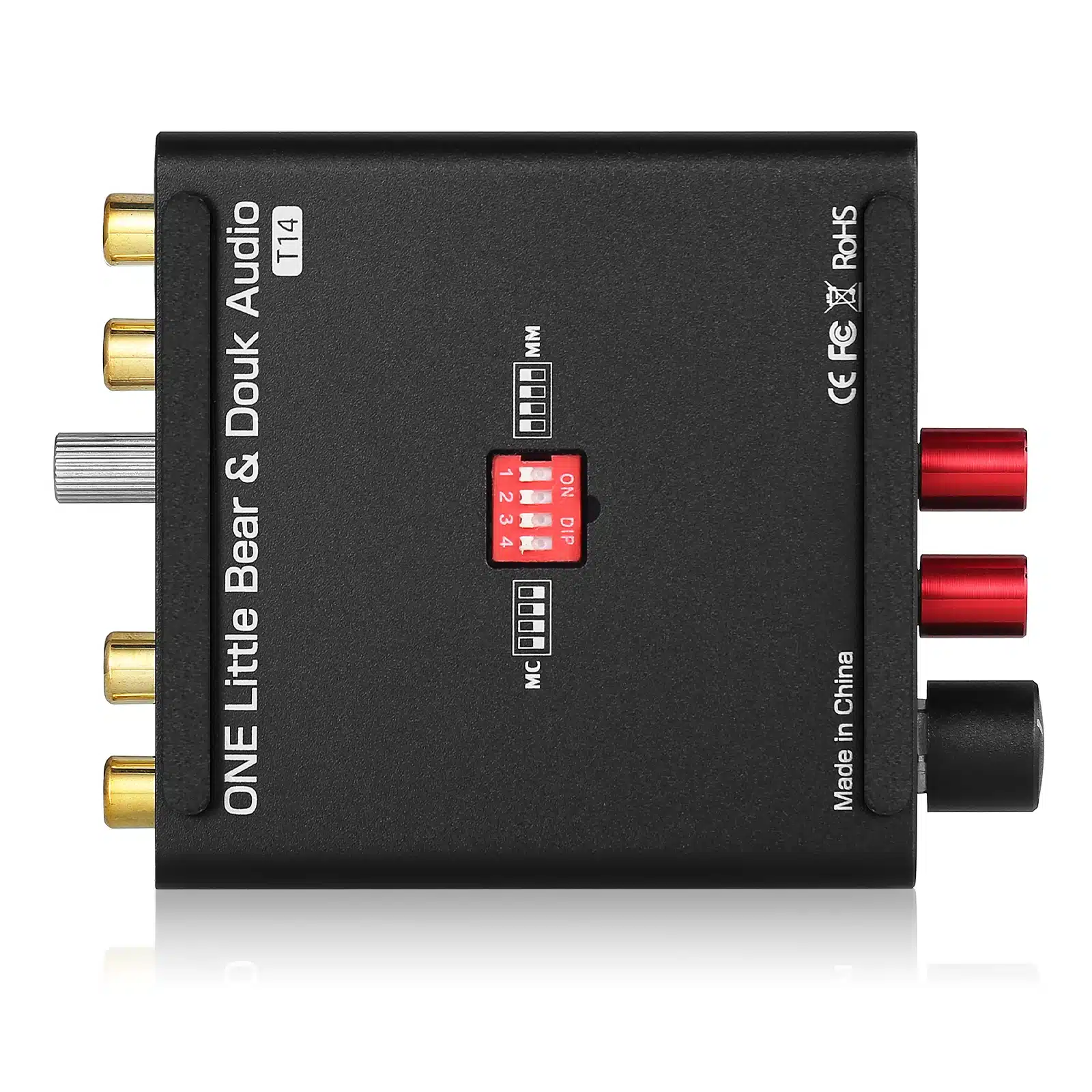

1. It is not only a phono preamp but also a headphone amplifier,and it supports both Moving Magnet (MM) and Moving Coil(MC) cartridges, you can achieve many functions with it.

2. Exceptional signal-to-noise ratio and very low distortion bring high quality sound and make you feel the original audio.

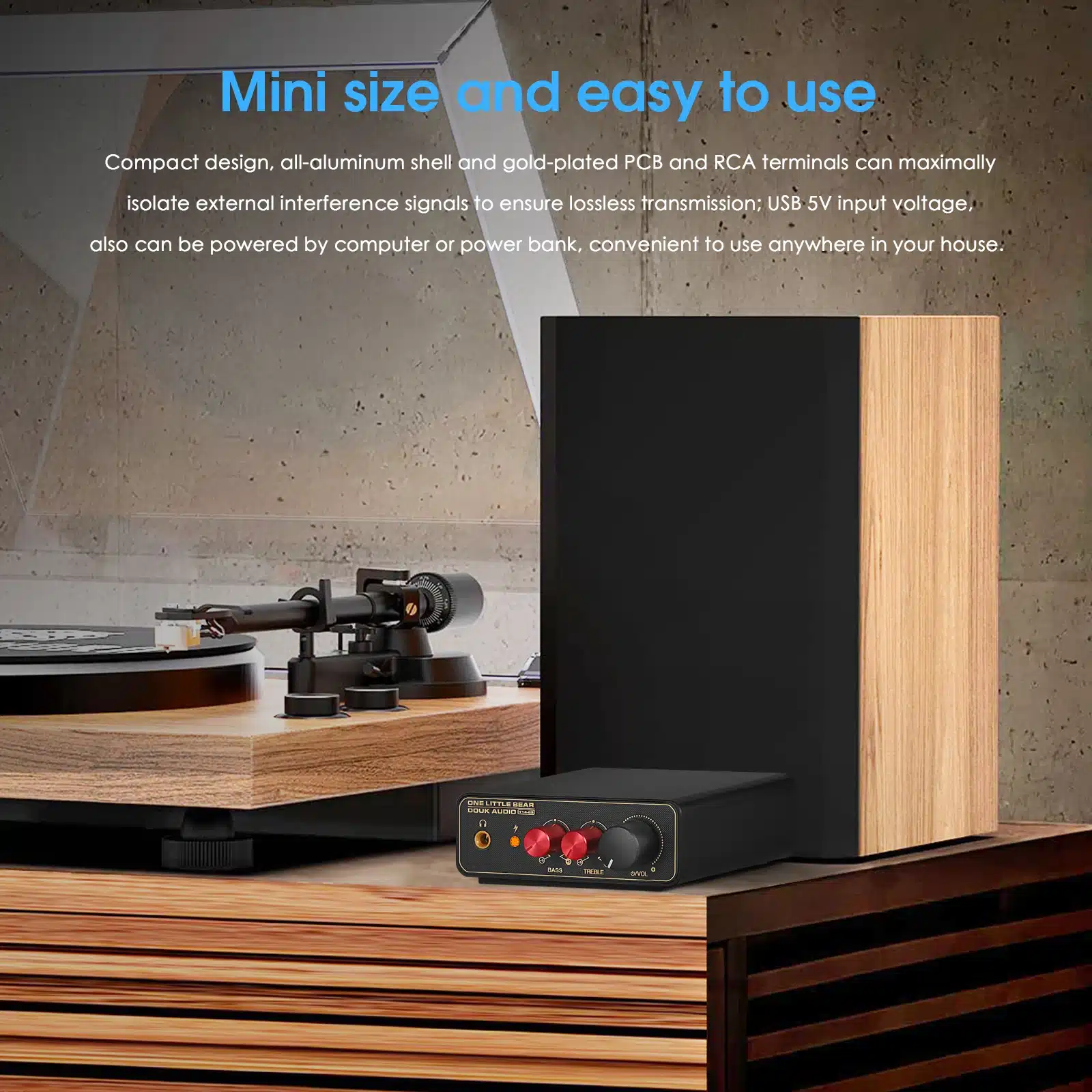

3. High-end design and making technology, mini compact size makes it convenient to be carried and and full-metal casing feels texture.

Parameters

Input impedance: 47KΩ(MM), 100Ω(MC)
Output impedance: 10KΩ
Output Voltage: 1.0V
Power Supply: 15V AC, 200mA
Gain: 35dB (MM) and 40dB (MC)
RIAA EQ Curve Accuracy (20-20kHz): ±1dB
Headphone Amp Noise: -103dBV
Headphone Amp Output Power: 100mW (@16Ω), 42mW(@300Ω)
Dimensions: 98 x 80 x 25mm / 3.86*3.5*0.98in
Weight: 0.27kg / 0.6 lb

Notice

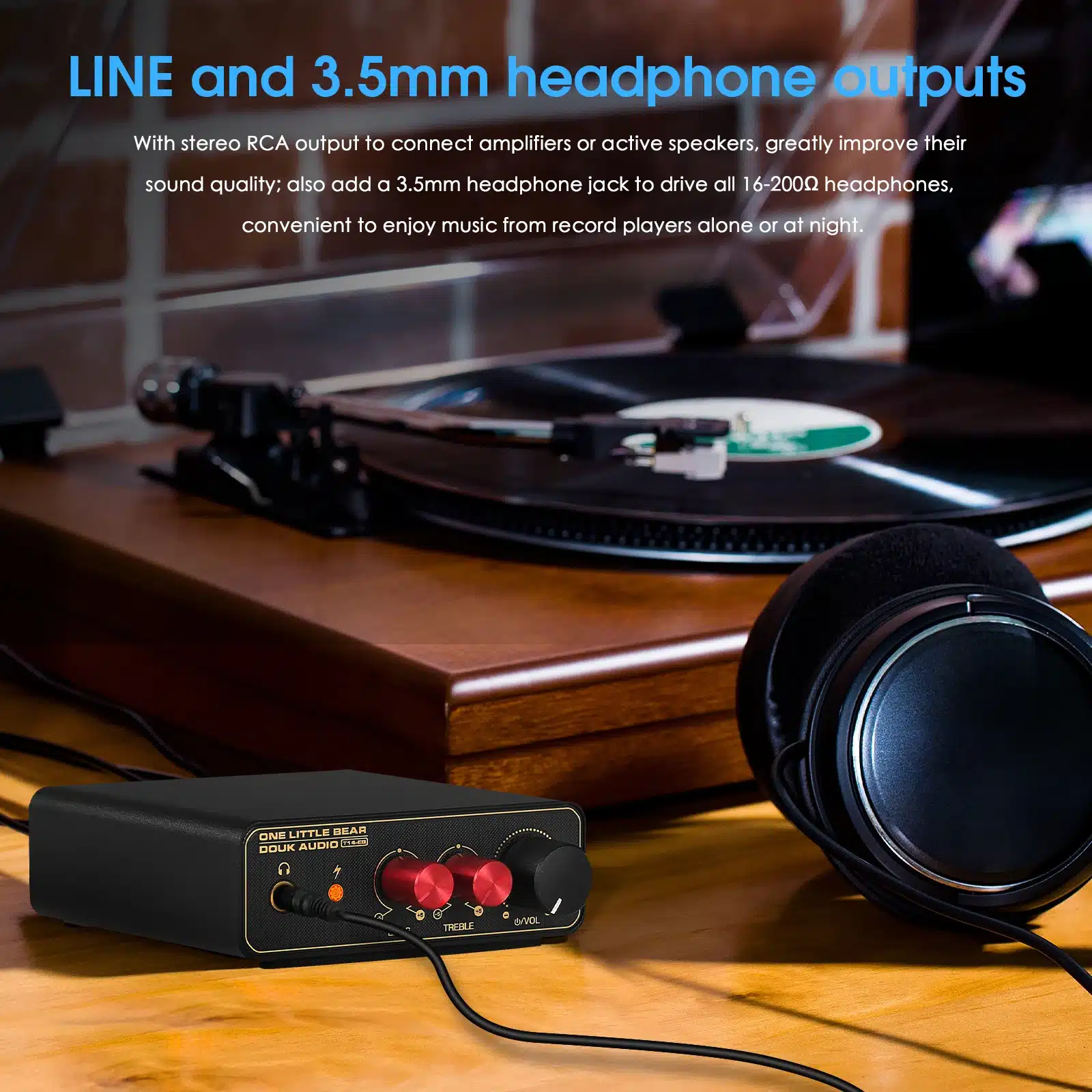

1. LINE OUTPUT will be auto off if the headphone jack is connected.

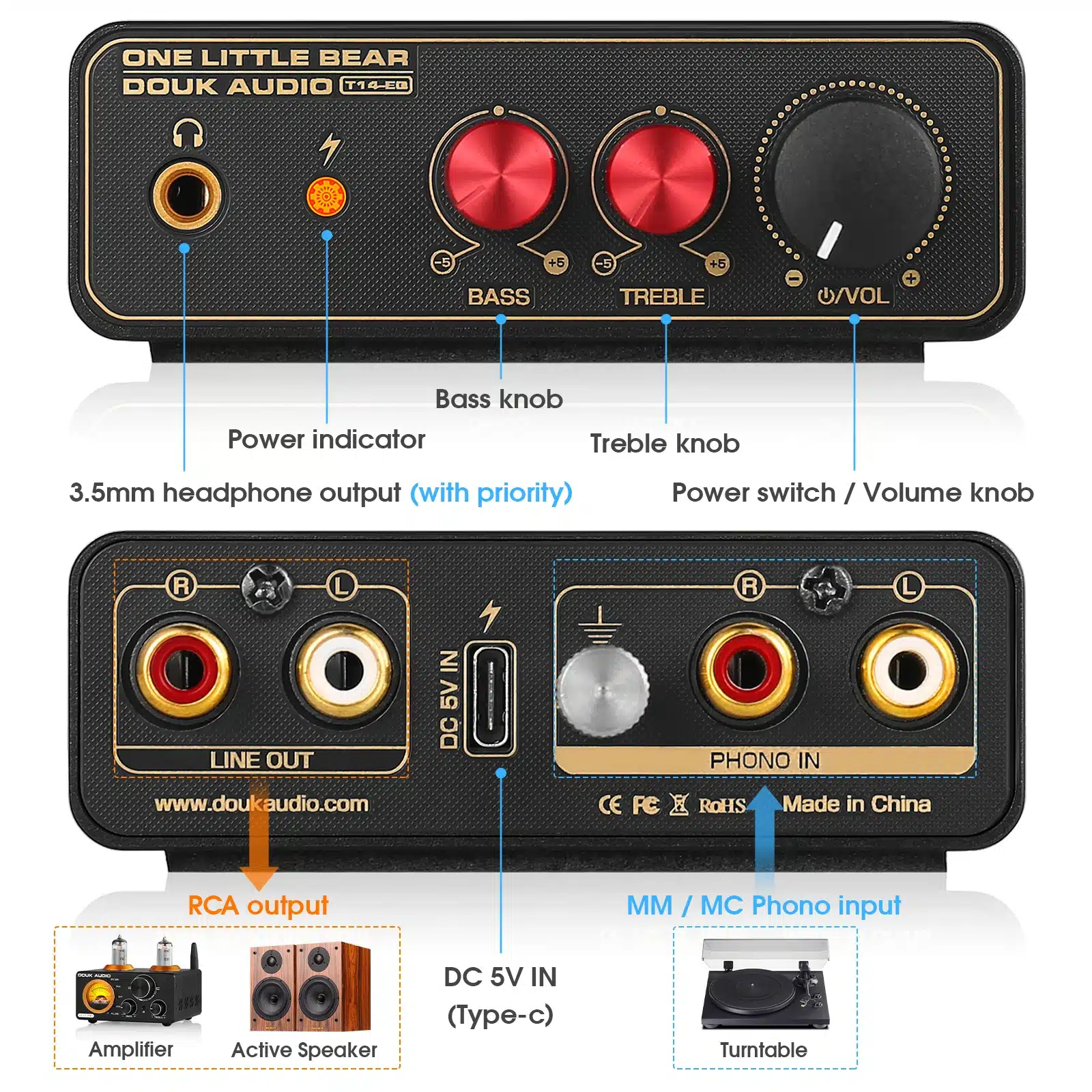

2. Turntable GND cable must be connected to T12’s GND jack, and the background noise can be greatly decreased if T12’s GND jack is connected to the ground.

3. T12 will not work well if your turntable has built-in preamp.

4. Avoiding noise please keep T12 away from cellphones, routers and other signals.

5. The sound will not loud if you MC cartridge is with low impedance and voltage output, it is more suitable for MC cartridge whose impedance is not less than 100Ω.

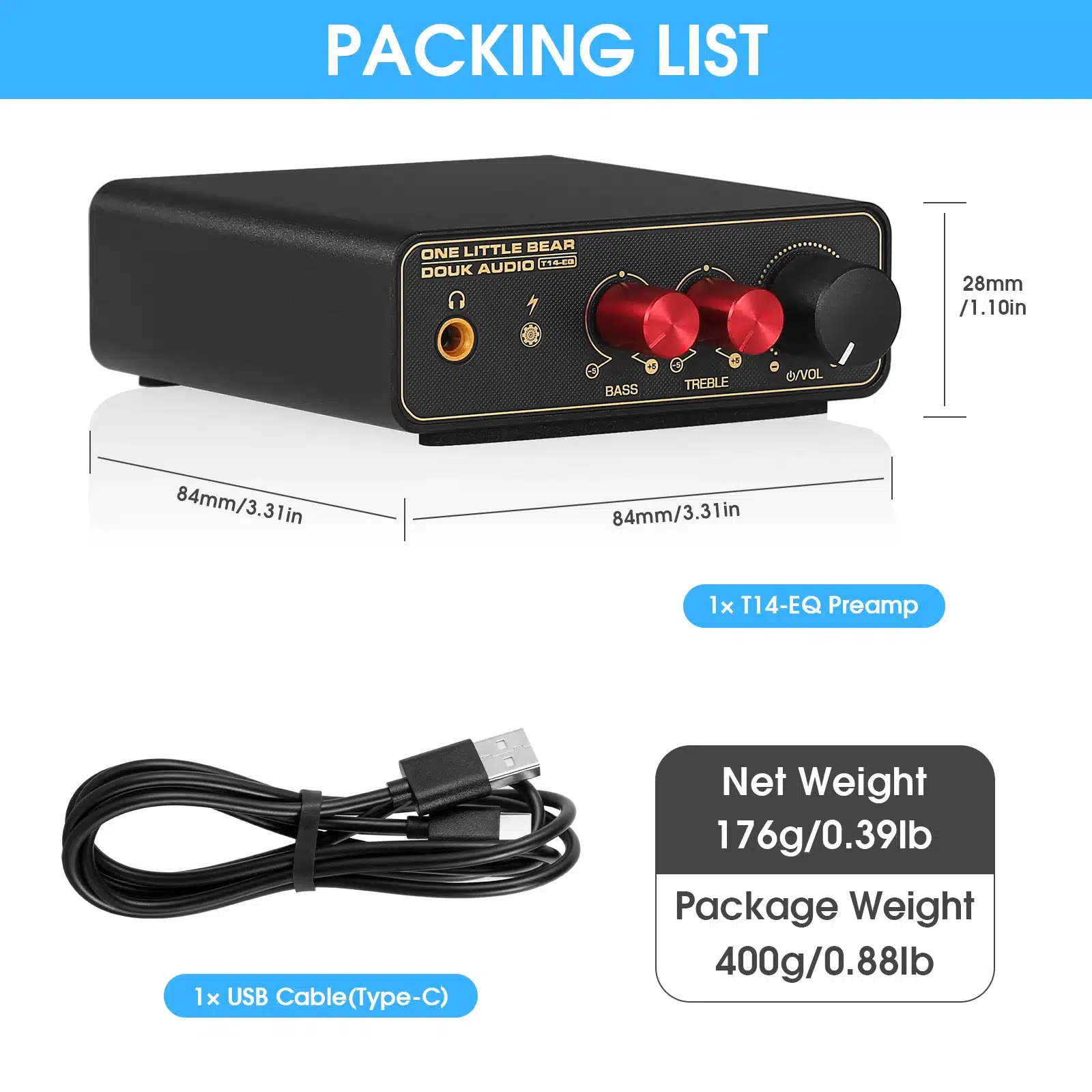

Packing list
