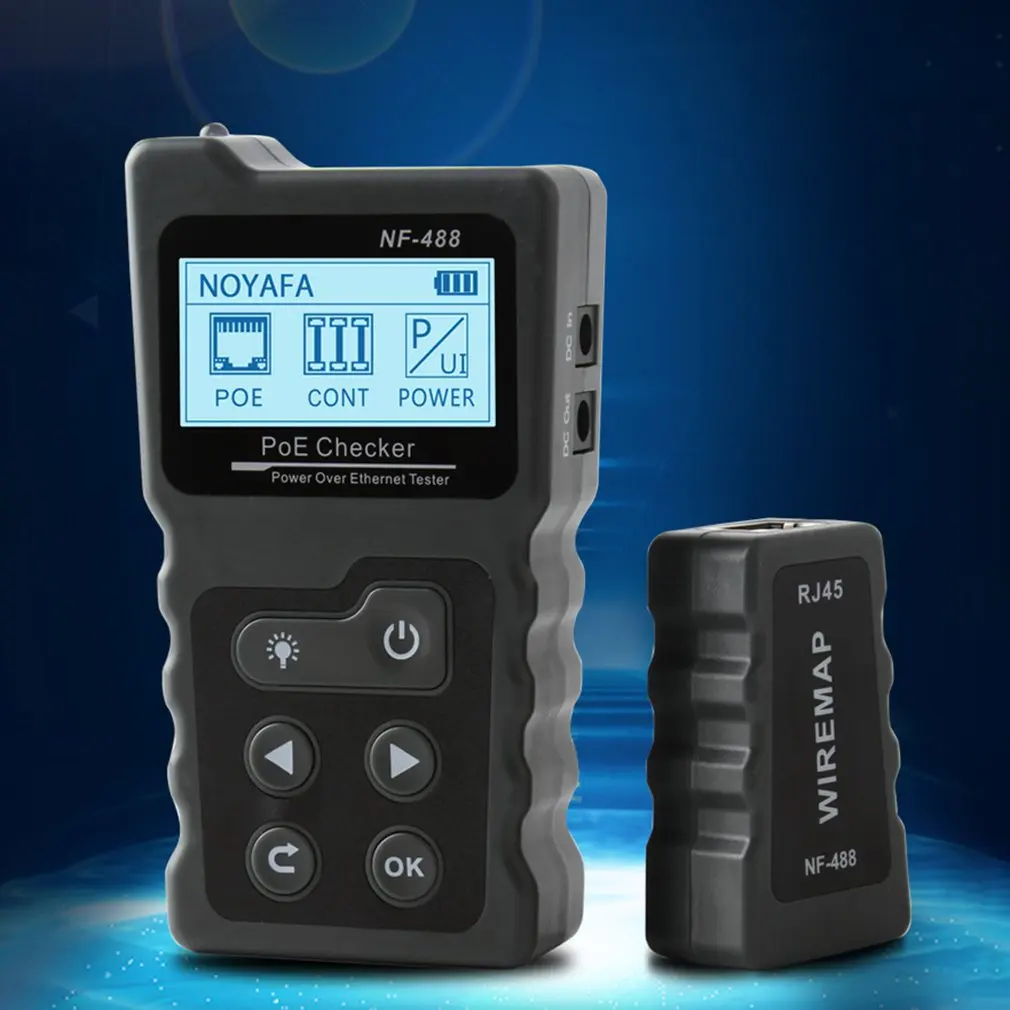

Kuumakse al. Võrgu tuvastamise tööriist
Patarei: 3 x AAA / pole kaasas

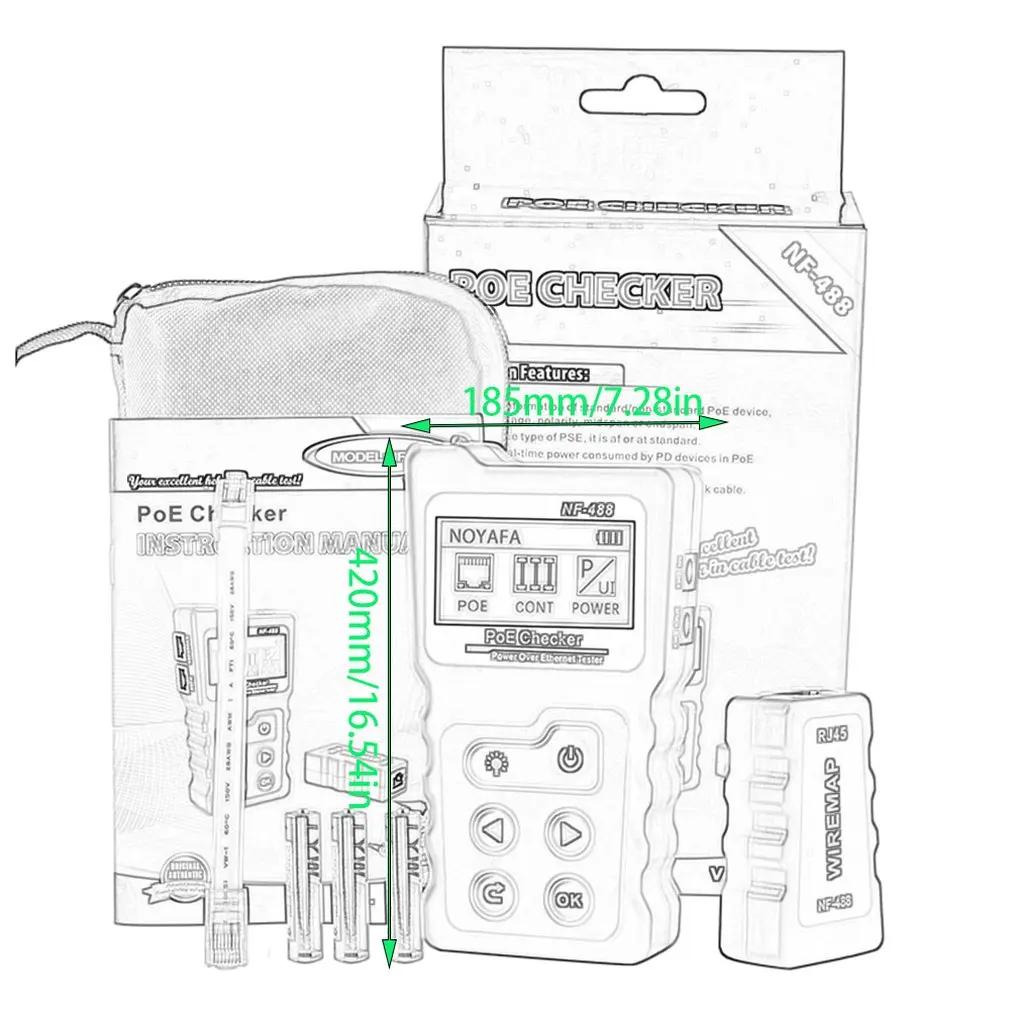

Suurus: 420*110*185mm
Features:

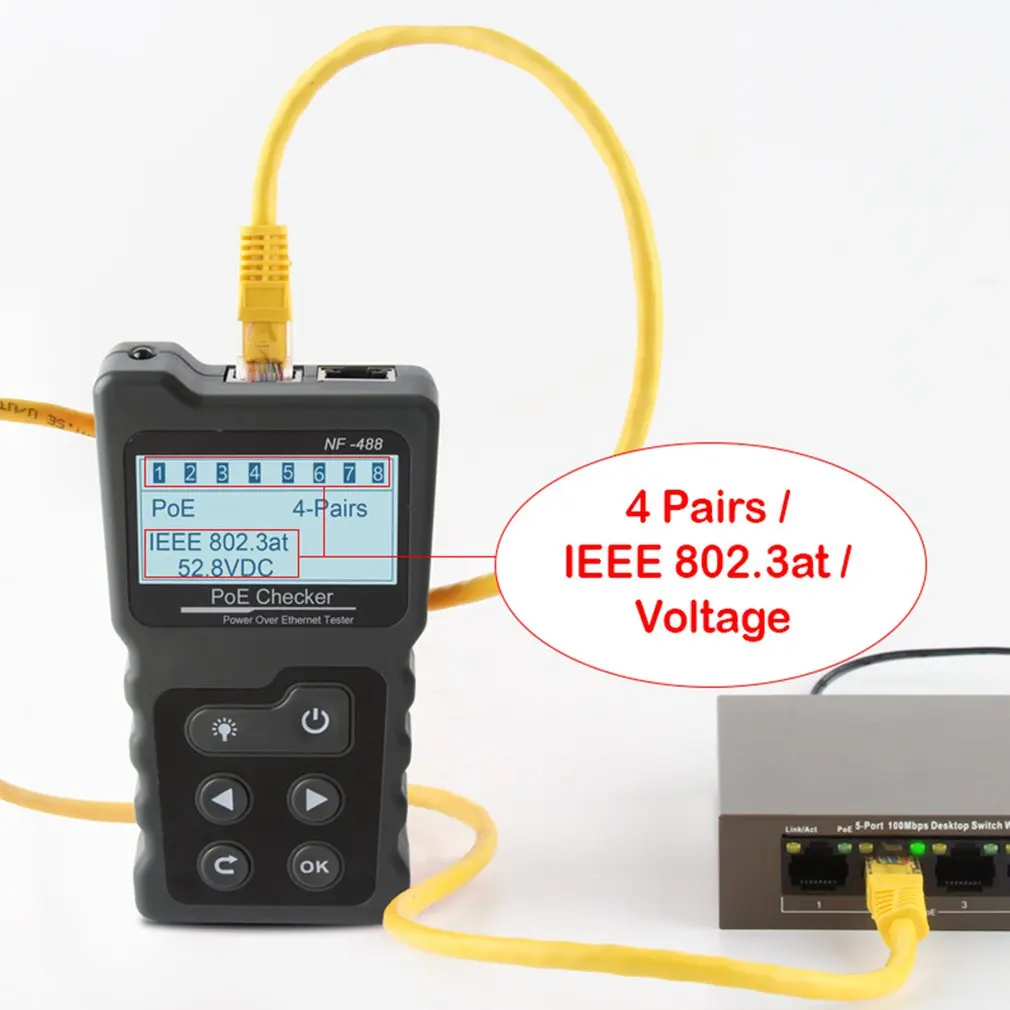

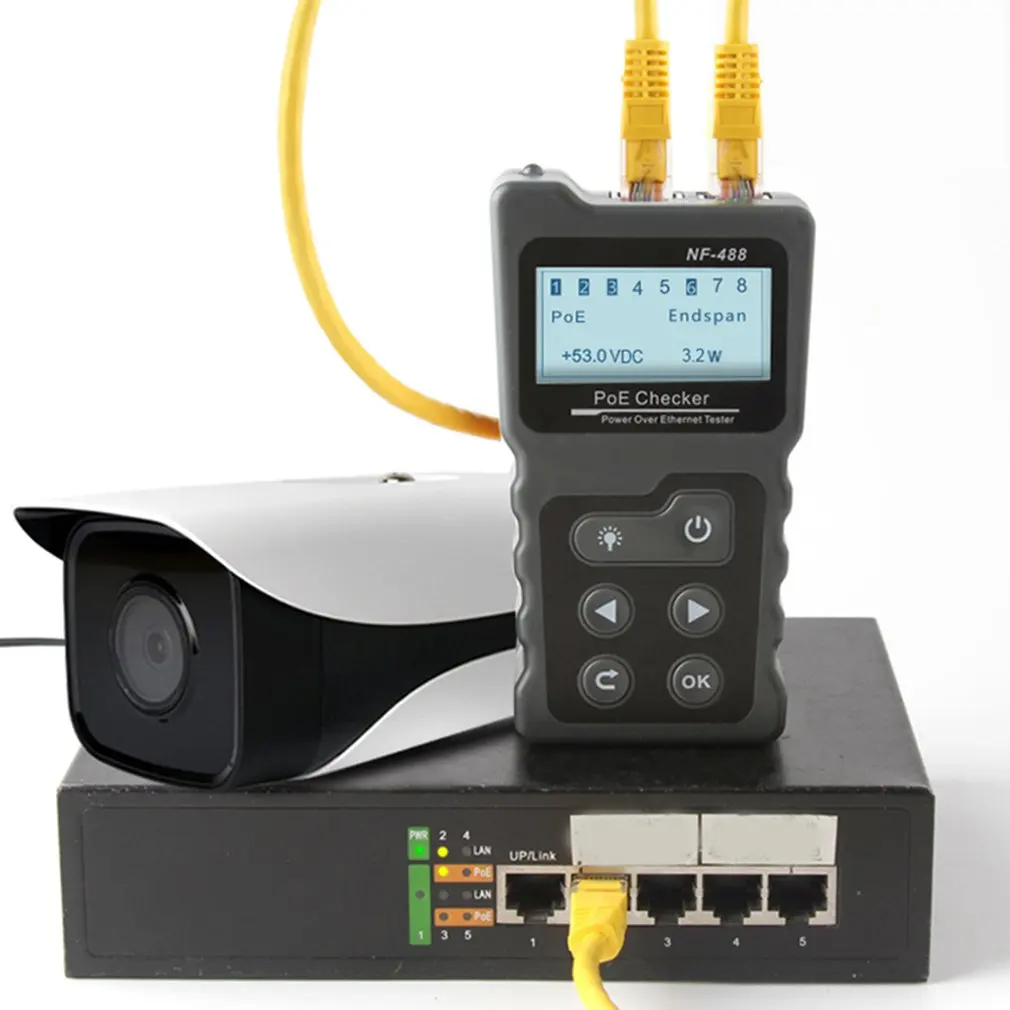

1. Test Criteria: Test information on standard PoE devices such as standards, supply voltage, power polarity and mode.
2. Detection voltage: Determine the power supply voltage, power polarity and mode of non-standard PoE equipment.

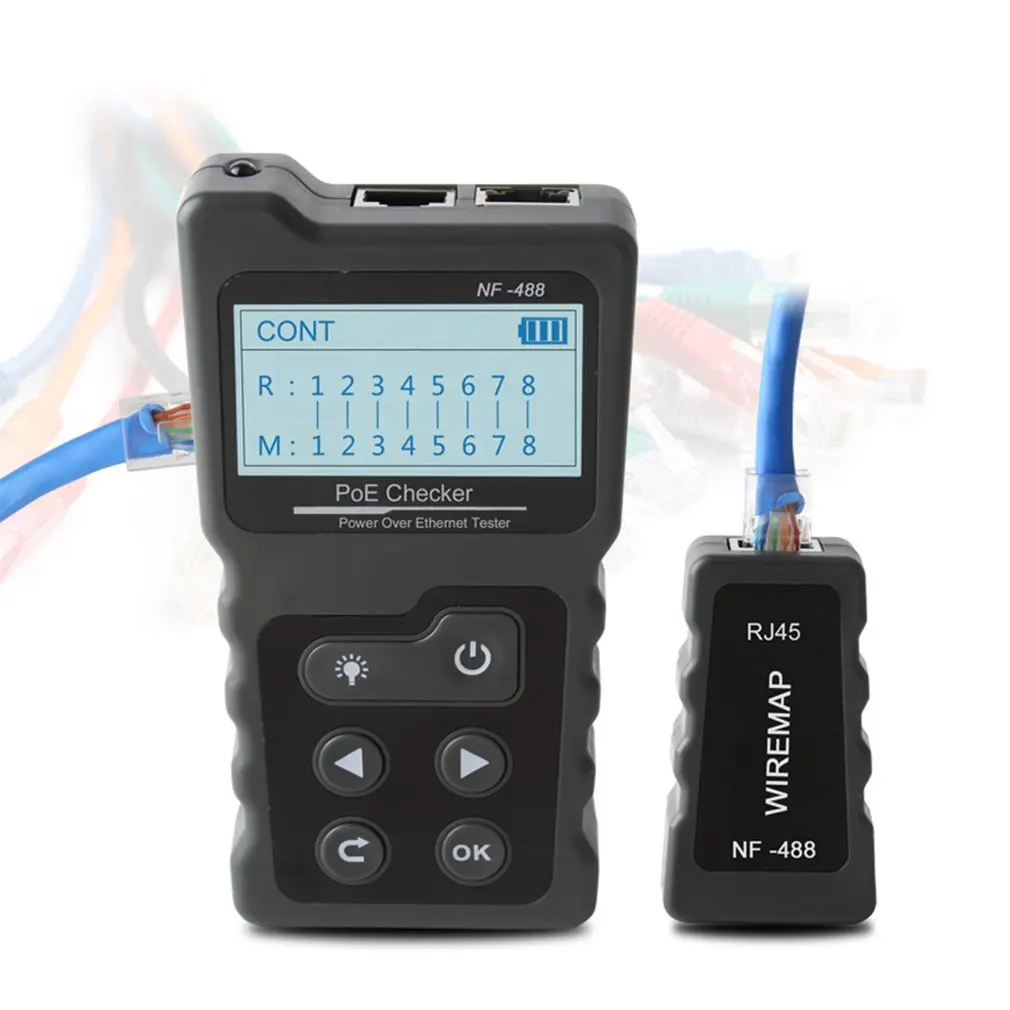

3. Detecting the network: Check for shorts, crossovers and open circuits in the network cable.

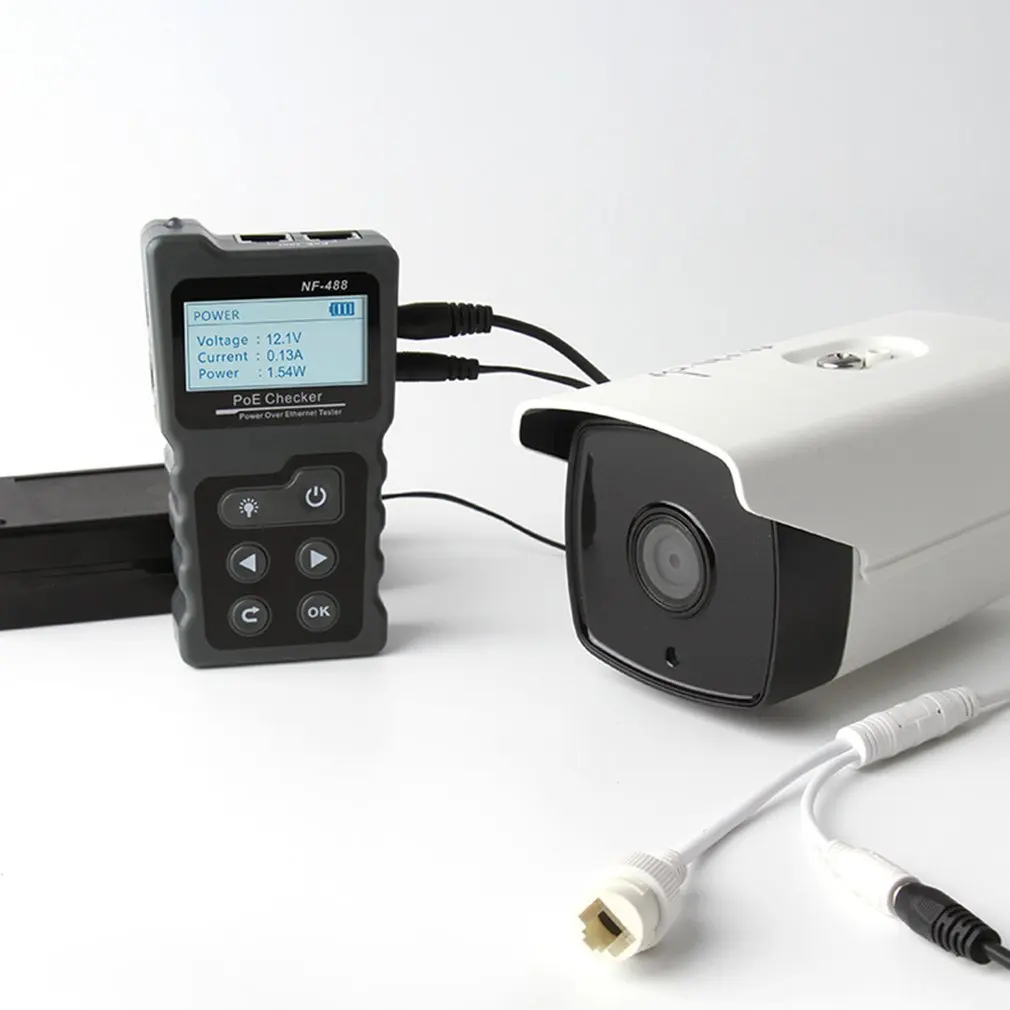

4. Detect current: Test the current, voltage and power consumed by the DC appliance.

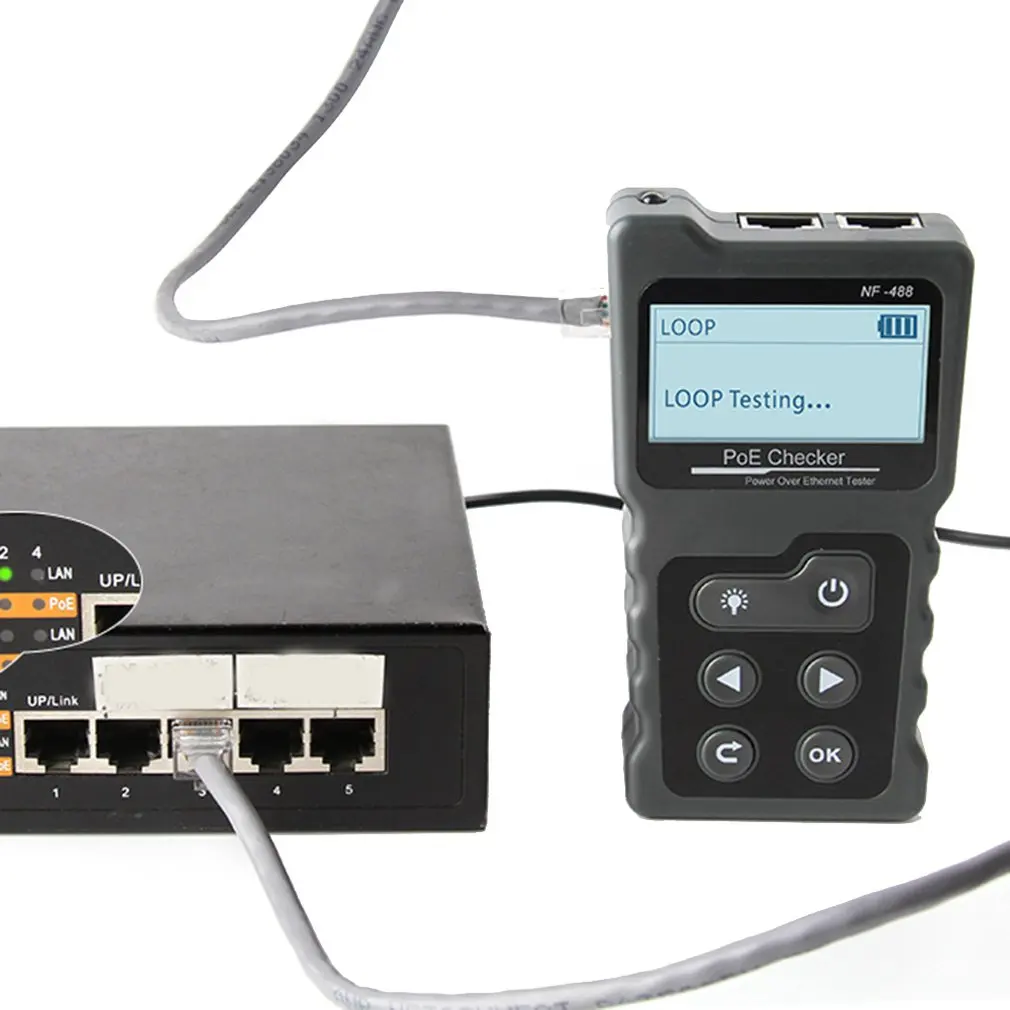

5. Detection switch: Loopback test function of the switch.
Descriptions:
1. Small size, easy to carry and use.
2. Used to detect network voltage and current as well as lines.
Specification:
Indictor :LCD 128×64 mm, with back light
Continulity function:Cable types CAT5,CAT6
Check UTP/STP cable: YES
Cable short indicate: YES
Max testing range: 600m
Wire mapping: Emitter +Remote,Emitter + switch/routor
PoE function
Test range: DC5-60V POE switch
Standard identify :802.3af/at ( standard/non-standard)
Test range power :0-18W
Output interface :YES
Power function:Voltage test range DC0-60V
Current test range: 0-3A
Power test range :0-180W
Input voltage protection: DC48V 5mA
Max working current :≤80mA
Loopback: Compatible with 10M, 100M, 1000M switch
Power supply: 3*AAA
Color: black
Size: 420*110*185mm
