Automaatne pinge kaitselüliti

Automaatne pinge kaitselüliti

the voltage protector operating instruction

this is a voltage protector,good for an automatic protection of the home appliances in case under-voltage 。

ultra-voltage and electricity stoppage for instance。it may be always harmful to the normal operation ，cut their service life，

or even burn down the compressor motors for air -conditioner ,refrigerator and freezing cabinets if the supply voltage is too low or too high .

Especially ,instant power stoppage and restarting supply with the electricity net creates a strong voltage impact which is very hazardous and may damage the compressors,

which can immediately disconnect the load supply and provide the compressor

with a time – restart power reconnection with a perfect result of protection for the compressor

Appliations

1 insert the protector plug into the supply sockect ,those of the air -conditioner ,refrigerator ,freezing cabinet into the output socket of the protector

2 when in stall this protector one may directly hang it up on the wall by the hanging hole it back case

3 Obiects of Applicability air -conditioner,refrigerator ,freezing cabinet

Note

1 Do not install this protector in the positions afflicted with high temperature and moisture

2 using it in a dirty ambience and a severe oxidation with the plug may lead the protector to an early damage

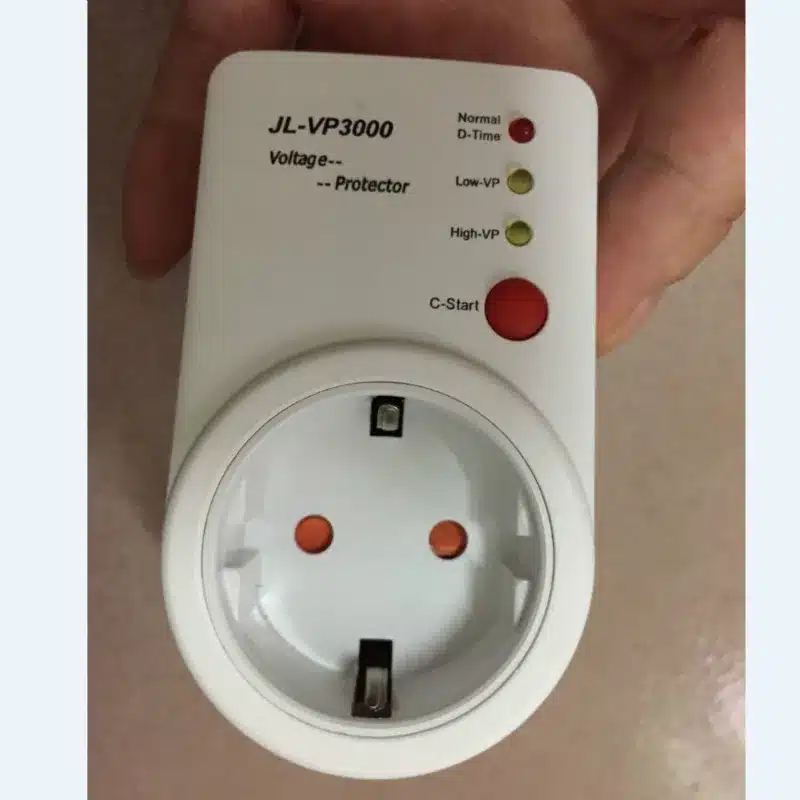

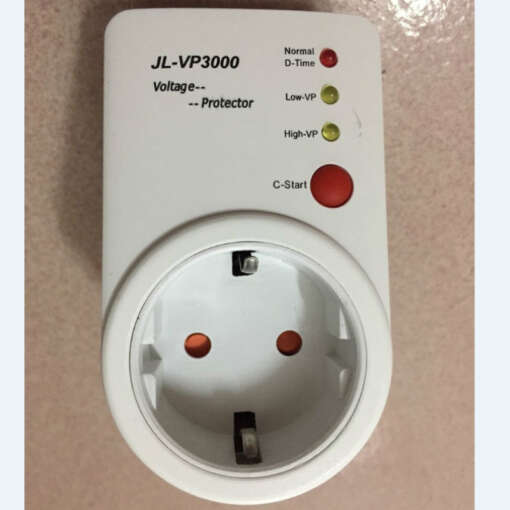

Model No.: JL-VP3000

Specifications:

1.220V, 50HZ, 110V, 60HZ

2. voltage range:90+/-3%~130+/-3%(60HZ); 180+/-3%~250+/-3%(60HZ);

3. current range: 15 A(Max)

4. Start-up Delay time 30S-5minutes

5. LED, LCD display to show the working voltage and state.

6. 5 Types of protection (over voltage, under voltage, interruption, surge/spike, over load protection

Product size : 5.2*9*3.5 CM

Applications : For TV, LCD, Plasma, DVD, Home cinema,PC, Laptop, washer, Refrigerator,dryer, oven, dishwasher and other home appliance without compressor.

​
