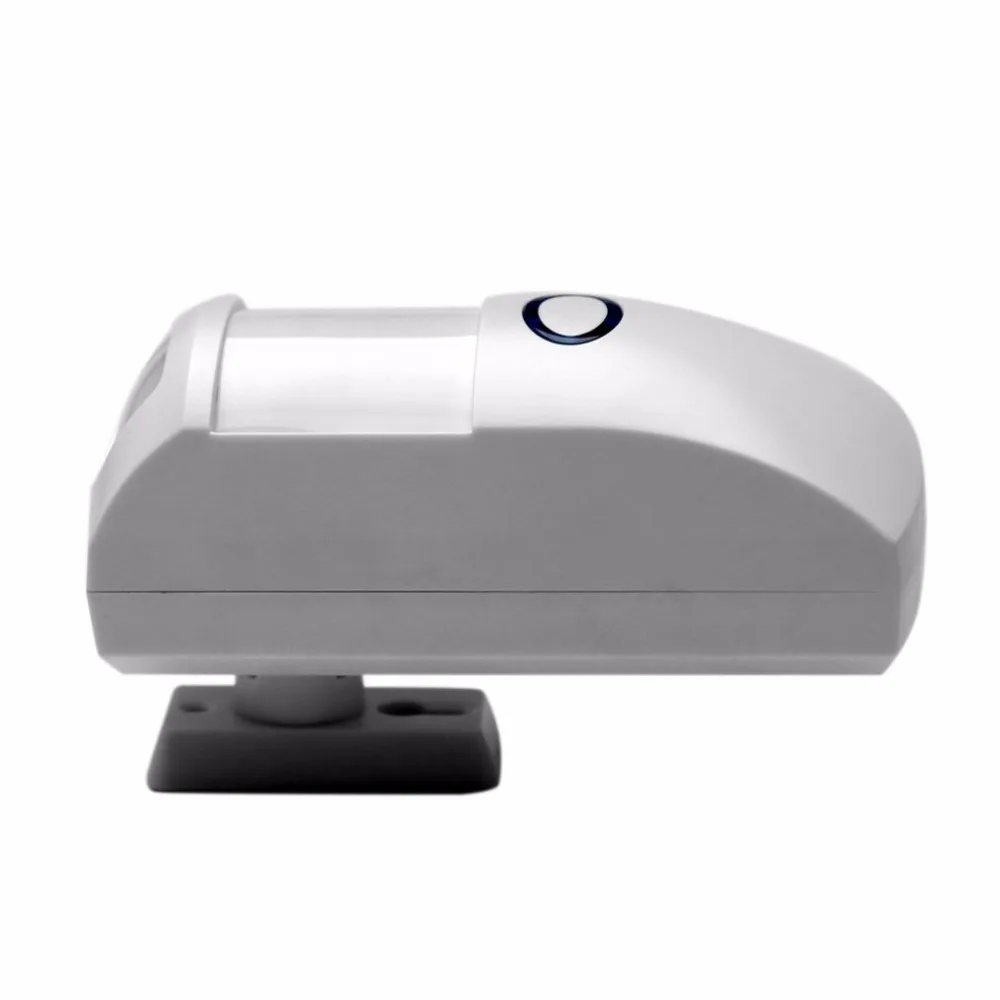

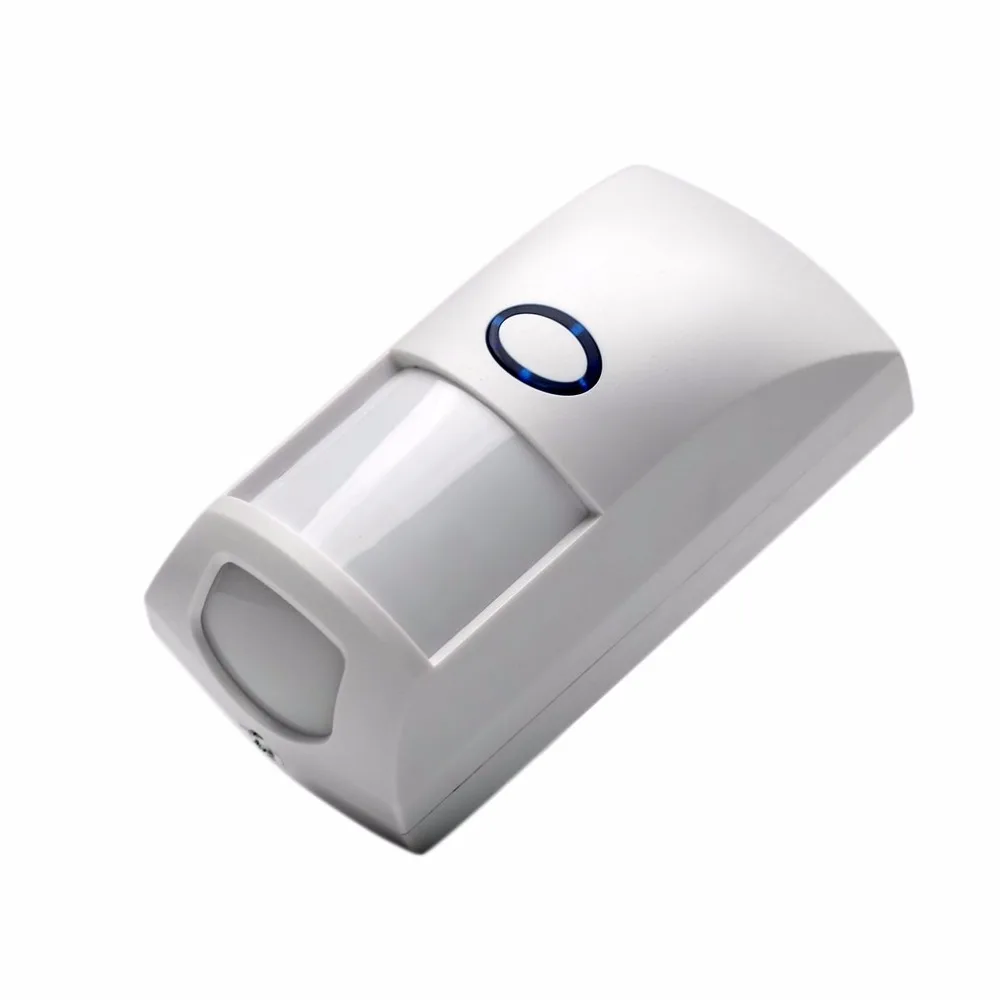

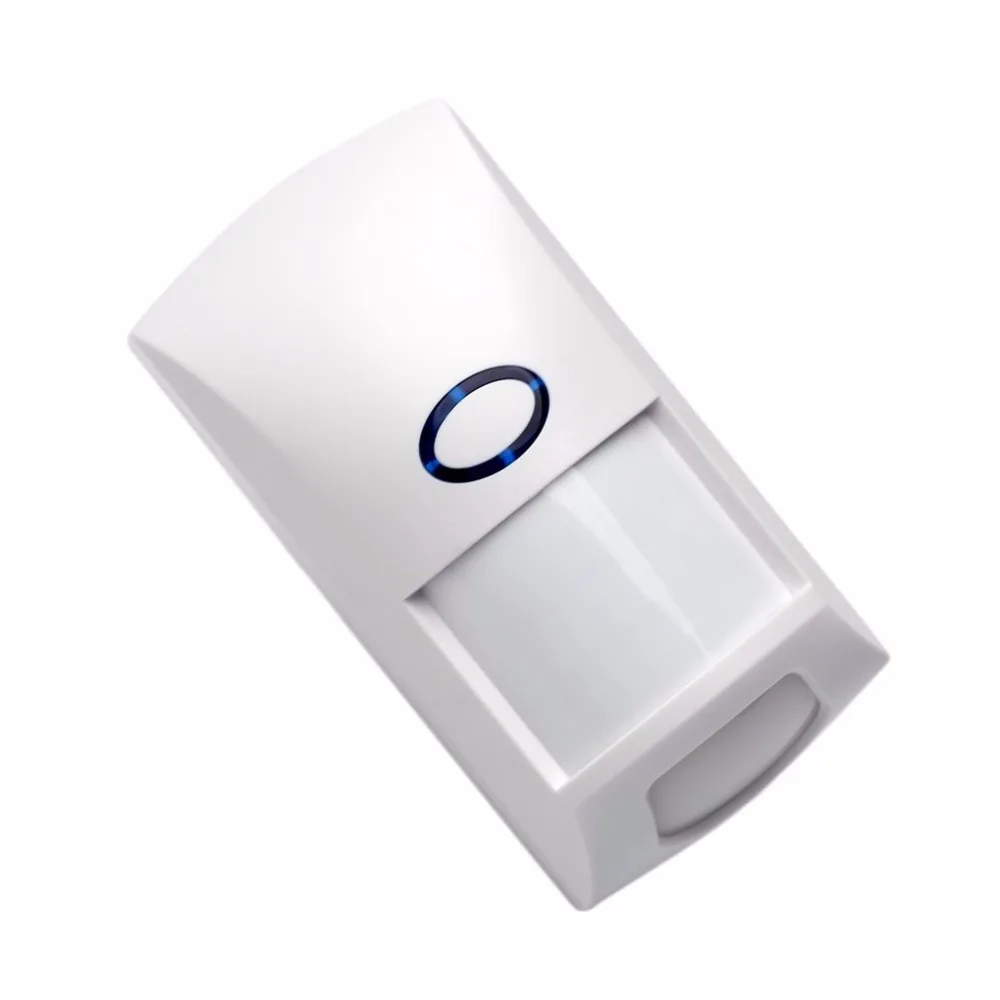

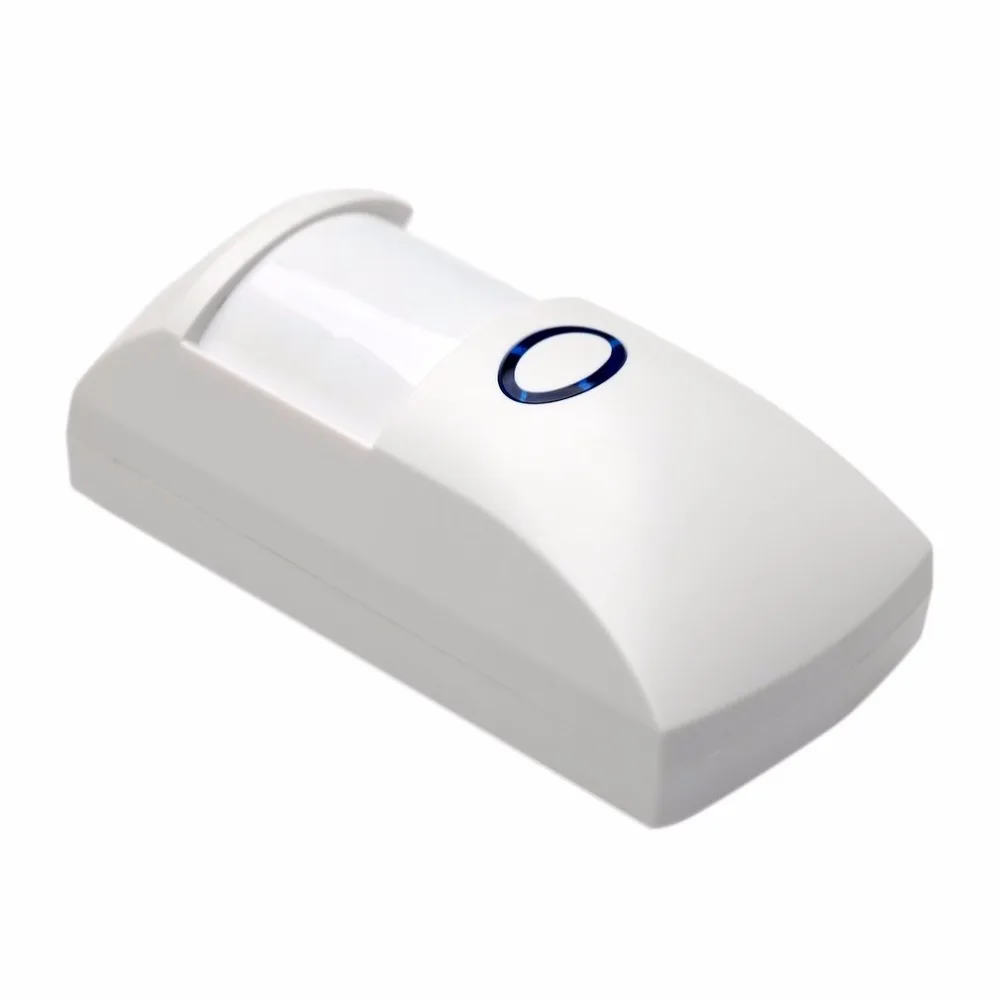

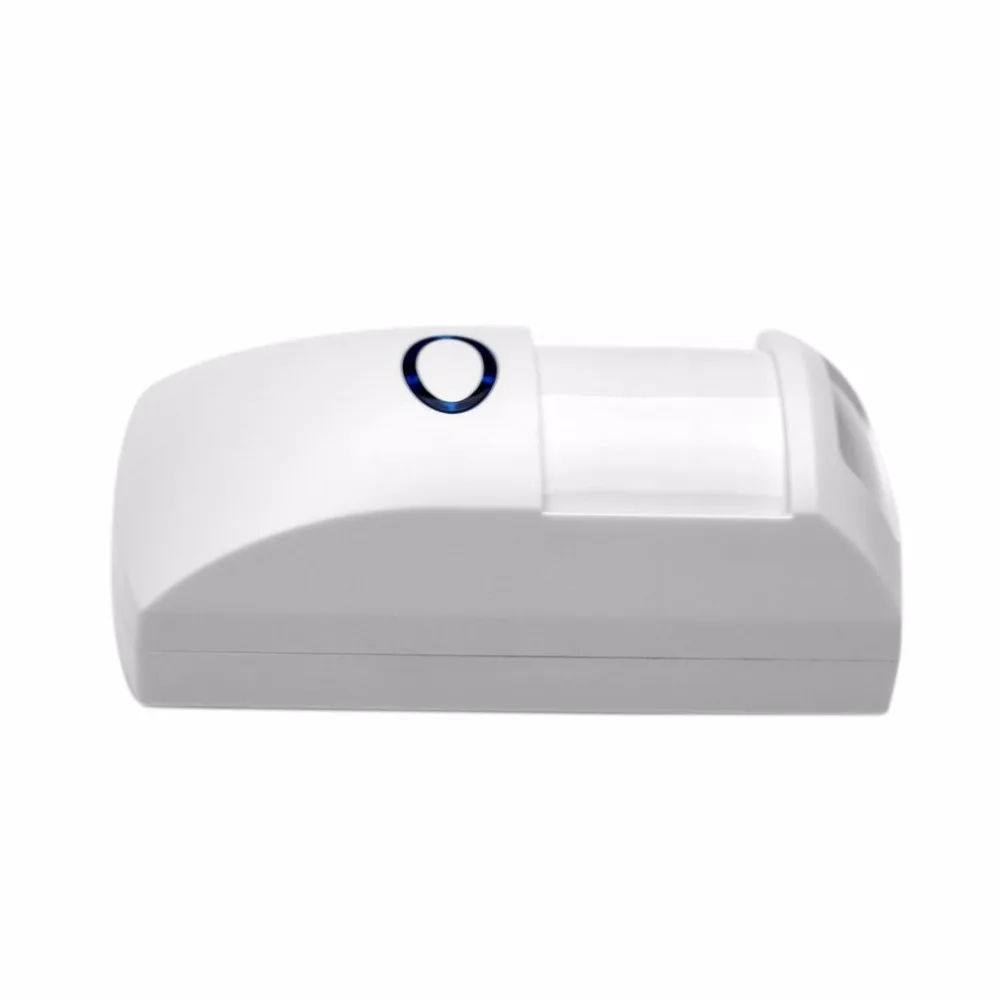

Infrapunaga liikumise andur

Infrapunaga liikumise andur

Ala suurus: 12 x 12 m

Features:

Dual infrared + intelligent volume recognition + mirror + artificial intelligence four heavy technology.
The ultra low power microprocessor.
The double temperature compensation technology.
Adopts reflector type detection technology, effectively overcome the traditional shortcomings into crawling no alarm detector.
Adjustable pulse counting technique.
With random dynamic segmentation technology.

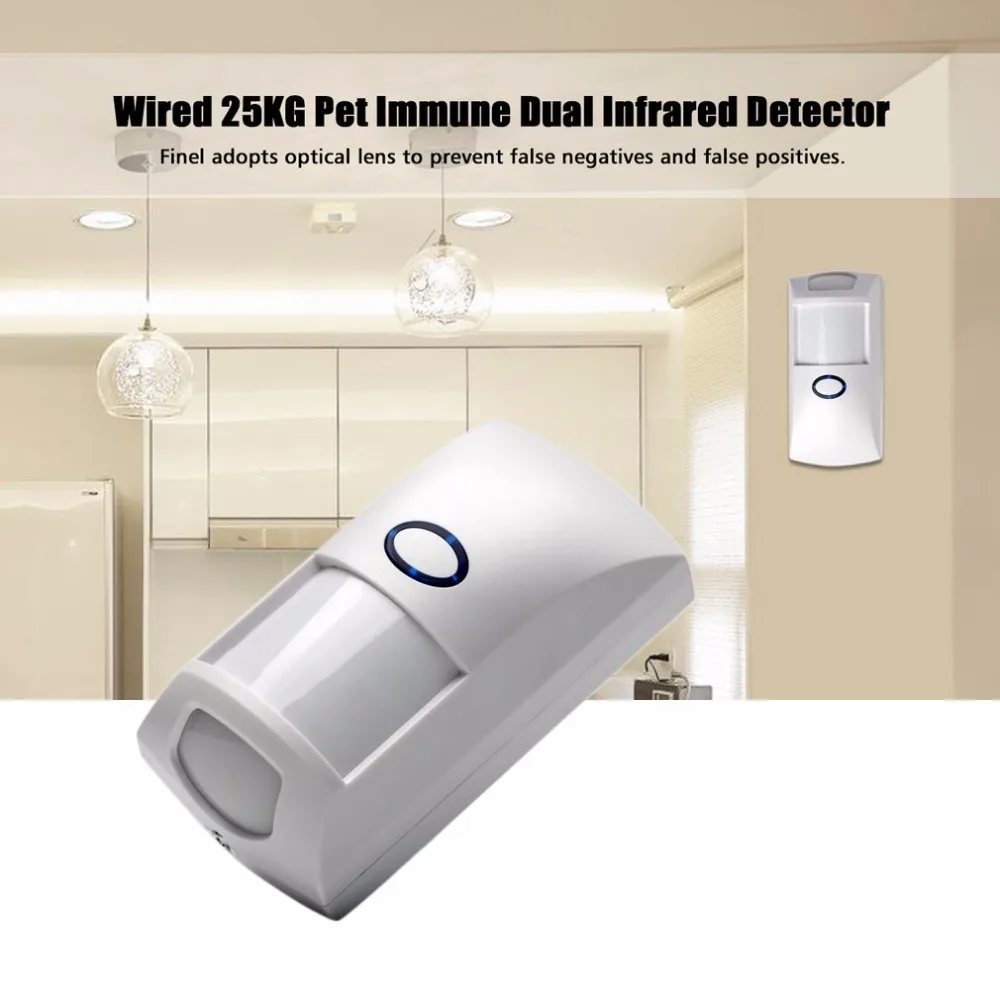

Finel adopts optical lens to prevent false negatives and false positives.

Descriptions:
Detection range: 12m@25 degree
The detection angle: 110 degrees
The anti white light intensity :10000Lux
The transmission mode: wired.
Wall hanging installation.
Unique  plug and installation design.

Specification:
Operating voltage: 12-24VDC
Operating current: 25mA
Standby current: less than or equal to 15 mu A
Maximum coverage area: 12m * 12m
Alarm light: two color lamp indication
Working environment: Indoor
Anti demolition switch: normally closed
Transmission mode: NC/ON
Package size: 120*62*46mm

Package includes:
1 x Detector
1 x Box
1 x Instruction
1 x Mounting bracket
1 x Mounting screw
