Kahe nupuga puutetundlik lüliti

Product Introduction:

1、Brand Name: UBARO

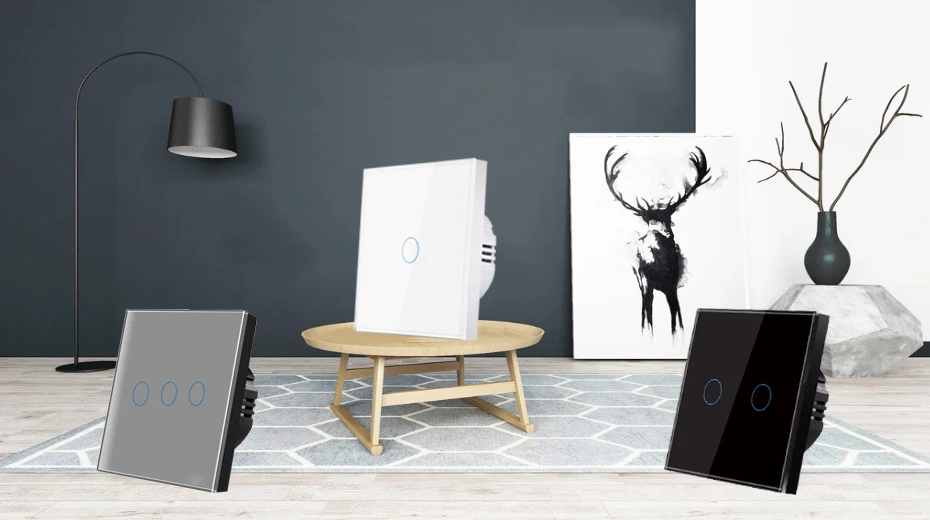

2、Button:1 gang、2gang、3gang

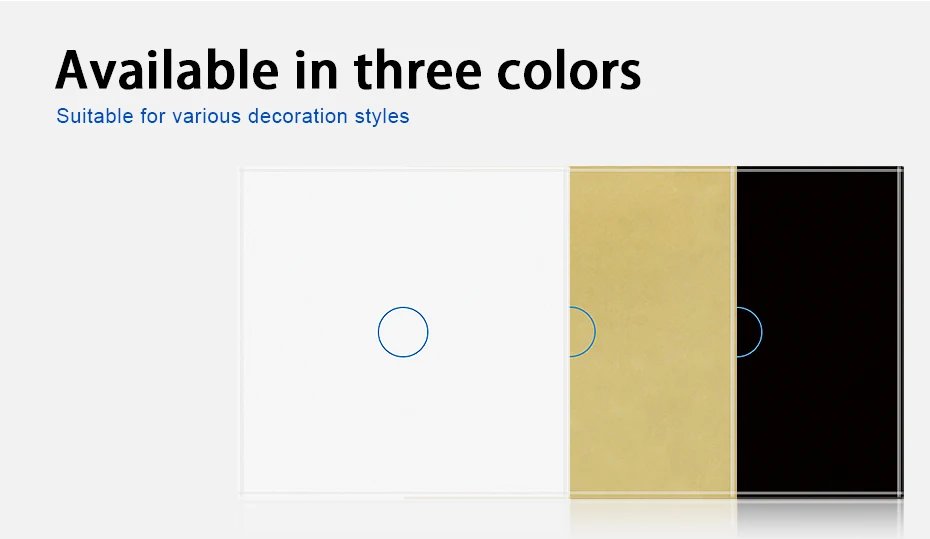

3、Color: Black, White, Gold,Grey.

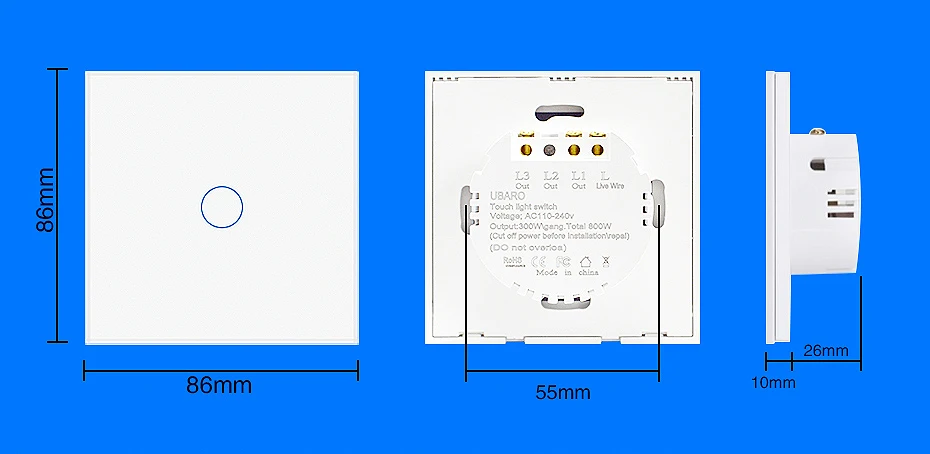

4、Size: 8.6*8.6*3.5cm / 3.4*3.4*1.4″ (L*W*H)
5、Current: 10A
6、Power Watt:Normal lamp:3-300W/gang,LED:5-150W/gang.
7、Working Voltage: 100V-240 Vac
8、Working Temperature: -20 ℃~+55℃
9、Relative Humidity: 10% ~ 95%
10、Mechanical Life: 100000 Times
11、Certification: CE,FCC ,ROHS
12、Warranty: 1 year
13、Delivery time: <3 days Received your order.
14、Gross weight：0.15kg Net weight: 0.115kg

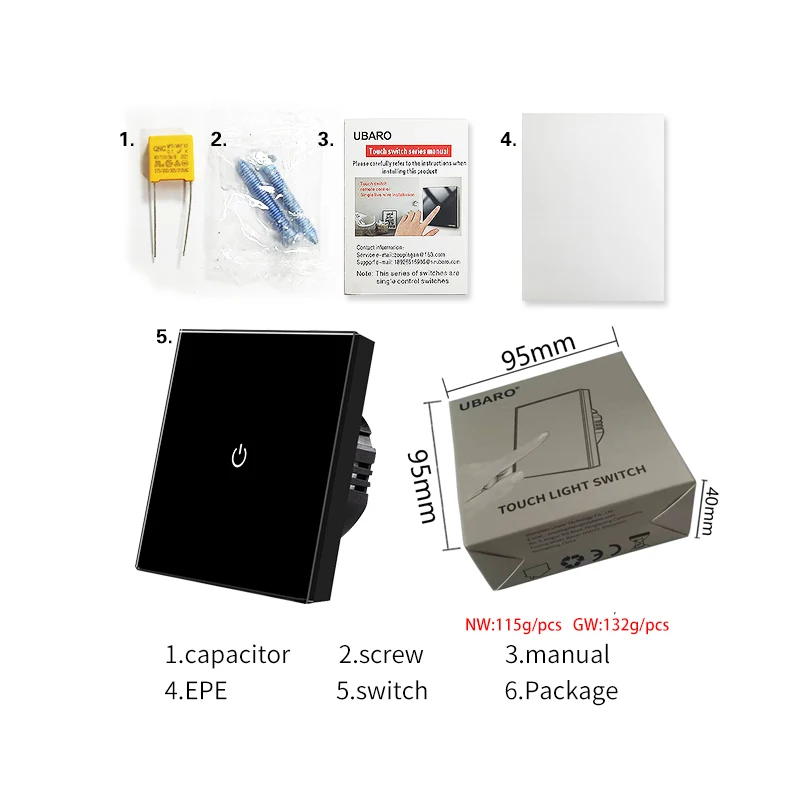

15、Package dimensions：Colorful box packing size:9.5*95×4.0cm

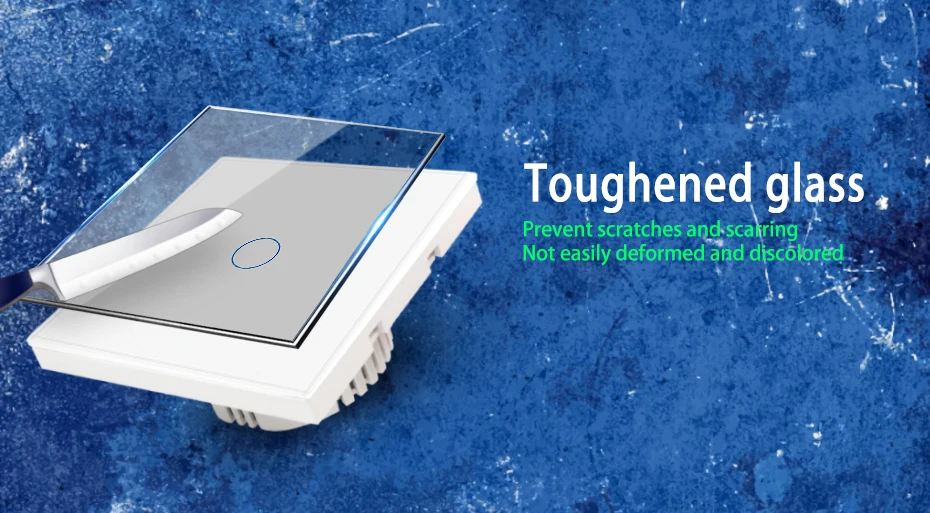

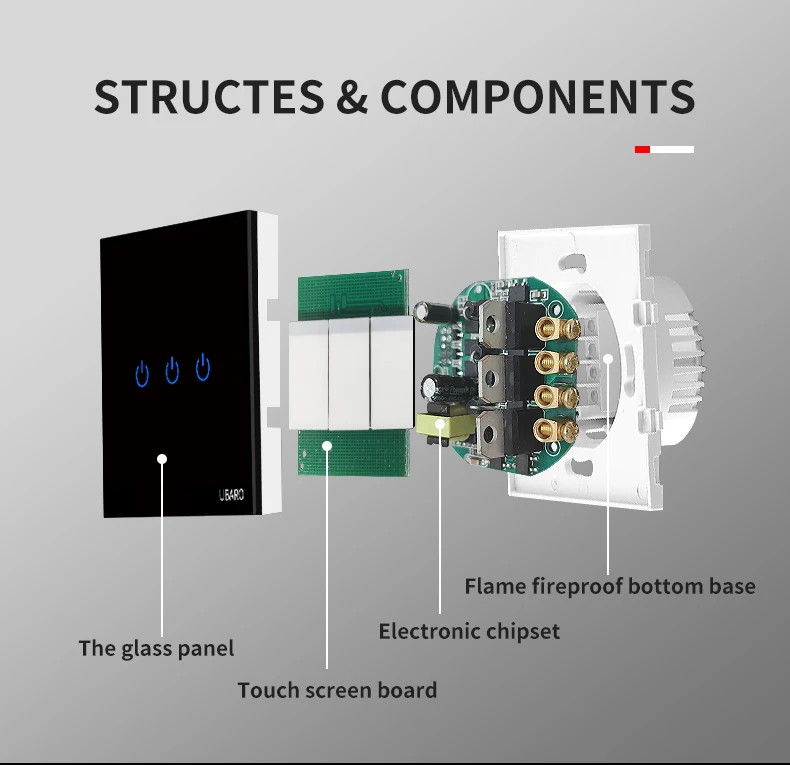

Tempered galss panel advantages

1：The high sensitivity experience is the same as pressing the phone
2：Strengthen protection for the short circuit of power line Fireproof rate is 94V-0
3：The wet hand can operate the panel and the water vapor does not easily enter the inside of the panel
4：Convenient for maintenance and cleaning with a cloth or tool

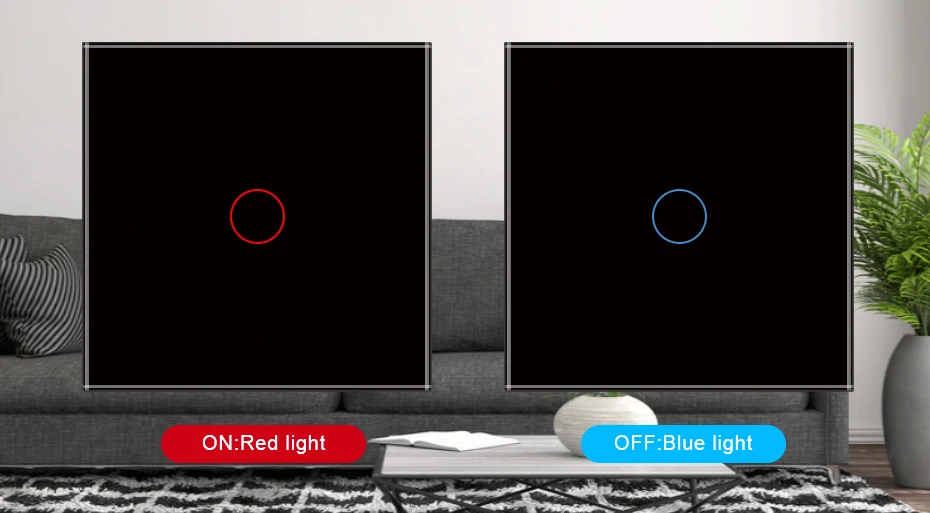

5：Led Indicator design, On-Red Off-Blue

FAQ

1. Do you have an LED indicator design on your panel?
Yes, all our touch switches have led indicators. on-red off-blue

2.Is the switch easy to install?
This is a single live wire control switch, no neutral wire is needed, and the original old switch can be replaced. We can provide installation videos.

3.Do I need to install a capacitor?
Capacitors are not necessary. If your lamp does not flicker, and the total power exceeds 5W, you do not need to install it. If your lamp is a smart dimming lamp, you need to install a capacitor.

4:Is this product a smart switch?
NO smart WI-FI switch.

5:How long does it take to send goods for a small order?
If it is a standard product, this store has stock, and the product can usually be sent within two days

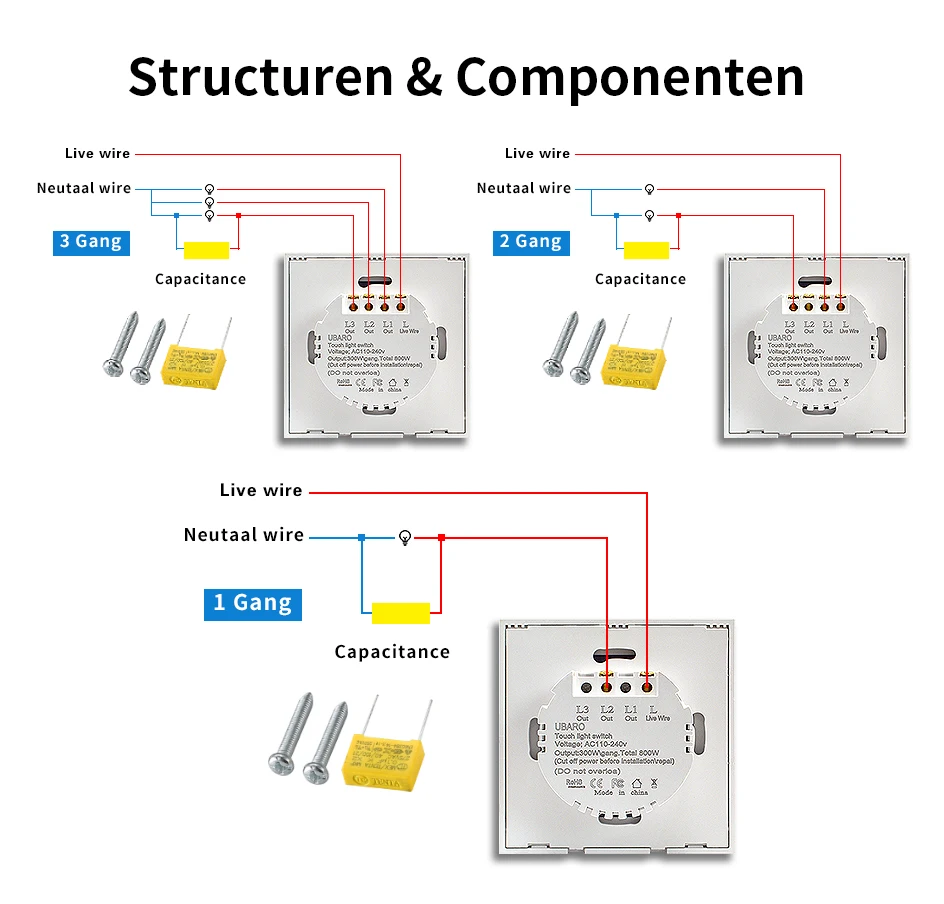

How to use capacitors

1、The power needs to be turned off during install/repair
2、 Please connect the “L” -220V live wire
3、 The lamp’s control Live wire connect ‘L1/L2/L3’ of the switch
4、The capacitor is connected in parallel between the live wire and the neutral wire of the lamp. If it is 2gang/3gang, the capacitor should be installed in the one of the smallest power of the lamp.

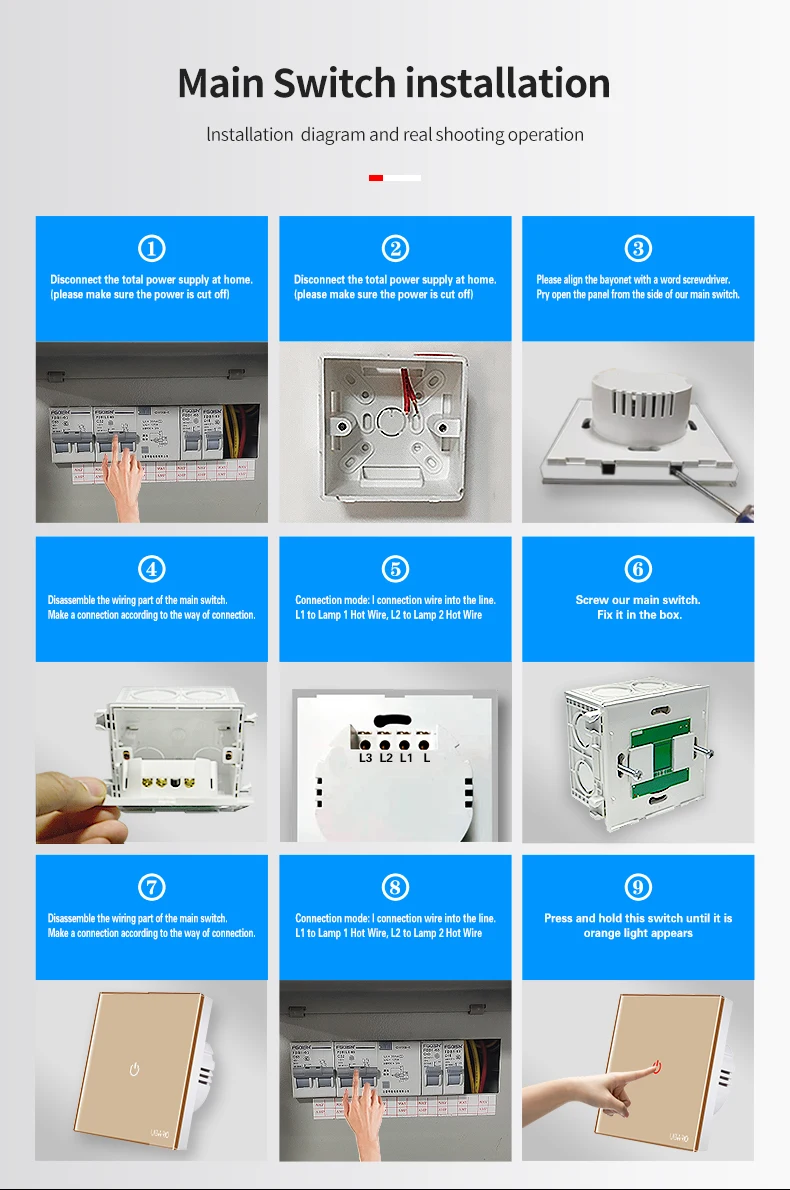

Switch installation video

Suitable type of lamps

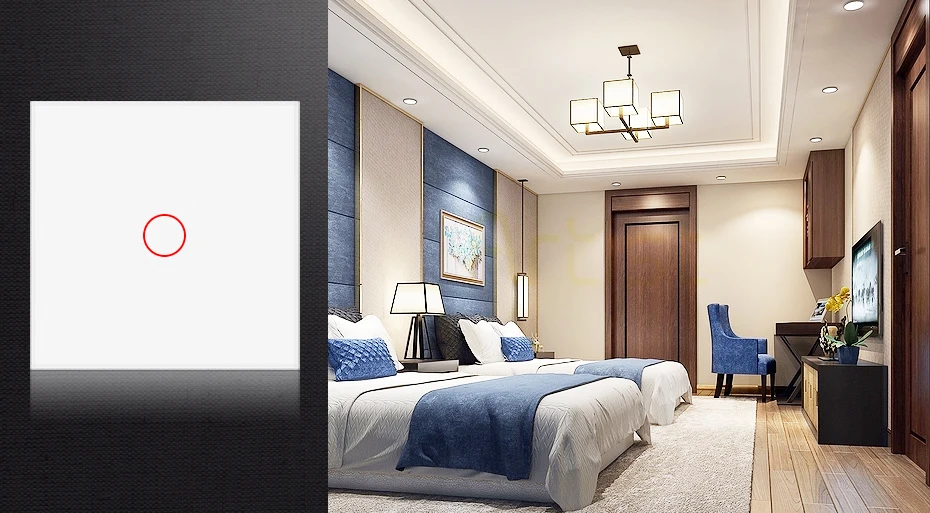

The installation effect of the switch is displayed, subject to the actual product

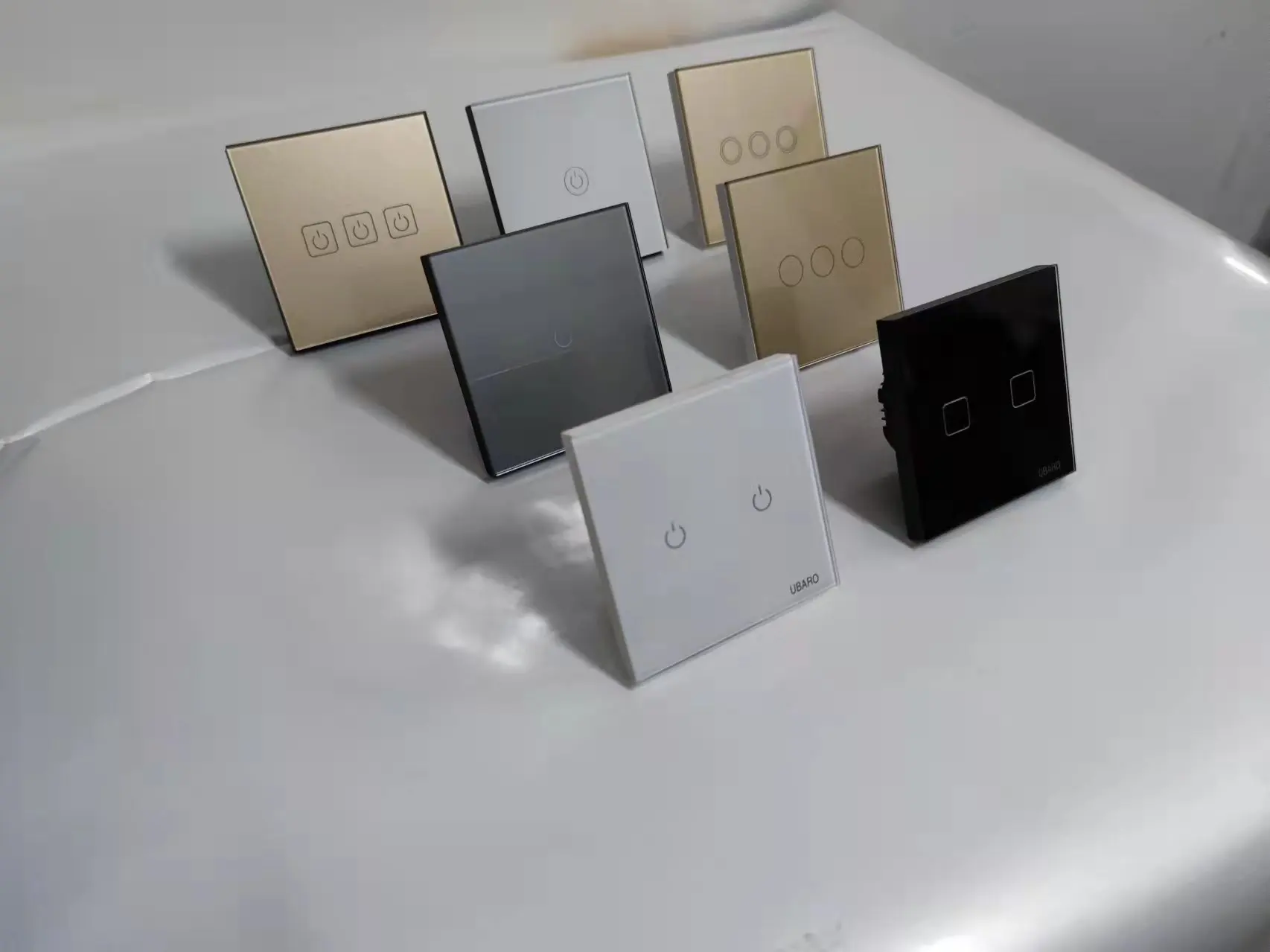

Mobile phone to take real pictures of products
