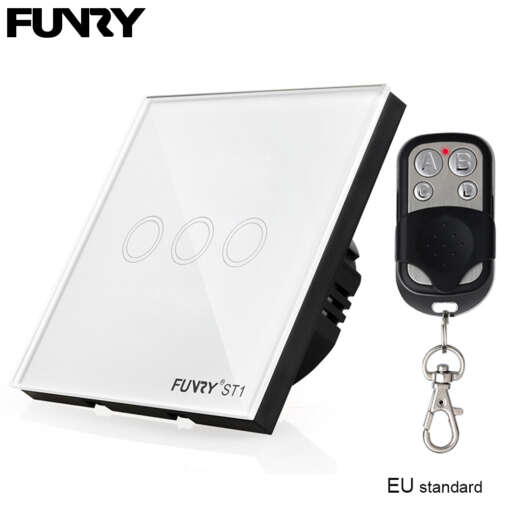

Kolme nupuga puutetundlik lüliti

Technology to change life, intelligent starting from me!

Crystal tempered glass panel without fading, stylish and elegant.
Integrated panel design, waterproof and anti-creep, safe to use.
New imported IC processor for good sensitivity and stable performance.
Touch control ensures longer life than the mechanical switch.

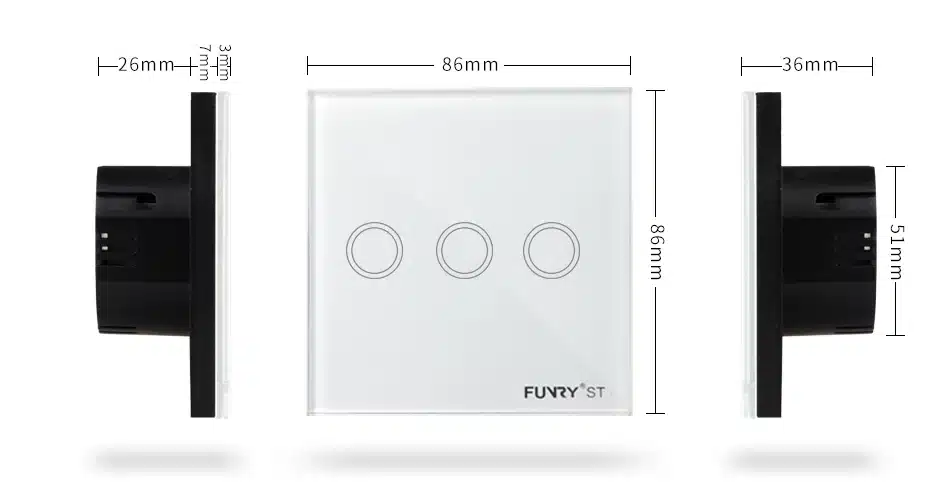

Size: 868636mm, Power: 170-240V

The main use of the EU Standard of the country: Most Europe Countries,Most African Countries,Most Middle East Countries,South Korea,Chile,Paraguay,etc.

Funry Images

Capacitive Touch

High Sensitivity to Simple Touch

Durability

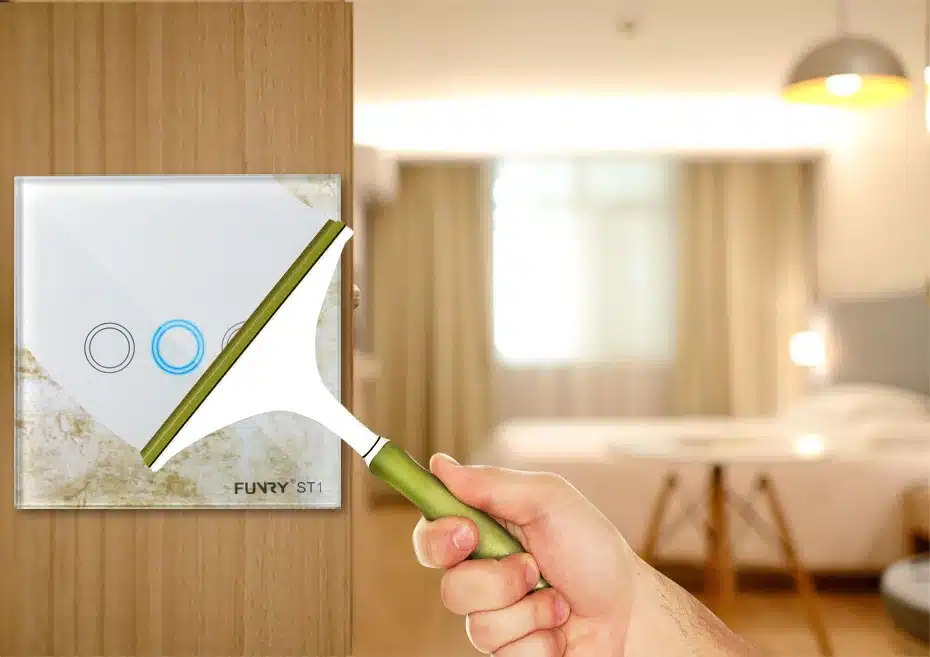

Tempered glass / Dirt proof / Easy maintenance / Does not fade over time

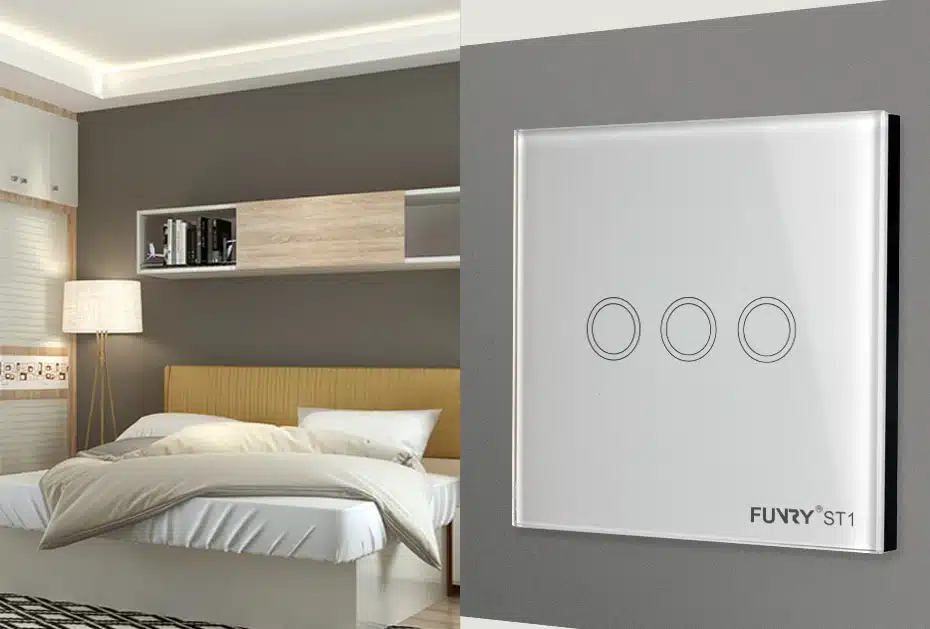

Does not fade / elegant / stylish

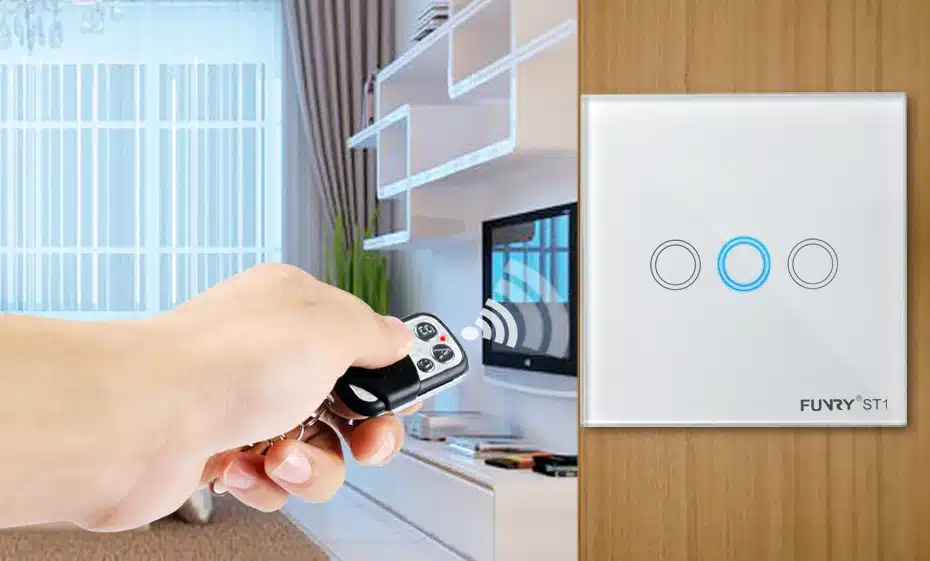

Intelligent Prmote Control

Remote control distance of up to 20 meters, convinient and practical

Exquisite Craftwork

Well polishen luxurious experience

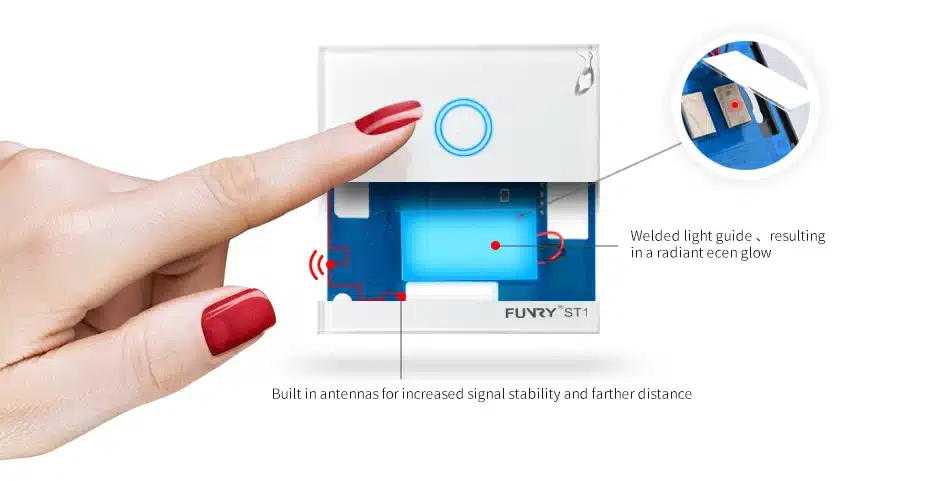

Light Quide

Large touch area, easy usage

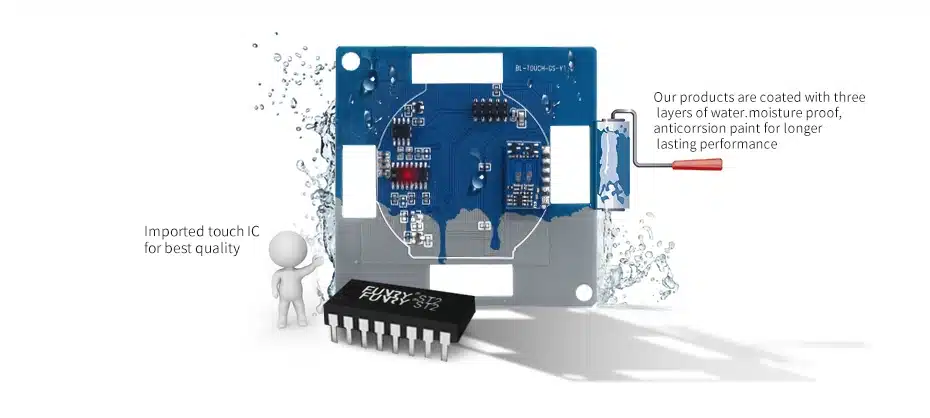

Newly imported IC

Processor is designed for high sensitivity and stable perfomance.

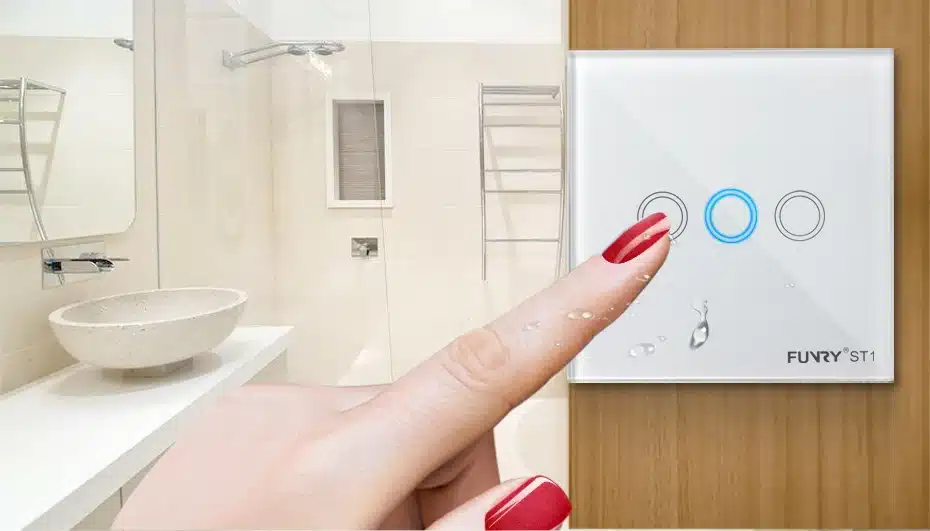

Integrated panel design, waterproof and extremely safe to use.

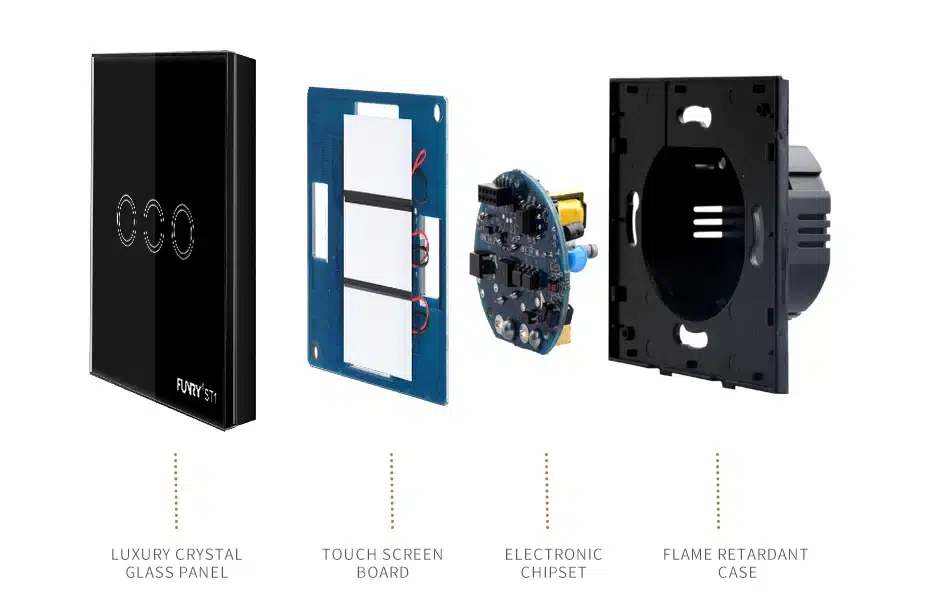

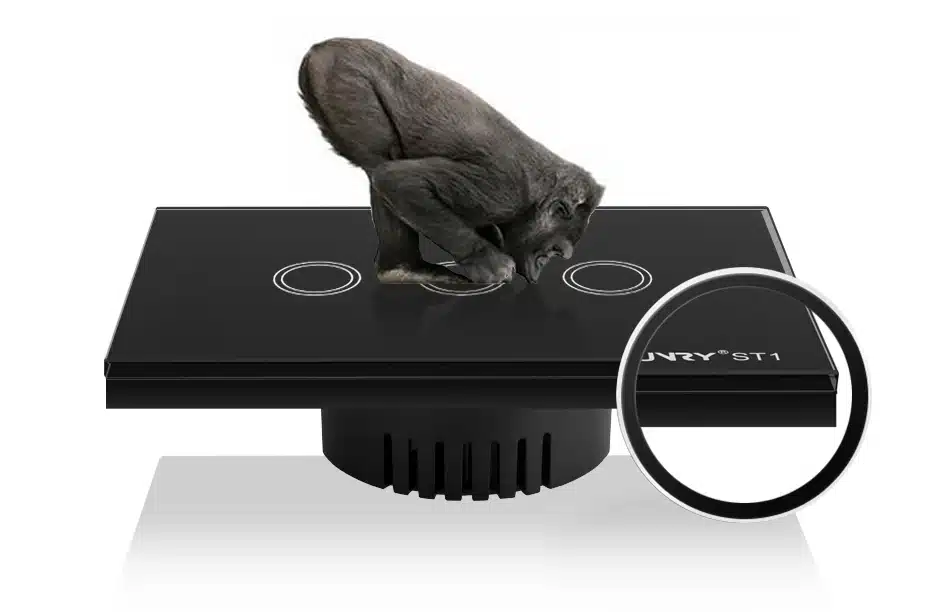

Structure The essense of beauty, through our design.

Single Live Wire Breakthrough super-low power consumption

Code Learning and Erase Function for remote ON/OFF switch 1. Learning a button On/Off Press and hold the touch button for a few seconds until you hear a beep and let go, and then press any button on the remote within 5 seconds. You can now pree that button for On/Off. 2.Learning a button for On Press and hold the touch button for a few seconds until you hear two beeps and let go, and then press any button on the remote within 5 seconds. You can now pree that button for on. 3.Learning a button for Off Press and hold the touch button for a few seconds until you hear three beeps and let go, and then press any button on the remote within 5 seconds. You can now pree that button for Off. 4.Clearing the codes Press the touch button for a few seconds until you hear four beeps and let go. The codes in the wall switch are now cleard . NOTE: Suitable for remote switch series

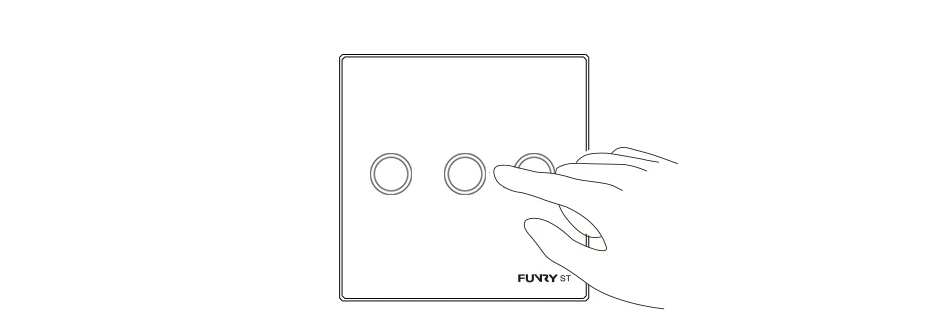

Schematic Of The Button The corresponding button on the panel

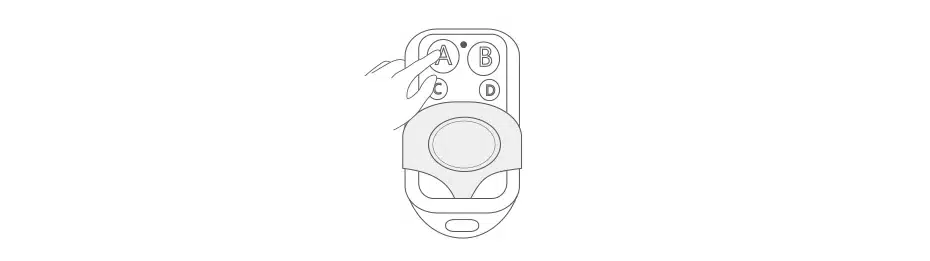

The corresponding keys on the remote control

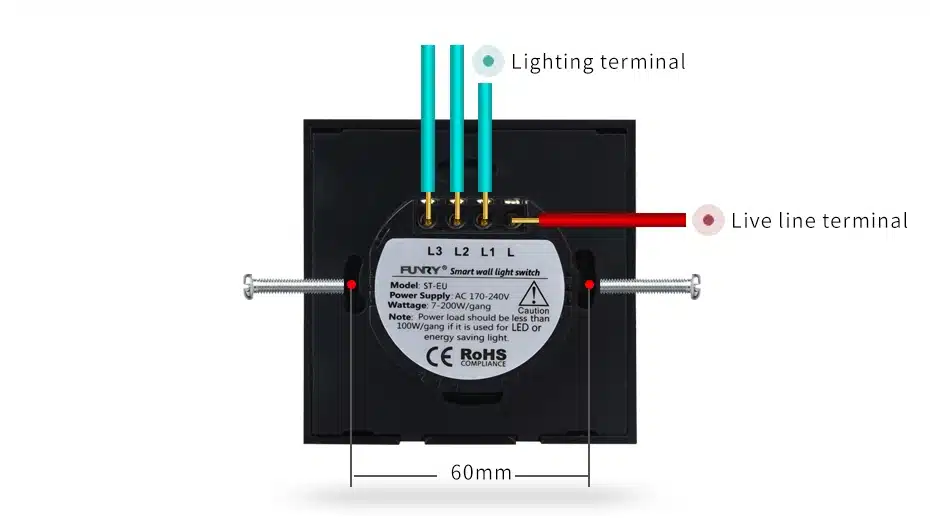

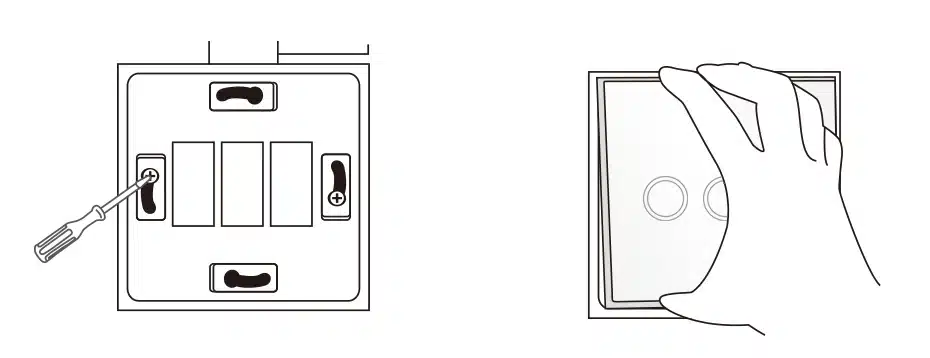

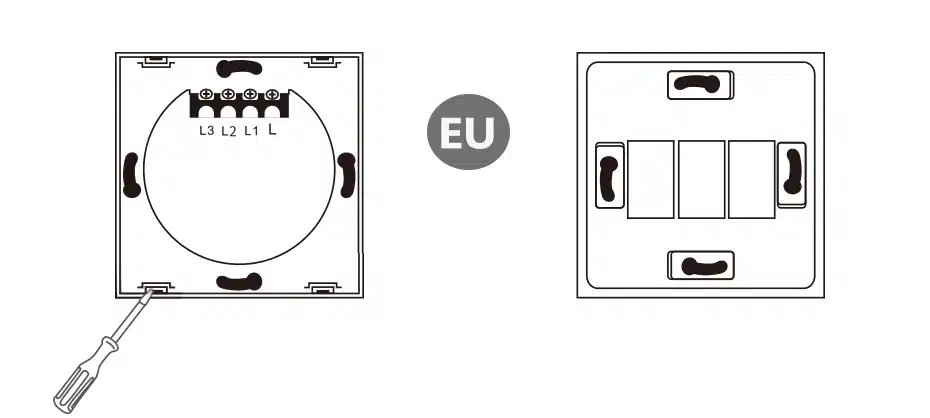

Wiring installation 1. Remove the panel with screwdriver Tear down the front panel as figure below.

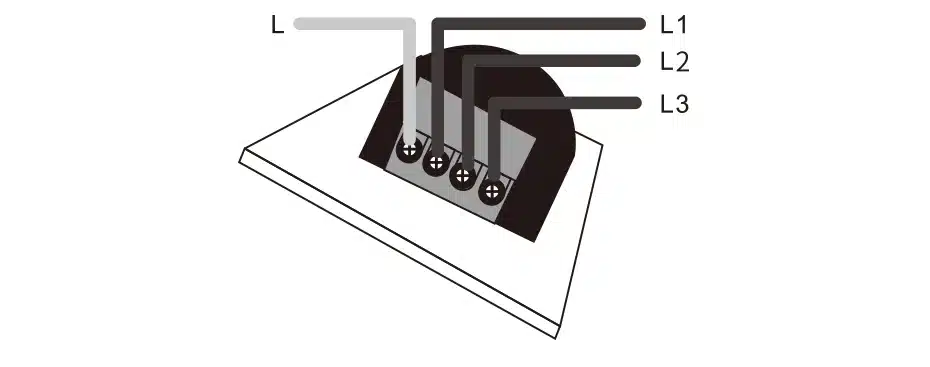

Connect the wire Connect live wire to L terminal. Connect neutral wire of light to light terminal(L2, L3, etc).

3.Install switch on the wall Place the switch on the wall; Install the front panel. Screw the both sides; Installation completes.

Package Includes

Funry Description

Product information

Brand	Funry
Model	ST1-EU-3R
Power Supply	170-240V
Wattage	7-200W/gang
Dimensions	868636mm
Chip	EV1527
Intelligent Module	RF433 MHz
Standard	EU standard
The main use of the EU Standard of the country	Most Europe Countries,Most African Countries,Most Middle East Countries,South Korea,Chile,Paraguay,etc.
Function	Surface waterproof, high temperature resistance, anti-corrosion
Material	Single crystal tempered glass panel
Warranty	1 year
Certification	CE, FCC, RoHS
Apply to	Incandescent Fluorescent lamp Energy saving lamp LED lights
Weight	0.2kg

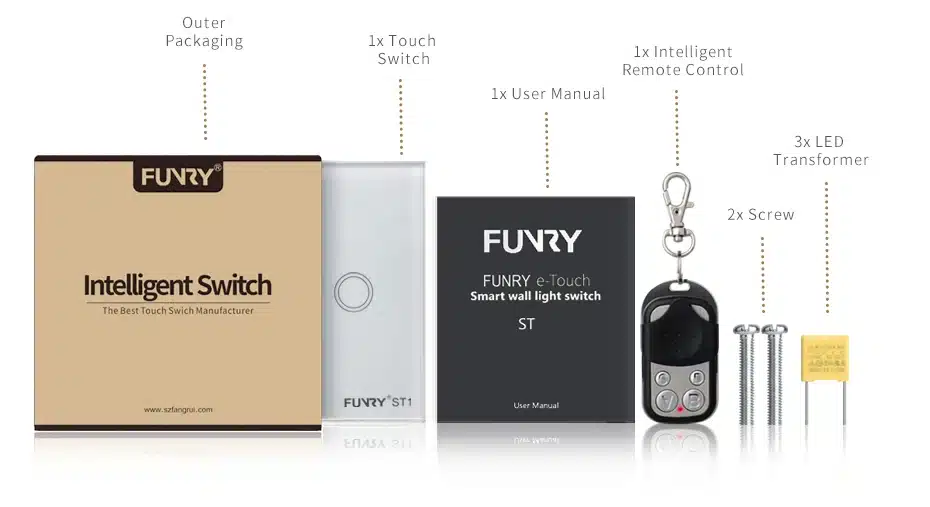

Package Contents
1×Touch Switch, 1×Remote control, 2×Screw, 2×LED Transformer,1×User Manual, 1×Outer Packaging.
