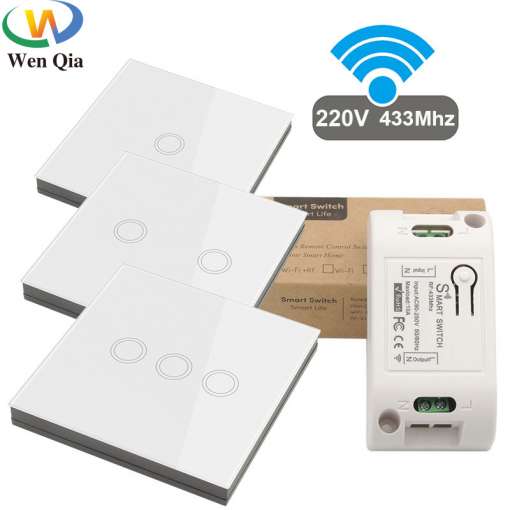

Valged puutetundlikud lülitid
- Is Smart Device: no
- Current: 10A
- Material: Plastic
- Remote Distance: up to 50m (theoretical distance)
- Features: light switch/touch button/smart switch/Fluorescent switch
- Model Number: 2201D touch switch remote on off
- Switch Type: Remote Control
- Warranty: 1 year
- Certification: CCC,ce,ROHS
- Brand Name: WenQia
- Item Type: Switches
- Working Voltage: AC 90V-250V
- Max Current: 10A
- item type: switches
- Control model: Momentary Toggle Latched Mode
- Application location: Home, Farm, Factory, Office, Supermarkets and so on
- Application 1: Led Light Lamp Bulb Switch, Home Security Alarm System
- Application 2: water heaters, Fan, Fish tank, Diy Home electrical equipment and other
- Application 3: Fluorescent strip design, luminous
- remote distance: up to 50m (theoretical distance)
- Receiving Sensitivity: 97dbm
- Modulation Mod: ASK
- Working temperature: -30 ~ +80
- Shell: Yes
- Switch size: 86*86
- frequency: 433 mhz
There are various combinations in the options, which are convenient to use, please purchase according to actual needs.
Simple to use

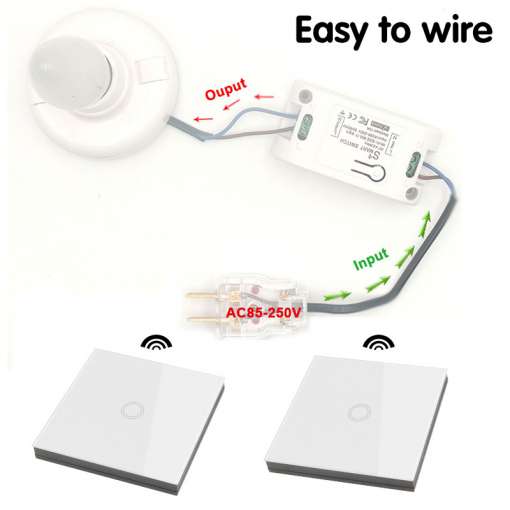

How to connect
How to get the signal
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
Product Application Area Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain Water pump Fan Lamp LED light bulb ventilation device Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children
Features:
1:Convenient to use, place anywhere you want
— Screw + double-sided adhesive installation
2:Multi switches Control
–One/Multi Lights Receiver in the meanwhile

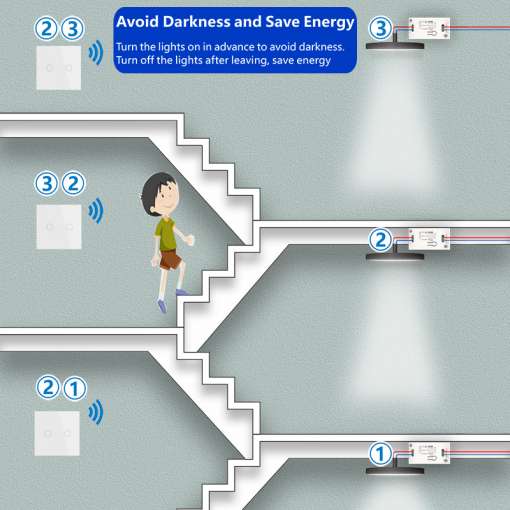

3:Avoid Darkness and Save Energ
—Set the remote control at different locations to quickly turn on or off the lights.
—Turn the lights on in advance to avoid darkness,
Turn off the lights after leaving, save energy.
5:More convenient remote control
— When you wake up at anytime, the wall panel switch is more convenient.and it will not distrube babies and other family members.

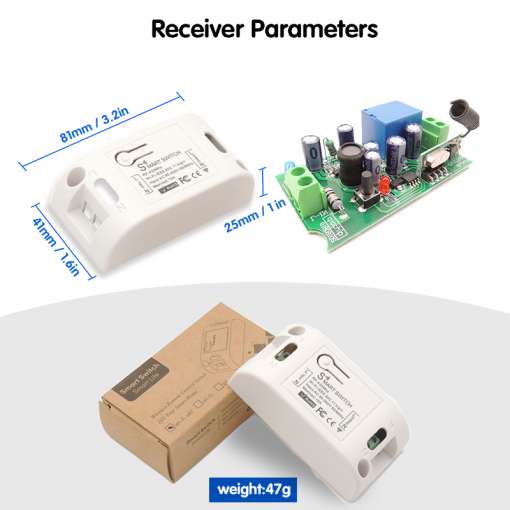

Relay Receiver Board Parameter
Current: 10mA
–RF frequency : 433MHz
–Support encoding : 1527 Leaning code
–Transmitting range : Open space is more than 50 meters
–Battery : 27A 12V ( NO Battery include )
–Panel fluorescence : Yes
–Featrues:Luminous / Waterproof / scratch resistant
Remote controller Transmitter Parameter
–RF frequency : 433MHz
—Support encoding : 1527 Leaning code
—Transmitting range : Open space is more than 50 meters
–Battery : 2pcs * CR2016 ( include )
High quality

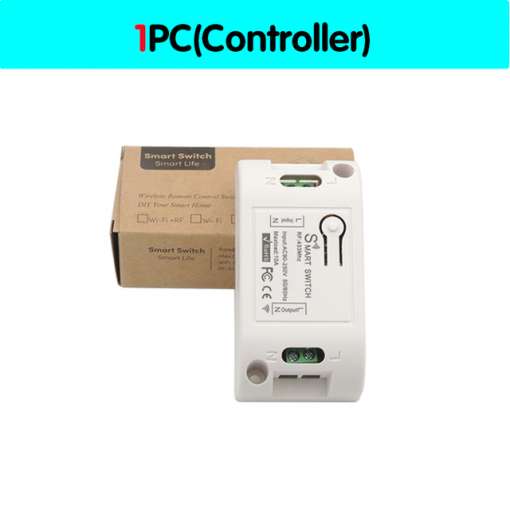

Relay Reciever ( include shell )
